| M8 Howitzer Motor Carriage. |
The 75 mm Howitzer Motor Carriage M8 was a self-propelled howitzer vehicle of the United States developed during World War II.
The first design for a close support howitzer on an M5 tank chassis was the T41, which had the howitzer in the hull front. This did not progress past the mock-up stage as the crew would not have been sufficiently protected and design work started on the T47. It was developed on the chassis of the then-new Light Tank M5 (Stuart VI). The prototype was designated the 75 mm Howitzer Motor Carriage T17E1 It had the standard M5 turret removed and replaced with a larger open-topped turret; as a result, the drivers' hatches had to be moved from the hull roof to the glacis plate. After a mock-up had been produced, it was ordered into production as the 75 mm Howitzer Motor Carriage M8. The M8 was based upon the Light Tank M5, but incorporated several changes. Like the Light Tank M5, the M8 had a crew of four; commander, gunner, driver, and assistant driver/loader. When the M8 was in action, the commander positioned himself at the antiaircraft machine gun and directed his crew, the gunner sat in the turret on the right side of the howitzer, the assistant driver/loader moved up from his seat in the right front hull, and the driver stayed at his position.
Due to the usage of a new turret, the crew hatches in the hull roof for the driver and assistant driver/loader were deleted and replaced by a pair of vision flaps in the glacis. Since the glacis hatches were too small to disembark through, these two crew members had to leave the vehicle through the open-topped turret. The driver and assistant driver/loader were provided with periscopes for visibility. In November 1944, the Ordnance Department gave the M8 the name General Scott, after American general Winfield Scott.
As the M8 was based upon the Light Tank M5 (itself a descendant of the Light Tank M3) it had relatively thin armor. The lower hull armor ranged from 1 in (25 mm) to 1.125 in (28.6 mm) on the sides to 1.75 in (44 mm) on the lower front and 1.0 in (25 mm) on the lower rear. The lower hull sides were vertical, while the lower hull front was sloped at 18 degrees from the vertical, and the lower hull rear, which protected the engine and radiator, was sloped at 17 degrees from the vertical. The hull floor ranged from 0.5 in (13 mm) thick at the front to 0.375 in (9.5 mm) thick at the rear. The glacis plate of the M8 was sloped at 45 degrees from the vertical and was 1.125 in (28.6 mm) thick. The upper hull sides, like the lower hull sides, were vertical and 1.125 in (28.6 mm) thick at the front, thinning to 1 in (25 mm) thick at the rear. The upper rear hull was a vertical plate, 1 in (25 mm). The plate sloped at 50 degrees for a short distance before it met the hull roof, which was uniformly 0.5 in (13 mm) thick, and flat.
The turret of the M8 was of cast steel. It was 1.5 in (38 mm) thick at the front, which was rounded, sloping from 0 to 63 degrees from the vertical. The sides and rear were 1 in (25 mm) thick and sloped at 20 degrees from the vertical. The cast gun shield which covered the barrel of the 75 mm Howitzer M2/M3 was 1.5 in (38 mm) thick and rounded.
The armament of the M8 consisted of a new open-topped turret armed with a 75 mm M2 howitzer, later a 75 mm M3 howitzer. The M8 carried 46 rounds of 75 mm ammunition; 11 rounds at the right rear of the fighting compartment, 20 rounds at the left rear of the fighting compartment, 9 rounds in the left hull sponson, and 6 "ready" rounds stored between the driver and assistant driver's positions. The most common types of ammunition carried were the M89 white phosphorus shell and the M48 high explosive shell. Unlike the standard M5 light tank, the M8 featured no hull-mounted or coaxial Browning M1919A4 .30 caliber machine gun. A Browning M2HB .50 caliber machine gun with 400 rounds was mounted on the right rear corner of the turret for local defense and anti-aircraft purposes. For self-defense, the vehicle driver was provided with a Thompson submachine gun, while the other three crew members were issued M1 carbines.
1,778 of the Howitzer Motor Carriage M8 were produced by the Cadillac division of General Motors from September 1942 to January 1944.
Production of M8 Howitzer Motor Carriage
|
Month |
Number built |
Serial number(s) |
Registration number(s) |
|
September 1942 |
1 |
1 |
4051234 |
|
October 1942 |
24 |
2-25 |
4051235-4051258 |
|
November 1942 |
101 |
26-126 |
4051259-4051359 |
|
December 1942 |
247 |
127-373 |
4051360-4051606 |
|
January 1943 |
160 |
374-533 |
4051607-4051766 |
|
February 1943 |
160 |
534-693 |
4051767-4051927 |
|
March 1943 |
160 |
694-853 |
4051928-4052086 |
|
April 1943 |
160 |
854-1013 |
4052087-4052246 |
|
May 1943 |
160 |
1014-1173 |
4052247-4052406 |
|
June 1943 |
160 |
1174-1333 |
4052407-4052566 |
|
July 1943 |
62 |
1334-1395 |
4052567-4052628 |
|
August 1943 |
62 |
1396-1457 |
4052629-4052690 |
|
September 1943 |
62 |
1458-1519 |
4052691-4052752 |
|
October 1943 |
62 |
1520-1581 |
4052753-4052814 |
|
November 1943 |
62 |
1582-1643 |
4052815-4052876 |
|
December 1943 |
60 |
1644-1703 |
4052877-4052938 |
|
January 1944 |
75 |
1704-1778 |
4052939-4053011 |
|
Total |
1,778 |
The 75 mm Howitzer Motor Carriage M8 was assigned to the Assault Gun Troops of Cavalry Reconnaissance Squadrons in order to give them close support against enemy fortified positions. The high elevation (40 degrees) of the howitzer was useful for hitting enemies emplaced on the sides of hills. The M8 was used in the Italian Campaign, the Western Front, and in the Pacific Theater of Operations by the US Army and on the Western Front by the French Army. It was also used by the French Union and State of Vietnam during the First Indochina War. It stayed in French service until the 1960s and saw service in Algeria.
Type: Self-propelled artillery
Place of origin: United States
In service: 1942-1960s
Designer: U.S. Army Ordnance Department
Designed: 1942
Manufacturer: Cadillac division of General Motors
Produced: September 1942–January 1944
Number built: 1,778
Weight: 34,600 lb (15.69 metric tons) combat weight
Length: 16 ft 4 in (4.98 m) with sand shields
Width: 7 ft 7.5 in (2.32 m) with sand shields
Height: 8 ft 11 in (2.72 m) over antiaircraft machine gun
Crew: 4 (Commander, gunner, driver, assistant driver/loader)
Armor: 0.375 to 1.75 in (9.5 to 44 mm)
Main armament: 75 mm Howitzer M2/M3 in Mount M7; 46 rounds
Secondary armament: .50 caliber (12.7 mm) Browning M2HB machine gun; 400 rounds
Engine: Twin Cadillac Series 42 inline 6 cylinder 4-stroke gasoline engine; 220 hp (164 kW) total at 3,400 rpm; 110 hp (82 kW) per engine
Power/weight: 14.02 hp/metric ton
Transmission: Twin Hydramatic; 4 speeds forward, 1 reverse
Suspension: Vertical volute spring suspension (VVSS)
Ground clearance: 14 in (0.35 m)
Fuel capacity: 89 US gallons (340 liters)
Operational range: 100 mi (160 km) on road
Speed: 36 mph (58 kph) on road
Steering system: Controlled differential, steering levers
Variants
75 mm Gun Motor Carriage M8A1: A lightweight tank destroyer prototype that used an M5A1 light tank hull. The M8's turret was paired with a 75 mm gun M3 as used on the M4 Sherman tank. The project was later cancelled with the development of the M18 Hellcat.
Users
United States: U.S. Army
France: French Army
South Vietnam: Army of the Republic of Vietnam (ARVN)
Cambodia: Khmer National Army (FANK)
Kingdom of Laos: Royal Lao Army
Republic of China: Republic of China Army (ROCA)
Tunisia: Tunisian Army
 |
| M8 75mm Howitzer Motor Carriage, General Motors Proving Ground, 4 November 1943. |
 |
| M8 75mm Howitzer Motor Carriage, General Motors Proving Ground, 4 November 1943. |
 |
| Schematic cutaway view of the 75mm Howitzer Motor Carriage M8. |
 |
| Diagram of 75mm and .50 cal. ammunition storage in the 75mm Howitzer Motor Carriage M8. |
 |

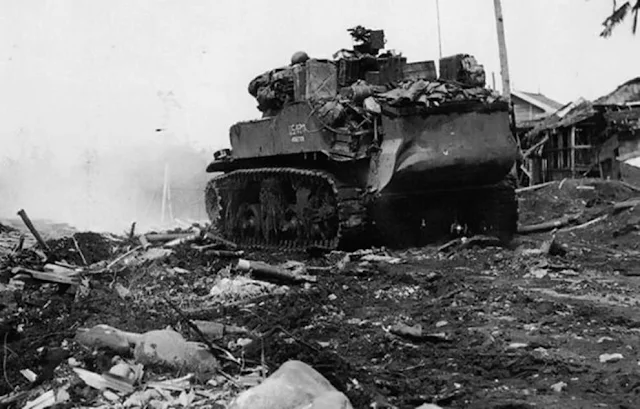

| Knocked out M8 Howitzer Motor Carriage M8 being retrieved by wrecker. |
 |
| M8 Howitzer Motor Carriage, Philippines. |
 |
| M8 Howitzer Motor Carriage, Philippines. |
 |

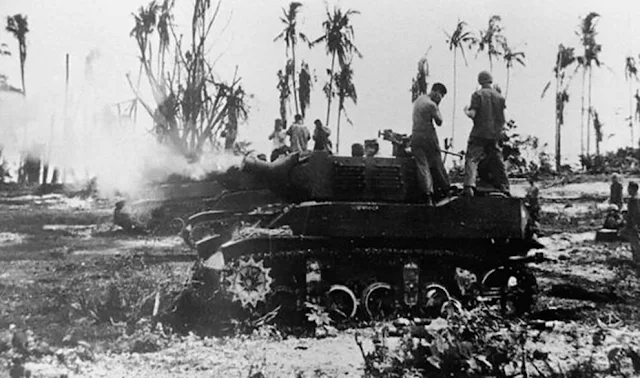

| M8 Howitzer Motor Carriage on Saipan, June 1944. |
 |
| M8 Howitzer Motor Carriage, 113th Cavalry Reconnaissance Squadron, Belgium, September 1944. The nearest vehicle has a hedgerow cutter installed. |
 |
| M8A1 Howitzer Motor Carriage re-armed with M3 75mm Gun. |
 |

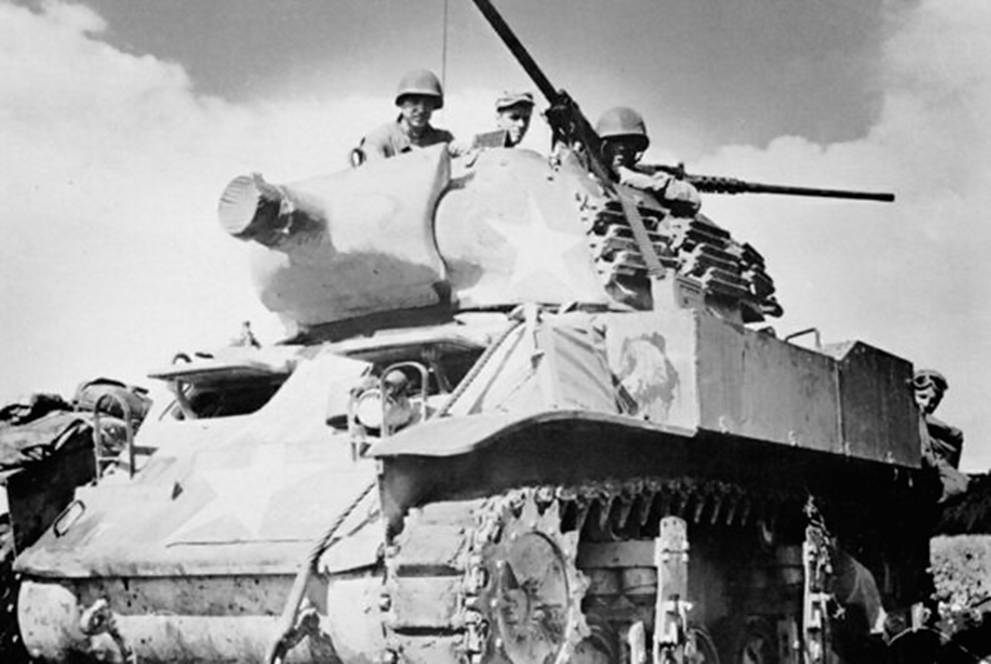

| M8 Howitzer Motor Carriage. |
 |
| The drivers' doors in the hull front plate are obvious in this M8 Howitzer Motor Carriage; the drivers had periscopes in the hull roof as well for driving while buttoned up. The 75mm howitzer was covered by a long flash deflector, and the muzzle of the howitzer barrel can be seen down inside the flash hider. This vehicle is equipped with sand shields and brackets for stowing track grousers on the turret, which indicate it's a later production. The mount for the .50 cal M2HB MG can be seen towards the rear of the open-topped turret, although the gun itself is absent. |
 |
| This top view shows the internal arrangements of the open-topped turret of the M8 Howitzer Motor Carriage. |
 |
| The dual drivers' controls of the M8 Howitzer Motor Carriage. |
 |
| Details of the firing controls on the M8 Howitzer Motor Carriage. |
 |

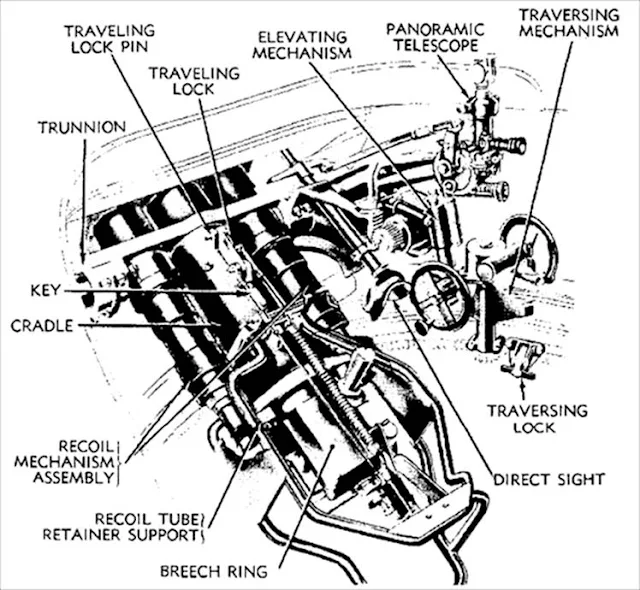

| Details of the breech end of the howitzer and its mount on the M8 Howitzer Motor Carriage. |
 |
