The M1 mortar is an American 81 millimeter caliber mortar. It was based on the French Brandt mortar. The M1 mortar was used from before World War II until the 1950s when it was replaced by the lighter and longer ranged M29 mortar.
General Data
Type: Infantry mortar
Place of origin: United States
In service: 1935–1952
Used by:
United States
Vietnam
Other users
Wars:
World War II
Korean War
Algerian War
Vietnam War
Nicaraguan Revolution
Salvadoran Civil War
Weight:
Tube 44.5 lb (20 kg)
Mount 46.5 lb (21 kg)
Base plate 45 lb (20 kg)
Total 136 pounds (62 kg)
Length: 3 ft 11 in (1.19 m)
Crew: 8 (squad leader, gunner, assistant gunner, 5 ammunition bearers)
Caliber: 81 mm (3.2 in)
Rate of fire:
18 rpm sustained
30-35 rpm maximum
Muzzle velocity: 700 ft/s (210 m/s)
Maximum firing range: 3,300 yd (3,000 m)
Sights: M4
Ammunition
M43A1 light HE: 7.05 lb (3.20 kg); HE filling 1.22 lb (0.55 kg); range min 100 yd (91 m); range max 3300 yd (zone 7, 3018 m); 80% frag radius 25 yd (23 m) (compared favorably with the 75 mm howitzer). M52 superquick fuze (explode on surface).
M43A1 light training: an empty version of the M43A1 light HE with an inert fuze. It was used as a training shell until it was replaced by the M68 training practice shell.
M45 heavy HE: 15.10 lb (6.85 kg); HE filling 4.48 lb (2.03 kg); range max 1275 yd (zone 5, 1166 m); bursting radius comparable to the 105 mm howitzer. Equipped with M45 (super quick/delay action selective) or M53 (delay action only) P.D. fuze.
M56 heavy HE: 10.77 lb (4.86 kg); HE filling 4.31 lb (1.96 kg); range max 2655 yd (zone 5, 2428 m), standard for issue and manufacture shell replacing M45. It used the M53 fuze back in 1944, but it was at some point replaced by the M77 Timed Super Quick (TSQ) fuze.
M57 WP (white phosphorus) "bursting smoke": 10.74 lb (4.87 kg); range max 2470 yd (2260 m); designed to lay down screening smoke, but had definite anti-personnel and incendiary applications.
M57 FS (a solution of sulfur trioxide in chlorosulfonic acid) chemical smoke: 10.74 lb (4.87 kg), range max 2470 yd (2260 m); laid down dense white fog consisting of small droplets of hydrochloric and sulfuric acids. In moderate concentrations, it is highly irritating to the eyes, nose, and skin.
M68 training practice: 9.50 lb to 10.10 lb. An inert teardrop-shaped cast iron shell without provision for a fuze well that was used to simulate the M43 light HE shell. The casing on early models was painted black but post-World War 2 versions are painted blue. It came in 9 different weights (engraved on the shell) to allow it to simulate shell firing with and without booster charges. Weight zone one (9.5 lbs.) simulated a shell with the maximum of 8 booster charges and weight zone nine (10.10 lbs.) simulated the shell being fired without booster charges.
M301 illuminating shell: range max 2200 yd (2012 m); attached to parachute; burned brightly (275,000 candelas) for about 60 seconds, illuminating an area of about 150 yards (137 m) diameter. It used the M84 time fuze, which was adjustable from 5 to 25 seconds before priming charge detonated, releasing the illuminator and chute.
Fuzes
The M1 mortar's shells sometimes used the same fuzes as the shells for the M2 60 mm mortar. An adapter collar was added to the smaller fuzes to allow them to fit the larger shells.
M43 mechanical timing (MT) fuze: clockwork timed delay fuze. Models M43A5.
M45 point detonating (PD) fuze: selective fuze that could be set for time delay or super-quick (less than a second) detonation on impact. Replaced by the M52 and M53 fuzes.
M48 point detonating (PD) fuze: selective powder train burning fuze that can be set to super quick or delay ignition on impact. The factory pre-set delay time was stamped on the shell body. If the super-quick flash ignition failed, the delay fuse kicked in. If set on delay, the super-quick flash igniter mechanism was immobilized to prevent premature ignition. Models: M48, M48A1, M48A2 (either 0.05 or 0.15 second Delay), & M48A3 (0.05 second delay).
M51 point detonating (PD) fuze: selective powder train burning fuze that can be set to super quick or delay ignition after impact. It is a modification of the M48 fuze with the addition of a booster charge. Models: M51A4, M51A5 (M48A3 Fuze with M21A4 booster).
M52 point detonating super-quick (PDSQ) fuze: super-quick fuze that activates less than a second after impact. The pre-war M52 was made of aluminum, the M52B1 model was made of Bakelite, and the M52B2 model had a Bakelite body and an aluminum head; the suffix would be added to the shell designation.
M53 point detonating delay (PDD) fuze: delay fuze that activates after impact.
M54 time and super-quick (TSQ) fuze: powder train burning fuze that can be set for time delay (slow burn) or super-quick (flash ignition) detonation on impact.
M77 time and super quick (TSQ) fuze: powder train burning fuze that can be set for time delay (slow burn) or super-quick (flash ignition) detonation on impact.
M78 concrete penetrating (CP) fuze: delay fuze that was set off after the shell had impacted and buried itself to increase the damage done.
M84 mechanical timing (MT) fuze: clockwork fuze that can be set from 0 to 25 seconds in 1-second intervals; seconds were indicated by vertical lines and 5-second intervals were indicated by metal bosses to allow it to be set in low-light or night-time conditions.
M84A1 mechanical timing (MT) fuze: clockwork fuze that can be set from 0 to 50 seconds in 2-second intervals.
Users
It may be found in nearly all the non-Communist countries, including:
Austria: used on M21 mortar motor carriage
Belgium: made under license
Republic of China
Colombia
Dominican Republic
El Salvador
Ethiopia
France
Greece
Guatemala
Haiti
Honduras
Japan
Laos
Libya
Mexico
Myanmar: M-43
South Korea: The Armed Forces was equipped with 386 M1s before the Korean War, and 822 were in service with the Army by the end of the war. Began replacing with M29A1 or KM29A1 in 1970s.
Turkey
Thailand
United States
Uruguay
South Vietnam
North Vietnam
Vietnam
 |
| US Army 81mm mortar crew in jungle. Position of mortar tube almost vertical indicates enemy is very close. |
 |

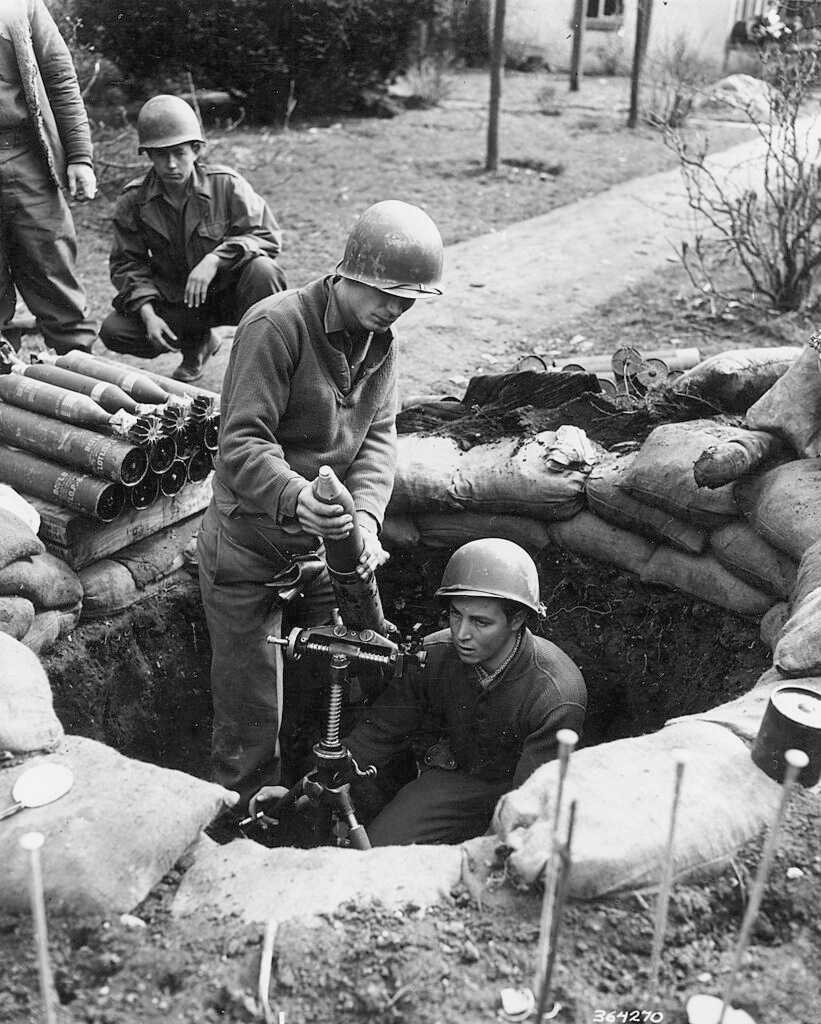

| Original caption: "Members of a Negro mortar company of the 92nd Division pass the ammunition and heave it over at the Germans in an almost endless stream near Massa, Italy. This company is credited with liquidating several machine gun nests..." circa November 1944. (US National Archives 208-AA-47U-6) |
 |

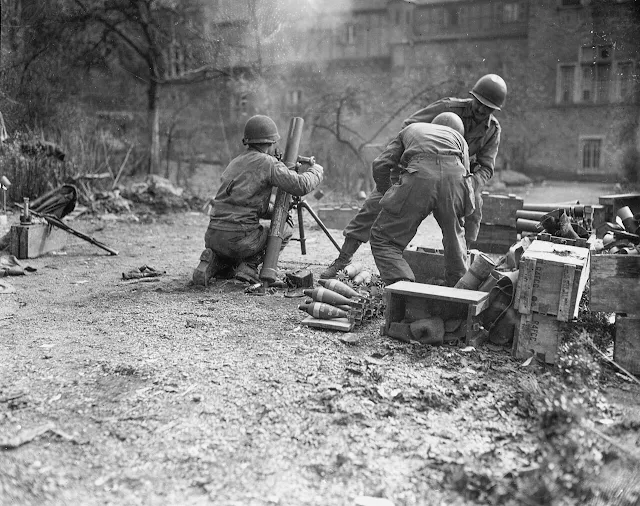

| Original caption: "Getting across the Rhine wasn't all there was to it. There was the little matter of establishing a beachhead. We threw our mortars at them and everything else we had until they finally gave way." 1945. (US National Archives 208-YE-133) |
 |

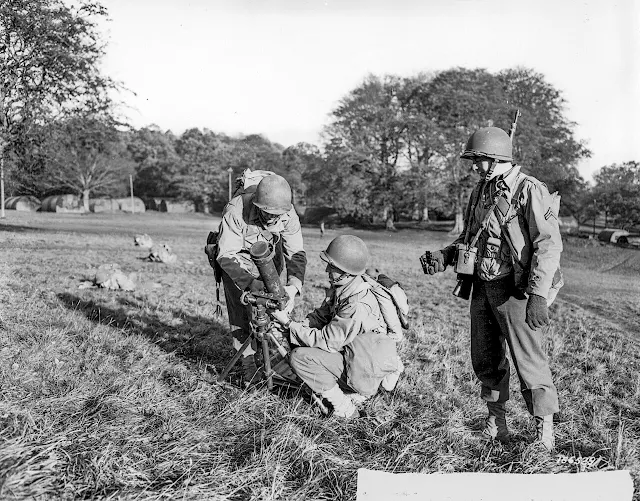

| Original caption: How 81mm mortar observers work, is demonstrated by SSGT Glenn K. Keller, left, and PFC Virgil Williams using binoculars and phone, near Oberwampach, Luxembourg. Both Men are with Co. D, 358th Inf. Regiment, 90th Infantry Division, January 25, 1945. (US National Archives 111-SC-330445) |
 |
| Original caption: High up on a knoll commanding enemy positions on the island of Mindanao, P.I., the crew of an 81 mm mortar from one of the 162nd Infantry's Heavy Weapons Companies start to lay down mortar barrage in support of the troops of the 162nd Infantry, 41st Infantry Division advancing against Japanese in that area. (US National Archives 111-SCA-Album 2975 066) |
 |
| Members of the 504th Parachute Infantry Regiment prepare to fire an 81mm mortar during the battle for Italy. |
 |

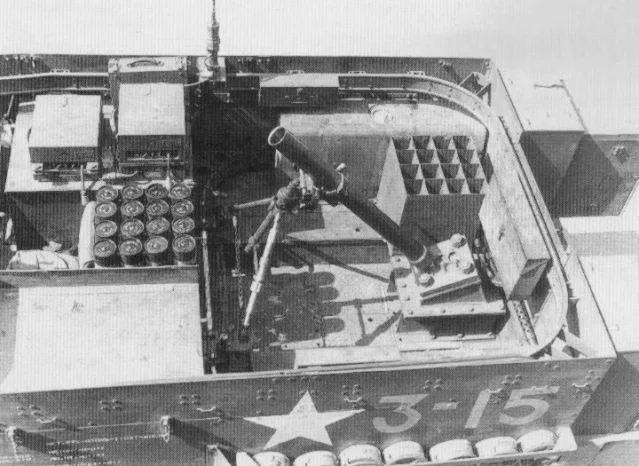

| 81mm Mortar Carrier M4 of 41st Armored Infantry, 2nd Armored Division, in April 1944. The vehicle was modified so that the mortar will fire in forward direction. April 1, 1944. |
 |
