| Wrecked Mitsubishi Ki-46. |

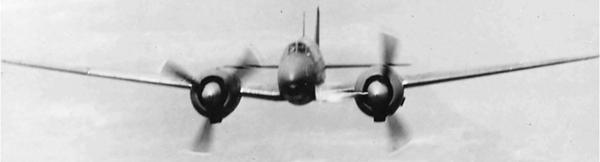

The Mitsubishi Ki-46
was a twin-engine reconnaissance aircraft used by the Imperial Japanese Army in
World War II. Its Army Shiki designation was Type 100 Command Reconnaissance
Aircraft; the Allied nickname was “Dinah.”
On 12 December 1937,
the Imperial Japanese Army Air Force issued a specification to Mitsubishi for a
long-range strategic reconnaissance aircraft to replace the Mitsubishi Ki-15.
The specification demanded an endurance of six hours and sufficient speed to
evade interception by any fighter in existence or development, but otherwise
did not constrain the design by a team led by Tomio Kubo (a 1931 graduate from
the Aeronautical Section of the Faculty of Engineering at Tokyo Imperial
University) whose aesthetics are densely infused to this elegant aircraft.

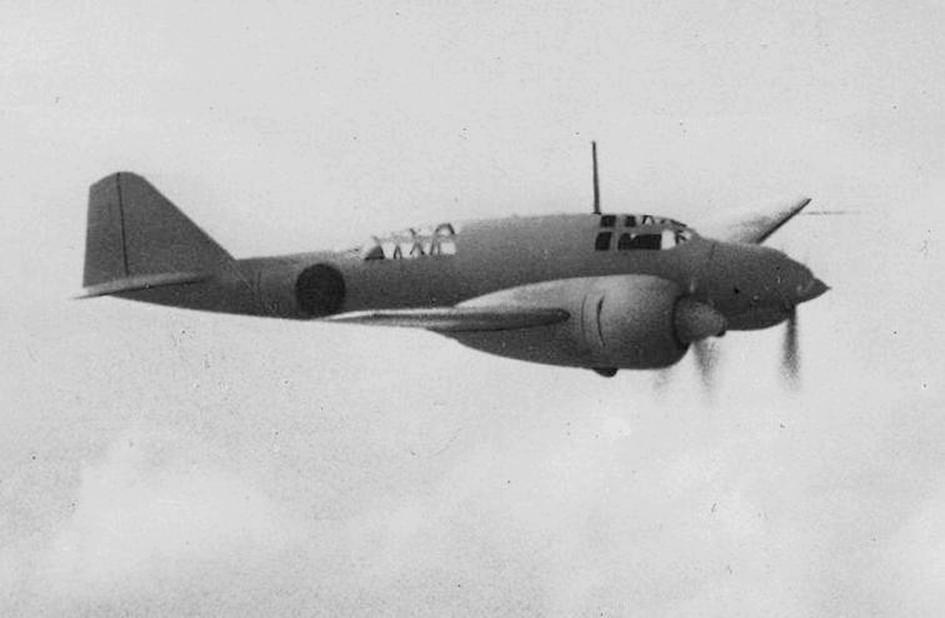

The resulting design
was a twin-engined, low-winged monoplane with a retractable tailwheel
undercarriage. It had a small diameter oval fuselage which accommodated a crew
of two, with the pilot and observer situated in individual cockpits separated
by a large fuel tank. Further fuel tanks were situated in the thin wings both
inboard and outboard of the engines, giving a total fuel capacity of 1,490 L
(328 imperial gallons). The engines, two Mitsubishi Ha-26s, were housed in
close fitting cowlings developed by the Aeronautical Research Institute of the
Tokyo Imperial University to reduce drag and improve pilot view.
The first prototype
aircraft, with the designation Ki-46, flew in November 1939 from the Mitsubishi
factory at Kakamigahara, Gifu, north of Nagoya. Tests showed that the Ki-46 was
underpowered, and slower than required, only reaching 540 km/h (336 mph) rather
than the specified 600 km/h (373 mph). Otherwise, the aircraft tests were successful.
As the type was still faster than the Army’s latest fighter, the Nakajima
Ki-43, as well as the Navy’s new A6M2, an initial production batch was ordered
as the Army Type 100 Command Reconnaissance Plane Model 1 (Ki-41-I).
To solve the
performance problems, Mitsubishi fitted Ha-102 engines, which were Ha-26s
fitted with a two-stage supercharger, while increasing fuel capacity and
reducing empty weight to give the Ki-46-II, flying in March 1941. This met the
speed requirements of the original specification, and was ordered into
full-scale production, with deliveries starting in July.

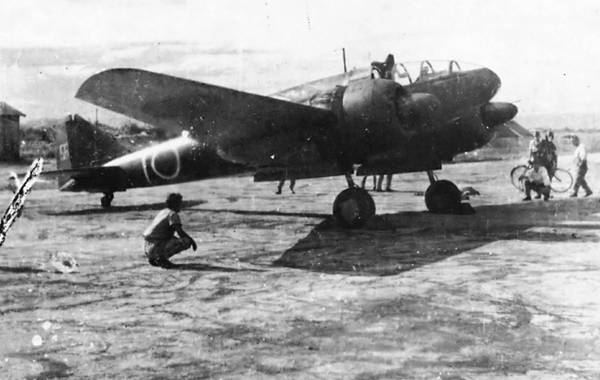

Although at first the
Ki-46 proved almost immune from interception, the Imperial Japanese Army Air
Force realized that improved Allied fighters such as the Supermarine Spitfire
and P-38 Lightning could challenge this superiority, and in July 1942, it
instructed Mitsubishi to produce a further improved version, the Ki-46-III.
This had more powerful, fuel-injected Mitsubishi Ha-112 engines, and a
redesigned nose, with a fuel tank ahead of the pilot and a new canopy, smoothly
faired from the extreme nose of the aircraft, eliminating the “step” of the
earlier versions. The single defensive machine gun of the earlier aircraft was
also omitted. The new version first flew in December 1942, demonstrating
significantly higher speed (630 km/h (391 mph) at 6,000 m (19,700 ft). The
performance of the Ki-46-III, proved superior to that of the aircraft intended
to replace it (the Tachikawa Ki-70), which as a result did not enter
production.
In an attempt to yet
further improve the altitude performance of the Ki-46, two prototypes were
fitted with exhaust driven turbosupercharged Ha-112-II-Ru engines, flying in
February 1944, but only two prototypes of this version were built.
Mitsubishi factories
made a total of 1,742 examples of all versions (34 units Ki-46-I, 1093 units
Ki-46-II, 613 units Ki-46-III, 4 units Ki-46-IV) during 1941-44.
This aircraft was first
used by the Japanese Army in Manchukuo and China, where seven units were
equipped with it, and also at times by the Japanese Imperial Navy in certain
reconnaissance missions over the northern coasts of Australia and New Guinea.
The Japanese Army used
this aircraft for the same type of missions (which were not authorized) over
present-day Malaysia during the months before the Pacific War. Later, it was
used for high altitude reconnaissance over Burma, Indochina, Thailand, and the
Indian Ocean. The Ki-46 was regarded by the British RAF in Burma as a difficult
aircraft to counter, only occasionally intercepting them successfully. On
September 25, 1944, Flying Officer Wittridge shot down a Ki-46, using a
personally modified Spitfire Mk. 8. Wittridge had removed two machine guns and
the seat armor, and also polished the wing leading edges to gain extra speed.
In 1944-45, during the
last days of the war, it was modified as a high-altitude interceptor, with two
20 mm cannon in the nose and one 37 mm (1.46 in) cannon in an “upwards-and-forwards”
position - almost like the Luftwaffe ’s Schräge Musik night fighter cannon
emplacements - for fighting USAAF B-29 Superfortresses over the metropolitan
Japanese islands. It lacked stability for sustained shooting of the 37 mm (1.46
in) weapon, had only a thin layer of armor plating, lacked self-sealing fuel
tanks, and was slow to climb.
The Ki-46 was also
assigned to two whole Sentai (wings/groups), as well as individual Chutaicho
(junior operational commanders) in the Imperial Japanese Army Air Service,
during the Pacific War.
The Allies captured
some examples during the conflict which were then repaired and flown for
evaluation purposes.
Details
Role:
Twin-engine reconnaissance aircraft
Manufacturer:
Mitsubishi
First
flight: November 1939
Introduction:
July 1941
Retired:
September 1945
Primary
user: Imperial Japanese Army Air Force
Number
built: 1,742
Variants
The Shiki designations
must be used in full, as written below, because the Type number only refers to
the year of the designs inception.
Army
Type 100 Command Reconnaissance Plane: The Shiki designation
for the Ki-46 Command Reconnaissance Plane
Army
Type 100 Air Defense Fighter: The Shiki designation
for the Ki-46 Interceptor Fighter
Army
Type 100 Assault Plane: The Shiki designation for the Ki-46
Assault Plane
Ki-46:
Prototype.
Ki-46
I: Reconnaissance
version of the Ki-46.
Ki-46
II: The
first operational model of the series.
Crew:
two (pilot and observer)
Length:
11.00 m (36 ft 1 in)
Wingspan:
14.70 m (48 ft 2¾ in)
Height:
3.88 m (12 ft 8¾ in)
Wing
area: 32.0 m² (344 ft²)
Empty
weight: 3,263 kg (7,194 lb)
Loaded
weight: 5,050 kg (11,133 lb)
Maximum
takeoff weight: 5,800 kg (12,787 lb)
Maximum
speed: 604 km/h (326 knots, 375 mph) at 5,800 m (19,000
ft)
Cruise
speed: 400 km/h (217 knots, 249 mph)
Range:
2,474 km (1,337 nmi, 1,537 mi)
Service
ceiling: 10,720 m (35,200 ft)
Wing
loading: 157.8 kg/m² (32.3 lb/ft²)
Climb
to 8,000 m (26,250 ft): 17 min 58 sec
Guns:
1× rearward-firing 7.7 mm (.303 in) Type 89 machine gun
Ki-46 II KAI: Three-seat
training version of the Ki-46. Used for radio and navigation training, with a
redesigned cabin, dorsal echeloned extension. Conversions of the Ki-46 II.
Ki-46 III: ‘Traditional’
stepped windshield replaced with a smooth, curved, glazed panel extended over
the pilot’s seat giving an aerodynamic nose. Engine power increased to 1,500 hp
(Ha-112-II), extra fuel tank added in the nose.

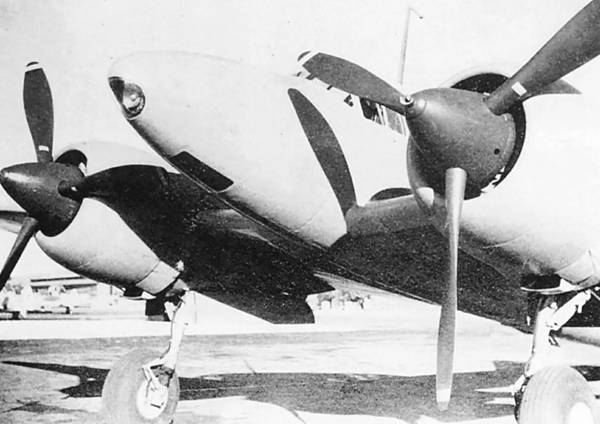

Ki-46 III-KAI: Defense
interceptor/night fighter version of the Ki-46. Equipped with two 20 mm cannon
in the nose and one 37 mm (1.46 in) cannon in the “Schräge Musik”-style
upwards-aimed dorsal frontal position.
Crew:
two (pilot and observer)
Length:
11.00 m (36 ft 1 in)
Wingspan:
14.70 m (48 ft 2¾ in)
Height:
3.88 m (12 ft 8¾ in)
Wing
area: 32.0 m² (344 ft²)
Empty
weight: 3,831 kg (8,446 lb)
Loaded
weight: 5,722 kg (12,619 lb)
Maximum
takeoff weight: 6,230 kg (13,735 lb)
Maximum
speed: 630 km/h (340 knots, 391 mph) at 5,800 m (19,000
ft)
Cruise
speed: 400 km/h (217 knots, 249 mph)
Service
ceiling: 10,500 m (34,450 ft)
Rate
of climb: 8,000 m (26,245 ft)
Wing
loading: 157.8 kg/m² (32.3 lb/ft²)
Climb
to 8,000 m (26,250 ft): 17 min 58 sec
Guns:
1× oblique firing 37mm
(1.45 in)Ho-203
or Ho-204 cannons in
central fuselage
2x 20mm Ho-5 (0.8 in)
cannons in nose
Ki-46
III: Land strike version of the Ki-46, without 37 mm
(1.46 in) cannon armament.
Ki-46
IIIb: Ground-attack version.
Ki-46
IIIc: Unbuilt design project.
Ki-46 IV: Prototype,
equipped with two turbocharged 1,119 kW (1,500 hp) Mitsubishi Ha-112-IIru
engines, and more fuel capacity.
Ki-46
IVa/b: Series models of reconnaissance/fighter aircraft,
unbuilt design projects
Operators
France: French
Air Force: Captured aircraft.
Japan: Imperial
Japanese Army Air Force; Imperial Japanese Navy Air Service
People’s Republic of China: Chinese
Communist Air Force: Two captured Ki-46s in communist Chinese hands served as a
ground-attack aircraft and a trainer respectively, and the last Ki-46 retired
in early 1950s.
Survivors
The only known survivor is a Ki-46-III
Army Type 100 example, currently on display at Royal Air Force Museum Cosford.
It was captured in Malaya and became part of the RAF St Athan collection of
historic aircraft, before passing to the RAF Museum at RAF Cosford where it is
currently (2025) on public display.
 |
