Panzerkampfwagen V Panther: German Medium Tank

The Panther was a German medium tank deployed during World War II from mid-1943 to the end of the European war in 1945. It was intended as a counter to the Soviet T-34, and as a replacement for the Panzer III and Panzer IV. While never replacing the latter, it served alongside it and the heavier Tiger I until the end of the war. While the Panther is considered one of the best tanks of World War II due to its excellent firepower and protection, it was less impressive in terms of mobility, reliability, and cost.

Until 1944, it was designated as the Panzerkampfwagen V Panther and had the ordnance inventory designation of Sd.Kfz. 171. On 27 February 1944, Hitler ordered that the Roman numeral “V” be deleted from the designation. It is sometimes referred to as the “Mark V” in contemporary English language reports.

The Panther was a compromise. While having essentially the same engine as the Tiger I tank, it had better frontal hull armor, (sloping glacis was equivalent to 205–221 mm (8.1–8.7 in) of vertical steel plate) better gun penetration, was lighter and faster, and could traverse rough terrain better than the Tiger. The tradeoff was weaker side armor, which made it vulnerable to flanking fire. The Panther proved to be effective in open country and long range engagements, but providing less high explosive firepower against infantry.

The Panther was far cheaper to produce than the Tiger I tank, and only slightly more expensive than the Panzer IV. Key elements of the Panther design, such as its armor, transmission, and final drive, were compromises made to improve production rates and address raw material shortages, whereas other overengineered elements, such as its highly compact engine and its complex suspension system, remained. The result was that Panther tank production was far higher than what was possible for the Tiger I, but not much higher than that of the Panzer IV. At the same time, the simplified final drive became the single major cause of breakdowns of the Panther tank. All of these compromises resulted in the Panther being less reliable than the Tiger I, which was generally satisfactory when given appropriate logistical support and after its initial flaws were addressed.

The Panther tank arrived in 1943 and was rushed into combat at the Battle of Kursk with its initial problems uncorrected, which resulted in a high breakdown rate. The Panther tank commanded respect from the Allies, and its qualities, along with those of the Tiger I, led to the introduction of heavier Allied tanks, such as the Soviet IS-2 and the American M26 Pershing, as well as the development of the postwar British Centurion tank. Its successes were nullified by Germany’s generally declining position in the war, the loss of air superiority by the Luftwaffe, the shortage of fuel and training space, and the declining quality of tank crews.

The Panther was born out of a project started in 1938 to replace the Panzer III and Panzer IV tanks. The initial requirements of the VK 20 series called for a fully tracked vehicle weighing 20 tons and design proposals by Krupp, Daimler Benz and MAN ensued. These designs were abandoned and Krupp dropped out of the competition entirely as the requirements increased to a vehicle weighing 30 tons, a direct reaction to the encounters with the Soviet T-34 and KV-1 tanks and against the advice of Wa Pruef 6. Wa Pruef 6 was the tank and motorized equipment department of the German arms procurement agency, the Waffenamt. The T-34 outclassed the existing models of the Panzer III and IV. At the insistence of General Heinz Guderian, a special tank commission was created to assess the T-34. Among the features of the Soviet tank considered most significant were the sloping armor, which gave much improved shot deflection and also increased the effective armor thickness against penetration, the wide track, which improved mobility over soft ground, and the 76.2 mm (3.00 in) gun, which had good armor penetration and fired an effective high explosive round. Daimler-Benz (DB), which designed the successful Panzer III and Stug III, and Maschinenfabrik Augsburg-Nürnberg AG (MAN) were given the task of designing a new 30- to 35-ton tank, designated VK 30.02, by April 1942.

The DB design resembled the T-34 in its hull and turret and was also to be powered by a diesel engine. It was also driven from the rear drive sprocket with the turret situated forward. The incorporation of a diesel engine promised increased operational range, reduced flammability and allowed for more efficient use of petroleum reserves. Hitler himself considered a diesel engine imperative for the new tank. DB’s proposal used an external leaf spring suspension, in contrast to the MAN proposal of twin torsion bars. Wa Pruef 6’s opinion was that the leaf spring suspension was a disadvantage and that using torsion bars would allow greater internal hull width. It also opposed the rear drive because of the potential for track fouling. Daimler Benz, however, still preferred the leaf springs over a torsion bar suspension as it resulted in a silhouette about 200 mm (7.9 in) shorter and rendered complex shock absorbers unnecessary. The employment of a rear drive provided additional crew space and also allowed for a better slope on the front hull, which was considered important in preventing the penetration by armor piercing shells. On 5 March 1942, Albert Speer reported that Hitler considered the Daimler-Benz design to be superior to MAN’s design.

The MAN design embodied more a conventional configuration, with the transmission and drive sprocket in the front and a centrally mounted turret. It had a petrol engine and eight torsion-bar suspension axles per side. Because of the torsion bar suspension and the drive shaft running under the turret basket, the MAN Panther was higher and had a wider hull than the DB design. The Henschel firm’s design concepts for their Tiger I tank’s suspension/drive components, using its characteristic Schachtellaufwerk format – large, overlapping, interleaved road wheels with a “slack-track” using no return rollers for the upper run of track, also features shared with almost all German military half-track designs since the late 1930s – were repeated with the MAN design for the Panther. These multiple large, rubber-rimmed steel wheels distributed ground pressure more evenly across the track. The MAN proposal also complimented Rheinmetall’s already designed turret modified from that of the VK 45.01 (H), and used a virtually identical Maybach V12 engine to the Tiger I heavy tank’s Maybach HL230 powerplant model.

The two designs were reviewed from January to March 1942. Reichminister Todt, and later, his replacement Albert Speer, both recommended the DB design to Hitler because of its advantages over the initial MAN design. However, at the final submission, MAN refined its design, having learned from the DB proposal apparently through a leak by a former employee in the Wa Pruef 6, senior engineer Heinrich Ernst Kniepkamp and others. A review by a special commission appointed by Hitler in May 1942 selected the MAN design. Hitler approved this decision after reviewing it overnight. One of the principal reasons given for this decision was that the MAN design used an existing turret designed by Rheinmetall-Borsig, while the DB design would have required a brand new turret and engine to be designed and produced, delaying the commencement of production. This time-saving measure compromised the subsequent development of the design.

Albert Speer recounts in his autobiography Inside the Third Reich:

Since the Tiger had originally been designed to weigh fifty tons but as a result of Hitler’s demands had gone up to fifty seven tons, we decided to develop a new thirty ton tank whose very name, Panther, was to signify greater agility. Though light in weight, its motor was to be the same as the Tiger’s, which meant it could develop superior speed. But in the course of a year Hitler once again insisted on clapping so much armor on it, as well as larger guns, that it ultimately reached forty eight tons, the original weight of the Tiger.

A mild steel prototype of the MAN design was produced by September 1942 and, after testing at Kummersdorf, was officially accepted. It was put into immediate production. The start of production was delayed, however, mainly because of a shortage of specialized machine tools needed for the machining of the hull. Finished tanks were produced in December and suffered from reliability problems as a result. The demand for this tank was so high that the manufacturing was soon expanded beyond MAN to include Daimler-Benz (Berlin-Marienfelde, former DMG plant), Maschinenfabrik Niedersachsen Hanover (MNH, subsidiary of Eisenwerk Wülfel/Hanomag) and Henschel & Sohn in Kassel.

The initial production target was 250 tanks per month at the MAN plant Nuremberg. This was increased to 600 per month in January 1943. Despite determined efforts, this figure was never reached due to disruption by Allied bombing, and manufacturing and resource bottlenecks. Production in 1943 averaged 148 per month. In 1944, it averaged 315 a month (3,777 having been built that year), peaking with 380 in July and ending around the end of March 1945, with at least 6,000 built in total. Front-line combat strength peaked on 1 September 1944 at 2,304 tanks, but that same month a record number of 692 tanks were reported lost.

Allied bombing was first directed at the common chokepoint for both Panther and Tiger production: the Maybach engine plant. This was bombed the night of 27/28 April 1944 and production was halted for five months. A second factory had already been planned, the Auto Union Siegmar plant (former Wanderer car factory), and this came on line in May 1944. The targeting of Panther factories began with a bombing raid on the DB plant on 6 August 1944, and again on the night of 23/24 August. MAN was struck on 10 September, 3 October and 19 October 1944, and then again on 3 January and 20/21 February 1945. MNH was not attacked until 14 and 28 March 1945.

In addition to interfering with tank production goals, the bombing forced a steep drop in the production of spare parts, which as a percentage of tank production dropped from 25–30 percent in 1943 to 8 percent in the autumn of 1944. This compounded the problems with reliability and the numbers of operational Panthers, as tanks in the field had to be cannibalized for parts.

The Panther was the third most produced German armored fighting vehicle, after the Sturmgeschütz III assault gun/tank destroyer at 9,408 units, and the Panzer IV tank at 8,298 units.

Production By Type
Model	Number	Date	Notes
Prototype	2	Sep 1942	Designated V1 and V2
Ausf. D	842	Jan 1943 to Sept 1943
Ausf. A	2,200	Aug 1943 to Aug 1944	Sometimes called Ausf. A2
Ausf. G	~2,961	Mar 1944 to Apr 1945
Befehlspanzer Panther	329	May 1943 to Apr 1945	Converted on the production line
Beobachtungspanzer Panther	1	1944	Converted
Bergepanther	339	1943 to 1945	61 more converted from rebuilt chassis
Panther Production in 1944 by Manufacturer
Manufacturer				% of total
Maschinenfabrik Augsburg-Nürnberg (M.A.N.)				35
Daimler-Benz				31
Maschinenfabrik Niedersachsen-Hannover				31
Other				3

One source has cited the cost of a Panther tank as 117,100 Reichmarks (RM). This compared with 82,500 RM for the StuG III, 96,163 RM for the Panzer III, 103,462 RM for the Panzer IV, and 250,800 RM for the Tiger I. These figures did not include the cost of the armament and radio. Therefore, the Panther tank was one of the most cost-effective of the German armored fighting vehicles of World War II. Using slave labor on the production lines greatly reduced costs, but also greatly increased sabotage. French army studies in 1947 found that many Panthers had been sabotaged during production. However, these cost figures should be understood in the context in which the various armored fighting vehicles were first designed, as the Germans increasingly strove for production methods that would allow for higher production rates, and thus steadily reduced the cost of their armored fighting vehicles. By comparison for example, another source has cited the total cost of the early production Tiger I in 1942–1943 to be as high as 800,000 RM.

The process of streamlining the production of German armored fighting vehicles first began after Speer became Reichminister in early 1942, and steadily accelerated through to 1944; the production of the Panther tank coincided with this period of increased manufacturing efficiency. At the beginning of the war, German armored fighting vehicle manufacturers had employed labor-intensive and costly manufacturing methods unsuitable for the needs of mass production; even with streamlined production methods, Germany never approached the efficiency of Allied manufacturing during World War II.

The weight of the production model was increased to 45 tons from the original plans for a 35 ton tank. Hitler was briefed thoroughly on the comparison between the MAN and DB designs in the report by Guderian’s tank commission. Armor protection appeared to be inadequate, while “the motor mounted on the rear appeared to him correct.” He agreed that the “decisive factor was the possibility of quickly getting the tank into production.” On 15 May 1942, Oberst Fichtner informed MAN that Hitler had decided in favor of the MAN Panther and ordered series production. The upper glacis plate was to be increased from 60 mm (2.4 in) to 80 mm (3.1 in). Hitler demanded that an increase to 100 mm (3.9 in) should be attempted and that at least all vertical surfaces were to be 100 mm (3.9 in); the turret front plate was increased from 80 mm (3.1 in) to 100 mm (3.9 in).

The Panther was rushed into combat before all of its teething problems had been corrected. Reliability was considerably improved over time, and the Panther did prove to be a very effective fighting vehicle; however, some design flaws, such as its weak final drive units, were never corrected due to raw material shortages.

The crew had five members: driver, radio operator (who also fired the bow machine gun), gunner, loader, and commander.

The first 250 Panthers were powered by a Maybach HL 210 P30 engine, V-12 petrol engine, which delivered 650 metric hp at 3,000 rpm and had three simple air filters. Starting in May 1943, the Panthers were built using the 700 metric hp (690 hp, 515 kW) at 3,000 rpm, 23.1 liter Maybach HL 230 P30 V-12 petrol engine. To save aluminum, the light alloy block used in the HL 210 was replaced by a cast iron block. Two multistage “cyclone” air filters were used to improve dust removal. Due to the use of low grade petrol, the engine power output was reduced. With a capacity of 720 liters (160 imperial gallons; 190 US gallons) of fuel, a fully fuelled Panther’s range was 130 km (81 mi) on surfaced roads and 80 km (50 mi) cross country.

The HL 230 P30 engine was a very compact design, which kept the space between the cylinder walls to a minimum. The crankshaft was composed of seven discs, each with an outer race of roller bearings, and a crankshaft pin between each disc. To reduce the length of the engine further, by one-half a cylinder diameter, the two banks of 6 cylinders of the V-12 were not offset – the “big ends” of the connecting rods of each cylinder pair in the “V” where they mated with the crankpin were thus at the same spot with respect to the engine block’s length rather than offset; this required a “fork and blade” matched pair of conrods for each transversely-oriented pair of cylinders. Usually, “V”-form engines have their transversely-paired cylinders’ conrods’ “big ends” simply placed side by side on the crankpin, with their transverse pairs of cylinders offset to match. This compact arrangement with the connecting rods was the source of considerable problems initially. Blown head gaskets were another problem, which was corrected with improved seals in September 1943. Improved bearings were introduced in November 1943. An engine governor was also added in November 1943 that reduced the maximum engine speed to 2500 rpm. An eighth crankshaft bearing was added beginning in January 1944 to reduce motor failures.

The engine compartment space was designed to be watertight so that the Panther could ford water obstacles. The result was that the engine compartment was poorly ventilated and prone to overheating. The fuel connectors in the early models were non-insulated, leading to the leakage of fuel fumes into the engine compartment. This led to engine fires in the early Panthers. Additional ventilation was added to draw off these gases, which only partly solved the problem of engine fires. Other measures taken to reduce this problem included improving the coolant circulation inside the motor and adding a reinforced membrane spring to the fuel pump. The Panther had a solid firewall separating the engine compartment and the fighting compartment to keep engine fires from spreading.

Engine reliability improved over time. A French assessment of their stock of captured Normandy Panther A’s in 1947 concluded that the engine had an average life of 1,000 km (620 mi) and maximum life of 1,500 km (930 mi).

The suspension consisted of front drive sprockets, rear idlers and eight double-interleaved rubber-rimmed steel road wheels on each side — in the so-called Schachtellaufwerk design, suspended on a dual torsion bar suspension. The dual torsion bar system, designed by Professor Ernst Lehr, allowed for a wide travel stroke and rapid oscillations with high reliability, thus allowing for relatively high speed travel over undulating terrain. However, the extra space required for the bars running across the length of the bottom of the hull, below the turret basket, increased the overall height of the tank and also prevented the provision for an escape hatch in the hull bottom. When damaged by mines, the torsion bars often required a welding torch for removal.

The Panther’s suspension was overengineered and the Schachtellauf­werk interleaved road wheel system made replacing inner road wheels time consuming (though it could operate with missing or broken wheels). The interleaved wheels also had a tendency to become clogged with mud, rocks and ice, and could freeze solid overnight in the harsh winter weather that followed the autumn rasputitsa mud season on the Eastern Front. Shell damage could cause the road wheels to jam together and become difficult to separate. Interleaved wheels had long been standard on all German half-tracks. The extra wheels did provide better flotation and stability, and also provided more armor protection for the thin hull sides than smaller wheels or non-interleaved wheel systems, but the complexity meant that no other country ever adopted this design for their tanks. In September 1944, and again in March/April 1945, M.A.N. built a limited number of Panthers with overlapping, non-interleaved steel-rimmed 80 cm diameter roadwheels originally designed for Henschel’s Tiger II and late series Tiger I Ausf. E tanks. These steel-rimmed roadwheels were introduced from chassis number 121052 due to raw material shortages.

From November 1944 through February 1945, a conversion process began to use sleeve bearings in the Panther tank, as there was a shortage of ball bearings. The sleeve bearings were primarily used in the running gear; plans were also made to convert the transmission to sleeve bearings, but were not carried out due to the ending of Panther production.

Steering was accomplished through a seven-speed AK 7-200 synchromesh gearbox, designed by Zahn­radfabrik Friedrichshafen (ZF), and a MAN single radius steering system, operated by steering levers. Each gear had a fixed radius of turning, ranging from 5 m (16 ft) for 1st gear up to 80 m (260 ft) for 7th gear. The driver was expected to judge the sharpness of a turn ahead of time and shift into the appropriate gear to turn the tank. The driver could also engage the brakes on one side to force a sharper turn. This manual steering was a much simplified design, compared to the sophisticated dual-radius hydraulically controlled steering system of the Tiger tanks.

The AK 7-200 transmission was also capable of pivot turns, but this high-torque method of turning could cause failures of the final drive.

The Panthers’ main weakness was its final drive unit. The problems were from several factors. The original MAN proposal had called for the Panther to have an epicyclic gearing (planetary) system in the final drive, similar to that used in the Tiger I. However, Germany suffered from a shortage of gear-cutting machine tools and, unlike the Tiger tanks, the Panther was intended to be mass-produced. To achieve the goal of higher production rates, numerous simplifications were made to the design and its manufacture. This process was aggressively pushed forward, sometimes against the wishes of designers and army officers, by the Chief Director of Armament and War Production, Karl-Otto Saur (who worked under, and later succeeded, Reichminister Speer). Consequently, the final drive was changed to a double spur system. Although much simpler to produce, the double spur gears had inherently higher internal impact and stress loads, making them prone to failure under the high torque requirements of the heavy Panther tank. Furthermore, high quality steel intended for the double spur system was not available for mass production, and was replaced by 37MnSi5 tempered steel, which was unsuitable for high-stress gears. In contrast, both the Tiger II and the US M4 Sherman tank had double helical (herringbone gears) in their final drives, a system that reduced internal stress loads and was less complex than planetary gear trains.

Compounding these problems was the fact that the final drive’s housing and gear mountings were too weak because of the type of steel used and the tight space allotted for the final drive. The final gear mountings deformed easily under the high torque and stress loads, pushing the gears out of alignment and resulting in failure. Due to the weakness of the final drives, their average fatigue life was only 150 km (93 mi). In Normandy, about half of the abandoned Panthers were found by the French to have broken final drives. The final gear housing was eventually replaced with a stronger one, while the final gear problem was never solved.

Plans were made to replace the final drive, either with a version of the original epicyclic gears planned by MAN, or with the final drive of the Tiger II. These plans were intertwined with the planning for the Panther II, which never came to fruition because the tank commission deemed that a temporary drop in production of the Panther due to a merger of Tiger II and Panther II would be unacceptable. It was estimated that building the epicyclic gear final drive would have required 2.2 times more machining work than double spur gears, and this would have affected output.

Most of the shortcomings were considered acceptable once design flaws had been rectified. Due to the mechanical unreliability of the final gear, the Panther had to be driven with care, a characteristic shared with the Tiger tanks as well as the Jagdtiger. Long road marches would result in a significant number of breakdowns, and so the German Army had to move the tanks by rail as close to the fronts as possible.

Initial production Panthers had a face-hardened glacis plate (the main front hull armor piece), but as armor-piercing capped rounds became the standard in all armies (thus defeating the benefits of face-hardening, which caused uncapped rounds to shatter), this requirement was deleted in March 1943. By August 1943, Panthers were being built only with a homogeneous steel glacis plate. The front hull had 80 mm (3.1 in) of armor angled at 55 degrees from the vertical, welded but also interlocked for strength. The combination of well-sloped and thick armor meant that heavy Allied weapons, such as the Soviet 122 mm A-19, 100 mm BS-3 and US 90 mm M3 were needed to assure penetration of the upper glacis at all combat ranges.

The armor for the side hull and superstructure (the side sponsons) was much thinner (40–50 mm (1.6–2.0 in)). The thinner side armor was necessary to keep the tanks’ weight down, but it made the Panther vulnerable to hits from the side by all Allied tank and anti-tank guns. German tactical doctrine for the use of the Panther emphasized the importance of flank protection. 5 mm (0.20 in) thick spaced armor, known as Schürzen, intended to provide protection for the lower side hull from Soviet anti-tank rifle fire, was fitted on the hull side. Zimmerit coating against magnetic mines started to be applied at the factory on late Ausf D models beginning in September 1943; an order for field units to apply Zimmerit to older versions of the Panther was issued in November 1943. In September 1944, orders to stop all application of Zimmerit were issued, based on false rumors that hits on the Zimmerit had caused vehicle fires.

Panther crews were aware of the weak side armor and made augmentations by hanging track links or spare roadwheels onto the turret and/or the hull sides. The rear hull top armor was only 16 mm (0.63 in) thick, and had two radiator fans and four air intake louvers over the engine compartment that were vulnerable to strafing by aircraft.

As the war progressed, Germany was forced to reduce or no longer use certain critical alloys in the production of armor plate, such as nickel, tungsten, molybdenum, and manganese; this resulted in lower impact resistance levels compared to earlier armor. Allied bombers struck the Knabe mine in Norway and stopped a key source of molybdenum; supplies from Finland and Japan were also cut off. The loss of molybdenum, and its replacement with other substitutes to maintain hardness, as well as a general loss of quality control, resulted in an increased brittleness in German armor plate, which developed a tendency to fracture when struck with a shell. Testing by U.S. Army officers in August 1944 in Isigny, France showed catastrophic cracking of the armor plate on two out of three Panthers examined.

The main gun was a Rheinmetall-Borsig 7.5 cm KwK 42 (L/70) with semi-automatic shell ejection and a supply of 79 rounds (82 on Ausf. G). The main gun used three different types of ammunition: APCBC-HE (Pzgr. 39/42), HE (Sprgr. 42) and APCR (Pzgr. 40/42), the last of which was usually in short supply. While it was of a caliber common on Allied tanks, the Panther’s gun was one of the most powerful of World War II, due to the large propellant charge and the long barrel, which gave it a very high muzzle velocity and excellent armor-piercing qualities — among Allied tank guns of similar caliber, only the British Sherman Firefly conversion’s Ordnance QF 17-pounder gun, of 3 inch (76.2mm) caliber, and a 55 caliber long (L/55) barrel, had more potential hitting power. The flat trajectory also made hitting targets much easier, since accuracy was less sensitive to errors in range estimation and increased the chance of hitting a moving target, though these same attributes made the gun a poor infantry-support weapon using HE ammo. The Panther’s 75 mm gun had more penetrating power than the main gun of the Tiger I heavy tank, the 8.8 cm KwK 36 L/56, although the larger 88 mm projectile might inflict more damage if it did penetrate.

The tank typically had two MG 34 armored fighting vehicle variant machine guns featuring an armored barrel sleeve. An MG 34 machine gun was located co-axially with the main gun on the gun mantlet; an identical MG 34 was located on the glacis plate and fired by the radio operator. Initial Ausf. D and early Ausf. A models used a “letterbox” flap enclosing its underlying thin, vertical arrow slit-like aperture, through which the machine gun was fired. In later Ausf A and all Ausf G models (starting in late November-early December 1943), a ball mount in the glacis plate with a K.Z.F.2 machine gun sight was installed for the hull machine gun.

The front of the turret was a curved 110 mm (4.3 in) thick cast armor mantlet. Its transverse-cylindrical shape meant that it was more likely to deflect shells, but the lower section created a shot trap. If a non-penetrating hit bounced downwards off its lower section, it could penetrate the thin forward hull roof armor, and plunge down into the front hull compartment. Penetrations of this nature could have catastrophic results, since the compartment housed the driver and radio operator sitting along both sides of the massive gearbox and steering unit. Also, four magazines containing main gun ammunition were located between the driver/radio operator seats and the turret, directly underneath the gun mantlet when the turret was facing forward.

From September 1944, a slightly redesigned mantlet with a flattened and much thicker lower “chin” design started to be fitted to Panther Ausf G models, the chin being intended to prevent such deflections. Conversion to the “chin” design was gradual, and Panthers continued to be produced to the end of the war with the rounded gun mantlet.

The Ausf A model introduced a new cast armor commander’s cupola, replacing the forged cupola. It featured a steel hoop to which a third MG 34 or either the coaxial or the bow machine gun could be mounted for use in the anti-aircraft role.

The first Panthers (Ausf D) had a hydraulic motor that could traverse the turret at a maximum rate of one complete revolution in one minute, independent of engine speed. This was improved in the Ausf A model with a hydraulic traverse that varied with engine speed; one full turn taking 46 seconds at an engine speed of 1,000 rpm but only 15 seconds if the engine was running at 3,000 rpm. This arrangement was a weakness, as traversing the Panther’s turret rapidly onto a target required close coordination between the gunner and driver, who had to run the engine to maximum speed. By comparison, the M4 Sherman’s electrically-traversed turret rotated at up to 360 degrees in 15 seconds and was independent of engine speed, which gave it an advantage over the Panther in close-quarters combat. A hand traverse wheel was provided for the Panther gunner to make fine adjustment of his aim.

Ammunition storage for the main gun was a weak point. All the ammunition for the main armament was stored in the hull, with a significant amount stored in the sponsons. In the Ausf D and A models, 18 rounds were stored next to the turret on each side, for a total of 36 rounds. In the Ausf G, which had deeper sponsons, 24 rounds were stored on each side of the turret, for a total of 48 rounds. In all models, four rounds were also stored in the left sponson between the driver and the turret. An additional 36 rounds were stored inside the hull of the Ausf D and A models – 27 in the forward hull compartment directly underneath the mantlet. In the Ausf G, the hull ammunition storage was reduced to 27 rounds total, with 18 rounds in the forward hull compartment. For all models, three rounds were kept under the turntable of the turret. The stowage of 52 rounds of ammunition in the side sponsons made this area the most vulnerable point on the Panther since penetration here usually led to catastrophic ammunition fires.

The loader was stationed in the right side of the turret. With the turret facing forward, he had access only to the right sponson and hull ammunition, and so these served as the main ready-ammunition bins.

Panthers were supplied to form Panzer Abteilung 51 (Tank Battalion 51) on 9 January, and then Panzer Abteilung 52 on 6 February 1943.

The first production Panther tanks were plagued with mechanical problems. The engine was dangerously prone to overheating and suffered from connecting rod or bearing failures. Petrol leaks from the fuel pump or carburetor, as well as motor oil leaks from gaskets, produced fires in the engine compartment; which resulted in the total write-off of three Panthers due to fires. Transmission and final drive breakdowns were the most common and difficult to repair. A large list of other problems were detected in these early Panthers, and so from April through May 1943 all Panthers were shipped to Falkensee and Nürnberg for a major rebuilding program. This did not correct all of the problems, so a second program was started at Grafenwoehr and Erlangen in June 1943.

The Panther tank was seen as a necessary component of Operation Zitadelle, and the attack was delayed several times because of their mechanical problems and to receive more Panthers, with the eventual start date of the battle only six days after the last Panthers had been delivered to the front. This resulted in major problems in Panther units during the Battle of Kursk, as tactical training at the unit level, coordination by radio, and driver training were all seriously deficient.

It was not until 23–29 June 1943 that a total of 200 rebuilt Panthers were finally issued to Panther Regiment von Lauchert, of the XLVIII Panzer Corps (4 Panzer Army). Two were immediately lost due to motor fires on disembarking from the trains. By 5 July, when the Battle of Kursk started, there were only 184 operational Panthers. Within two days, this had dropped to 40. On 17 July 1943, after Hitler had ordered a stop to the German offensive, Gen. Heinz Guderian sent in the following preliminary assessment of the Panthers:

Due to enemy action and mechanical breakdowns, the combat strength sank rapidly during the first few days. By the evening of 10 July there were only 10 operational Panthers in the front line. 25 Panthers had been lost as total write-offs (23 were hit and burnt and two had caught fire during the approach march). 100 Panthers were in need of repair (56 were damaged by hits and mines and 44 by mechanical breakdown). 60 percent of the mechanical breakdowns could be easily repaired. Approximately 40 Panthers had already been repaired and were on the way to the front. About 25 still had not been recovered by the repair service ... On the evening of 11 July, 38 Panthers were operational, 31 were total write-offs and 131 were in need of repair. A slow increase in the combat strength is observable. The large number of losses by hits (81 Panthers up to 10 July) attests to the heavy fighting.

During Zitadelle the Panthers claimed 267 destroyed tanks.

A later report on 20 July 1943 showed 41 Panthers as operational, 85 as repairable, 16 severely damaged and needing repair in Germany, 56 burnt out (because of enemy action), and two that had been destroyed by motor fires.

However, before the Germans ended their offensive at Kursk, the Soviets began their counteroffensive, and succeeded in pushing the Germans back into a steady retreat. Thus, a report on 11 August 1943 showed that the number of total write-offs in Panthers swelled to 156, with only 9 operational. The German Army was forced into a fighting retreat and increasingly lost Panthers in combat as well as from abandoning and destroying damaged vehicles.

The Panther demonstrated its capacity to destroy any Soviet armored fighting vehicle from long distance during the Battle of Kursk, and had a very high overall kill ratio. However, it constituted less than seven percent of the estimated 2,400–2,700 total armored fighting vehicles deployed by the Germans in this battle, and its effectiveness was limited by its mechanical problems and the in-depth layered defense system of the Soviets at Kursk. Its greatest historical role in the battle may have been a highly negative one—its contribution to the decisions to delay the original start of Operation Zitadelle for a total of two months, time which the Soviets used to build up an enormous concentration of minefields, anti-tank guns, trenches and artillery defenses.

After the losses of the Battle of Kursk, the German Army went into a permanent state of retreat against the Red Army. The numbers of Panthers were slowly re-built on the Eastern Front, and the operational percentage increased as its reliability was improved. In March 1944, Guderian reported: “Almost all the bugs have been worked out,” although many units continued to report significant mechanical problems, especially with the final drive. The greatly outnumbered Panthers came to be used as mobile reserves to fight off major attacks.

The highest total number of operational Panthers on the Eastern Front was achieved in September 1944, when some 522 were listed as operational out of a total of 728. Throughout the rest of the war, Germany continued to keep the great majority of Panther forces on the Eastern Front, where the situation progressively worsened for the Germans. The last recorded status, on 15 March 1945, listed 740 on the Eastern Front of which 361 were operational. By this time the Red Army had entered East Prussia and was advancing through Poland.

In August 1944, Panthers were deployed during the Warsaw Uprising as mobile artillery and troop support. At least two of them were captured in the early days of the conflict and used in actions against the Germans, including the liberation of the Gęsiówka concentration camp on 5 August, when the soldiers of “Wacek” platoon used the captured Panther (named “Magda”) to destroy the bunkers and watchtowers of the camp. Most of the Germans in the camp were killed; the insurgents had lost two people and liberated almost 350 people. After several days they were immobilized due to the lack of fuel and batteries and were set ablaze to prevent them from being re-captured by the German forces.

At the time of the invasion of Normandy in June 1944, there were initially only two Panther-equipped Panzer regiments in the Western Front, with a total of 156 Panthers between them. From June through August 1944, an additional seven Panther regiments were sent into France, reaching a maximum strength of 432 in a status report dated 30 July 1944.

The majority of the German tank forces in Normandy – six and a half divisions, were drawn into the fighting around the town of Caen. Here, they checked the Anglo-Canadian forces of the 21st Army Group. The numerous battles to secure the town became collectively known as the Battle of Caen. While there were sectors of heavy bocage around Caen, there were also many open fields, which allowed the Panther to engage the attacking enemy armor at long range. Conversely, by the time of the Normandy Campaign, British Divisional Anti-tank Regiments were well equipped with the excellent 17 pounder gun (the 17pdr also replaced the US gun on some M10 Tank Destroyers in British service), making it equally as perilous for Panthers to attack across these same fields. The British had begun converting regular M4 Shermans to carry the 17 pounder gun (nicknamed Firefly) prior to the D-day landings, and while limited numbers meant that during Normandy not more than one Sherman in four were of the Firefly variant, the lethality of its gun against German armor made them priority targets for German gunners.

US forces in the meantime, facing one and a half German panzer divisions, mainly the Panzer Lehr Division, struggled in the heavy, low-lying bocage terrain west of Caen. Against the M4 Shermans of the Allied tank forces during this time, the Panther tank proved to be most effective when fighting in open country and shooting at long range — its combination of superior armor and firepower allowed it to engage at distances from which the Shermans could not respond. However, the Panther struggled in the bocage country of Normandy, and was vulnerable to side and close-in attacks in the built-up areas of cities and small towns. The commander of the Panzer Lehr Division, Gen. Fritz Bayerlein, reported on the difficulties experienced by the Panther tank in the fighting in Normandy:

While the PzKpfw IV could still be used to advantage, the PzKpfw V [Panther] proved ill adapted to the terrain. The Sherman because of its maneuverability and height was good ... [the Panther was] poorly suited for hedgerow terrain because of its width. Long gun barrel and width of tank reduce maneuverability in village and forest fighting. It is very front-heavy and therefore quickly wears out the front final drives, made of low-grade steel. High silhouette. Very sensitive power-train requiring well-trained drivers. Weak side armor; tank top vulnerable to fighter-bombers. Fuel lines of porous material that allow gasoline fumes to escape into the tank interior causing a grave fire hazard. Absence of vision slits makes defense against close attack impossible.

But Bayerlein still appreciated the Panther’s virtues when used in the right conditions:

An ideal vehicle for tank battles and infantry support. The best tank in existence for its weight.

Through September and October, a series of new Panzerbrigades equipped with Panther tanks were sent into France to try to stop the Allied advance with counterattacks. This culminated in the Battle of Arracourt (18–29 September 1944), in which the mostly Panther-equipped German forces suffered heavy losses fighting against the 4th Armored Division of Patton’s 3rd Army, which were still primarily equipped with 75 mm M4 Sherman tanks and yet came away from the battle with only a few losses. The Panther units were newly formed, poorly trained and tactically disorganized; most units ended up stumbling into ambushes against seasoned U.S. tank crews.

A status report on 15 December 1944 listed an all-time high of 471 Panthers assigned to the Western Front, with 336 operational (71 percent). This was one day before the start of the Battle of the Bulge; 400 of the tanks assigned to the Western Front were in units sent into the offensive.

The Panther once again demonstrated its prowess in open country, where it could hit its targets at long range with near-impunity, and its vulnerability in the close-in fighting of the small towns of the Ardennes, where they suffered heavy losses. A status report on 15 January 1945 showed only 97 operational Panthers left in the units involved in the operation, out of 282 still in their possession. Total write-offs were listed as 198.

The Operation Greif commando mission included five Panthers assigned to Panzerbrigade 150, disguised to look like M10 Tank Destroyers by welding on additional plates, applying US-style camouflage paint and markings. This was carried out as part of a larger operation that involved soldiers disguised as Americans and to attack US troops from the rear. The disguised Panthers were detected and destroyed.

In February 1945, eight Panzer divisions with a total of 271 Panthers were transferred from the West to the Eastern Front. Only five Panther battalions remained in the west.

One of the top German Panther commanders was SS-Oberschar­führer Ernst Barkmann of the 2nd SS-Panzer Regiment “Das Reich.” By the end of the war, he had some 80 tank kills claimed.

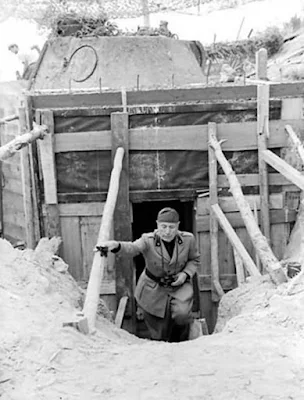

From 1943, Panther turrets were mounted in fixed fortifications; some were normal production models, but most were made specifically for the task, with additional roof armor to withstand artillery fire. Two types of turret emplacements were used; (Pantherturm III – Betonsockel — concrete base) and (Pantherturm I – Stahluntersatz — steel sub-base). They housed ammunition storage and fighting compartment along with crew quarters. A total of 182 of these were installed in the fortifications of the Atlantic Wall and Siegfried Line (Westwall), 48 in the Gothic Line and Hitler Line, 36 on the Eastern Front, and two for training and experimentation, for a total of 268 installations by March 1945. They proved to be costly to attack, and difficult to destroy.

The first Panthers saw combat at Kursk in summer 1943, revealing reliability issues beyond that typically expected for a new weapon system. This was improved through 1943; the Panther’s operational rate went from 16 percent at the end of July 1943 to 37 percent by December 1943.

An improved version, the Panther Ausf. A, entered production in August 1943. This received improvements from the Panther Ausf. D, including a better turret with a new commander’s cupola and increased turret traverse speed. More improvements began to have an effect on the combat-ready rate of the tanks deployed on the Eastern Front, which increased from 37 percent in February, to 50 percent in April, and 78 percent by the end of May 1944.

General Heinz Guderian reported on 5 March 1944:

The frontline reports said service life of the tank’s engine had increased up from 700 to 1,000km [435 to 621 miles]. Plus, the same Panther tank-equipped units reported that failures regarding final drive, transmission and steering gears were within a suitable range.

He further noted a specific instance of mechanical reliability:

From 6 March to 15 April 1944, the 1.Abteilung/Panzer­regiment 2 (1st Battalion, 2nd Panzer Regiment) reported a distance of between 1500 km to 1800 km. Four of their seven Panthers was still combat ready without any transmission or engine failure.

On 22 April 1944, the same battalion reported how a good driver and commander can improve reliability:

This kept in mind, the battalion reported PzKpfw V Chassis No. 154338, Engine No. 8322046 reading 1,878km with driver Ober­grefeiter Gablewski, 4.Kp/PzRgt 2. The vehicle was still totally operational. All items were in great condition but the tracks. The consumption of the engine has been 10ltr per 100km. The vehicle was still operating with its first engine and transmission.

After that report from the units, the Inspector General of Armored Troops acknowledged this in a report of 6 May 1944:

The report confirms the opinion that thanks to the continuous improvement of its components, the life of the Panther tank has increased. The average lifespan of a Panther can now be roughly equal to that of a Panzer IV with around 1,500-2,000 kilometers between two major repair and maintenance processes.

And,

… gearboxes also have a longer life. Even so, in several cases, at approximately 1500 km, the gear has broken down and the boxes have had to be replaced.

An example of Panther reliability appeared in the June 1944 edition of Nachrichtenblatt der Panzertruppen (Armored Troops Bulletin), from a Panther-recovery tank driver’s report:

Unteroffizier Krause of a Panther workshop platoon has driven his Panther recovery tank – Chassis No. 212132 – 4,200km until 3 May 1944 without any needing to replace any parts. About 1,000km of this was made towing another Panther tank. The vehicle and engine are still in great condition and operational.

On 28 June 1944, Guderian reported:

Regarding the experiences in opposing the Allied landing in Normandy: The Panzer IV, Panzer V Panther, and Panzer VI Tiger have proven to be successful. The Panther is inclined to catch fire quickly. The lifetime of the Panther’s engines (1400 to 1500 km) is much higher than the Panther’s final drives. A solution to the final drive teething is immediately needed.

In September and October 1944, a number of modifications were fitted into the final drives as countermeasures to the reported problems including worn gear teeth, parts, bearings, and insufficient lubrication.

The Tiger I and Panther tanks were German responses to encountering the T-34 in 1941. Soviet firing tests against a captured Tiger in April 1943 showed that the T-34’s 76 mm gun could not penetrate the front of the Tiger I and the side only at very close range. An existing Soviet 85 mm anti-aircraft gun, the D-5T, also proved disappointing. Several captured German Tiger I tanks were shipped to Chelyabinsk, where they were subjected to 85 mm fire from various angles. The 85 mm gun could not reliably penetrate the Tiger I except at ranges within the lethal envelope of the Tiger I’s own 88 mm gun. The Soviets had already embarked on the 85 mm gun upgrade path before encountering the Panther tank at the Battle of Kursk.

After much development work, the first T-34-85 tanks entered combat in March 1944. The production version of the T-34’s new 85 mm gun had to be aimed at the Panther’s turret front and mantlet to penetrate, while the Panther’s main gun could penetrate the T-34’s glacis from 800 m (870 yd) at 30 degrees. Although the T-34-85 tank was not quite the equal of the Panther in the anti-tank role, it was much better than the 76.2 mm-armed versions and made up for it with proven reliability, more effective fragmentation shells, and production in greater quantities. New tank destroyers based on the T-34 hull, such as the SU-85 and SU-100, were also developed. A Wa Pruef 1 report dated 5 October 1944 estimated that when set at a 30-degree angle the T-34-85’s upper glacis could be penetrated by the Panther’s 7.5 cm KwK 42 from 300 m (330 yd), the mantlet from 1,200 m (1,300 yd) and the turret front from 2,000 m (2,200 yd) while the T-34-85’s 85 mm ZiS-S-53 could penetrate the Panther’s frontal turret from 500 m (550 yd). From the side, the two were equivalent as both tanks could penetrate the other from ranges over 2,000 m (2,200 yd), further than any practical engagement distance.

The Battle of Kursk convinced the Soviets of the need for even greater firepower. A Soviet analysis of the battle in August 1943 showed that a Corps artillery piece, the A-19 122 mm gun, had done well against the German armored fighting vehicles in that battle, and so development work on the 122 mm equipped IS-2 began in late 1943. First encounters with enemy tanks revealed that the 122 mm BR-471 shell could punch through the Panther’s frontal armor at a range of 600–700 m (660–770 yd). The early results of the IS-2’s combat employment, which were confirmed by firing tests in Kubinka 1944, compelled the designers to seek innovate solutions. According to German tactical instructions, a Panther had to close to 600 m (660 yd) to guarantee penetration of the IS-2’s frontal armor, while the IS-2 could penetrate the Panther at ranges of 1,000 m (1,100 yd). The German military intelligence journal for tank crews “Nachrich­tenblatt der Panzertruppen Nr.12, June 1944 p. 34” reported that the IS-2 could be successful attacked at approximately 500 m at the angle of 30 degrees. This calculation was derived from firing tables “Pz. Beschusstafel” created against the KV-85. Steven Zaloga makes therefore an unfavorable comparison (30° to 90° for the range of destruction) for the Panther over its adversary.

A Wa Pruef 1 report states that when set at a 30-degree angle the glacis plate of the Panther could not be penetrated by the 122 mm D-25T gun, the lower glacis could, however, be penetrated from 100 m (110 yd), the turret mantlet from 500 m (550 yd) and the turret front from 1,500 m (1,600 yd). The Panther’s 75 mm gun could penetrate the IS-2 model 1943’s mantlet from 400 m (440 yd), turret from 800 m (870 yd), and driver’s front plate from 600 m (660 yd). From the side, the Panther’s armor was penetrable by the 122 mm D-25T from over 3,500 m (3,800 yd). The Panther carried more ammunition and had a faster firing cycle: for every 1-1.5 shots of the IS-2, the Panther and Tiger could fire 3-4 times. With the addition of a semi-automatic drop breech over the previously manual screw, the rate of fire increased to 2-3 rounds per minute. This breech modification increased the IS-2’s rate of fire to 3-4 rounds per minute.

The response of the Western Allies to the Panther was confused. The Western Allies were aware of the Panther and had access to technical details through the Soviets, but there was a difference in the American and British camps as to the significance of the tank. After taking two years to catch up with German tank design in Africa, the British were wary of falling behind yet again. They had developed the excellent 17-pounder anti-tank gun, but did not yet have a vehicle in service that could fit this large gun into its turret. For its part, the U.S. Army did not believe that the Panther would be a significant problem, and did not foresee their armored forces having to fight pitched engagements against the Panther. The Panther was not seen in combat by the Western Allies until early 1944 at Anzio in Italy, where Panthers were employed in small numbers. Until just before D-Day (6 June 1944), the Panther was thought to be another heavy tank that would not be built in large numbers.

Shortly before D-Day, Allied intelligence reported that large numbers of Panthers were being used in the panzer divisions, and an attempt was made to investigate Panther production. Using a statistical analysis of the serial numbers on the road wheels on two captured tanks, U.S. intelligence estimated Panther production for February 1944 to be 270 units, much greater than what had been anticipated. Actual German production for February 1944 was 276 tanks. This estimate was very accurate, especially compared to previous methods, as German records after the war showed production of Panthers for the month of February 1944 was 276. This indicated that the Panther would be encountered in much larger numbers than had previously been thought. In the planning for the Battle of Normandy, the U.S. Army expected to face a handful of German heavy tanks alongside large numbers of Panzer IVs. At this point, it was too late to prepare to face the Panther. As it turned out, 38% of the German tanks in Normandy were Panthers, whose frontal armor could not be penetrated by the 75 mm guns of the US M4 Sherman.

The British were more astute in their recognition of the danger posed by the increasing armor strength of German tanks. Work on a more powerful anti-tank gun had started in 1941, and the tanks to use it in 1942. When these programs were delayed, a stop-gap solution was found. The 17-pdr could through modifications be fitted to a Sherman, and orders for this Sherman Firefly were placed in 1943. By the time of the Normandy invasion, 340 Sherman Fireflies were available to the Commonwealth armored divisions. The British lobbied for American production lines to be modified to produce Fireflies, but these suggestions were ignored by the U.S. Army, in part due to the poor performance of British tank designs in North Africa. There were also 200 interim Challenger tanks with the 17-pounder and other improved tank designs were under development. British and Commonwealth tank units in Normandy were initially equipped at the rate of one Firefly in a troop with three Shermans or Cromwells. This ratio increased until, by the end of the war, half of the British Shermans were Fireflies. The Comet with a gun similar to the 17-pounder had also replaced the 75 mm gun Sherman in some British units. The 17-pounder with APCBC shot was more or less equivalent in performance to the Panther’s 75 mm gun, but superior with APDS shot.

At the time, U.S. armor doctrine was dominated by the head of Army Ground Forces, Gen. Lesley McNair. An artilleryman by trade, he believed that tanks should concentrate on infantry support and exploitation roles and avoid enemy tanks, leaving them to be dealt with by the tank destroyer force, which was a mix of towed anti-tank guns and lightly armored fighting vehicles with open top turrets with 3-inch (76.2 mm) (M10 tank destroyer), 76 mm (M18 Hellcat) or later, 90 mm (M36 tank destroyer) guns. This doctrine led to a lack of urgency in the U.S. Army to upgrade the armor and firepower of the M4 Sherman tank, which had previously done well against the most common German tanks – Panzer IIIs and Panzer IVs – in Africa and Italy. As with the Soviets, the German adoption of thicker armor and the 7.5 cm KwK 40 in their standard armored fighting vehicles prompted the U.S. Army to develop the more powerful 76 mm version of the M4 Sherman tank in April 1944. Development of a heavier tank, the M26 Pershing, was delayed mainly by McNair’s insistence on “battle need” and emphasis on producing only reliable, well-tested weapons, a reflection of America’s 3,000 mi (4,800 km) supply line to Europe.

An AGF (Armored Ground Forces) policy statement of November 1943 concluded the following:

The recommendation of a limited proportion of tanks carrying a 90mm gun is not concurred in for the following reasons: The M4 tank has been hailed widely as the best tank of the battlefield today. ... There appears to be no fear on the part of our forces of the German Mark VI (Tiger) tank. There can be no basis for the T26 tank other than the conception of a tank-vs.-tank duel-which is believed to be unsound and unnecessary. Both British and American battle experience has demonstrated that the antitank gun in suitable numbers is the master of the tank. ... There has been no indication that the 76mm antitank gun is inadequate against German Mark VI tank.

U.S. awareness of the inadequacies of their tanks grew only slowly. All U.S. M4 Shermans that landed in Normandy in June 1944 had the 75 mm gun. The 75 mm M4 gun could not penetrate the Panther from the front at all, although it could penetrate various parts of the Panther from the side at ranges from 400 to 2,600 m (440 to 2,840 yd). The 76 mm gun could also not penetrate the front hull armor of the Panther, but could penetrate the Panther turret mantlet at very close range. In August 1944, the HVAP (high velocity armor-piercing) 76 mm round was introduced to improve the performance of the 76 mm M4 Shermans. With a tungsten core, this round could still not penetrate the Panther glacis plate, but could punch through the Panther mantlet at 730 to 910 m (800 to 1,000 yd), instead of the usual 91 m (100 yd) for the normal 76 mm round. However, tungsten production shortages meant that this round was always in short supply, with only a few rounds available per tank, and some M4 Sherman units never received any.

Whereas Sherman tanks used a high flash powder, making it easier for German tankers to spot them, German tanks used a low flash powder, making it harder for Allied crews to spot them. Shermans, even though they were around 15 tons lighter than Panthers, had worse cross country mobility due to their narrower tracks. A US corporal stated:

I saw where some Mk V tanks crossed a muddy field without sinking the tracks over five inches, where we in the M4 started across the same field the same day and bogged down.

The 90 mm M36 tank destroyer was introduced in September 1944; the 90 mm round also proved to have difficulty penetrating the Panther’s glacis plate, and it was not until an HVAP version of the round was developed that it could effectively penetrate it from combat range. It was very effective against the Panther’s front turret and from the side, however.

The high U.S. tank losses in the Battle of the Bulge against a force largely of Panther tanks brought about a clamor for better armor and firepower. At General Eisenhower’s request, only 76 mm gun-armed M4 Shermans were shipped to Europe for the remainder of the war. Small numbers of the M26 Pershing were also rushed into combat in late February 1945. A dramatic newsreel film was recorded by a U.S. Signal Corps cameraman of an M26 stalking and then blowing up a Panther in the city of Cologne, after the Panther had knocked out two M4 Shermans.

The production of Panther tanks and other German tanks dropped off sharply after January 1945, and eight of the Panther regiments still on the Western Front were transferred to the Eastern Front in February 1945. The result was that, for the rest of the war during 1945, the greatest threats to the tanks of the Western Allies were no longer German tanks, but infantry anti-tank weapons, such as the Panzerschreck and Panzerfaust, infantry anti-tank guns, such as the ubiquitous 7.5 cm Pak 40, and tank destroyers, such as the Marder, StuG III, StuG IV, and Jagdpanzer. A German Army status report dated 15 March 1945 showed 117 Panthers left in the entire Western Front, of which only 49 were operational.

The early impetus for upgrading the Panther came from the concern of Hitler and others that it lacked sufficient armor. Hitler had already insisted on an increase in its armor once, early in its design process in 1942. Discussions involving Hitler in January 1943 called for further increased armor; initially referred to as Panther 2 (it became the Panther II after April 1943). This upgrade increased the thickness of the glacis plate to 100 mm (3.9 in), the side armor to 60 mm (2.4 in), and the top armor to 30 mm (1.2 in). Production of the Panther 2 was slated to begin in September 1943.

On 10 February 1943, Dr. Wiebecke (chief design engineer for M.A.N.) suggested thoroughly redesigning the Panther II and incorporating Tiger components such as the steering gears, final drive, entire suspension and turret based on Eastern Front experience. Total weight would increase to more than 50 metric tons. Another meeting on 17 February 1943 focused on sharing and standardizing parts between the Tiger II tank and the Panther 2, such as the transmission, all-steel roadwheels, and running gear. Additional meetings in February began to outline the various components, including a suggestion to adopt the King Tiger’s hard-hitting 8.8 cm KwK 43 L/71 gun, however it was ultimately decided to continue use of the production Panther’s 7.5 cm KwK 42 L/70 gun. In March 1943, MAN indicated that the first prototype would be completed by August 1943. A number of engines were under consideration, among them the new Maybach HL 234 fuel-injected engine (900 hp operated by an 8-speed hydraulic transmission) and the BMW 003 aviation turbojet-derived, GT 101 turbo shaft powerplant, planned to be of some 1,150 shaft horsepower output.

Thus, plans to replace the original Panther design with the Panther II were already underway before the first Panther had even seen combat. But from May to June 1943, work on the Panther II ceased as the focus was shifted to expanding production of the original Panther tank. It is not clear if there was ever an official cancellation – this may have been because the Panther II upgrade pathway was originally started at Hitler’s insistence. The direction that the design was headed would not have been consistent with Germany’s need for a mass-produced tank, which was the goal of the Reich Ministry of Armament and War Production.

One Panther II chassis was completed and eventually captured by the U.S.; it is now on display at the Patton Museum in Fort Knox. An Ausf G turret is mounted on this chassis.

After the Panther II project died, a more limited upgrade of the Panther was planned, centered around a re-designed turret. The Ausf F variant was slated for production in April 1945, but the end of war ended these plans.

The earliest known redesign of the turret was dated 7 November 1943 and featured a narrow gun mantlet behind a 120 mm (4.7 in) thick turret front plate. Another design drawing by Rheinmetall dated 1 March 1944 reduced the width of the turret front even further; this was the Turm-Panther (Schmale Blende) (Panther with narrow gun mantlet).

Several experimental Schmaltürme (literally: “narrow turrets”) were built in 1944 with modified versions of the production Panther’s 7.5 cm KwK 42 L/70 standard gun, which were given the designation of KwK 44/1. A few were captured and shipped back to the U.S. and Britain. One badly damaged vehicle is on display at the Bovington Tank Museum. It had been used as a post-war range target until its historical significance was recognized.

The Schmalturm had a much narrower front face of 120 mm (4.7 in) armor sloped at 20 degrees; side turret armor was increased to 60 mm (2.4 in) from 45 mm (1.8 in); roof turret armor increased to 40 mm (1.6 in) from 16 mm (0.63 in); and a bell shaped gun mantlet similar to that of the Tiger II was used. This increased armor protection also had a slight weight saving due to the overall smaller size of the turret.

The Panther Ausf F would have had the Schmalturm, with its better ballistic protection, and an extended front hull roof which was slightly thicker. The Ausf F’s Schmalturm was to have a built-in stereoscopic rangefinder — using twin matching armored blisters, one on each turret side, much like the Americans’ post-war M47 Patton tank — and lower weight than the original turrets. A number of Ausf F hulls were built at Daimler-Benz and Ruhrstahl-Hattingen steelworks; however there is no evidence that any completed Ausf F saw service before the end of the war.

Proposals to equip the Schmalturm with the 8.8 cm KwK 43 L/71 were made from January through March 1945. These would have likely equipped future German tanks but none were built, as the war ended.

The E series of tanks — E-10, E-25, E-50, E-75, E-100 (the numbers designated their weight class) – was proposed to further streamline production with an even greater sharing of common parts and simplification of design. In this scheme, the Panther tank would have evolved into the E-50. A conical spring system was proposed to replace the complex and costly dual torsion bar system. The Schmalturm would have been used, likely with a variant of the 8.8 cm L/71 gun.

Although a technologically sophisticated vehicle, the Panther’s design had a very limited influence on postwar tank development. The French postwar AMX 50 tank prototype was indirectly influenced by it through the Entwicklung series, but never entered series production. It is claimed that the Panther was arguably a “forbearer” to the modern main battle tank.

The Panther itself also saw some limited use outside the German military, both before and after 1945.

During the war, the Red Army employed a number of captured Panthers. These were repainted with prominent Soviet emblems and tactical markings to avoid friendly fire incidents. The Red Army still used a few Panthers as late as spring 1945. Unlike captured Panzer IVs and StuGs, the Soviets generally only used Panthers and Tigers that had been captured intact and used them until they broke down, as they were too complex and difficult to transport for repair. Panzer IVs and StuGs, on the other hand, were so numerous in terms of spare parts and easy to repair that they could be used over a much longer period in combat conditions.

During March–April 1945, Bulgaria received 15 Panthers of various makes (D, A and G’s) from captured and overhauled Soviet stocks; they only saw limited (training) service use. They were dug down, with automotive components removed, as pillboxes along the Bulgarian-Turkish border as early as the late 1940s. The final fate of these pillbox Panthers is unknown, but sources indicate that they were replaced and scrapped in the 1950s.

In May 1946, Romania received 13 Panther tanks from the USSR. They were initially used by the 1st Armored Brigade, but in 1947 the equipment was ceded to the Soviet-organized “Tudor Vladimirescu Division,” which was transformed from a volunteer infantry division into an armored one. The Panther tank was officially known as T-5 in the army inventory. These tanks were in poor shape and remained in service until about 1950, by which time the Romanian Army had received T-34-85 tanks. All of the tanks were scrapped by 1954. The tanks were different models: Ausf A, Ausf D and Ausf G. They were shown to the public in 1948, during the 1st of May parade in Bucharest, painted with Romanian markings. Until 1950, the T-5 was the heaviest tank available to the Romanian Army.

One captured vehicle (named “Cuckoo”) also saw service with the British Coldstream Guards for some time.

Germany sold Japan a single Panther along with a Tiger in September 1943; however, by the time that it was ready in 1944, it was impossible to ship due to Allied Naval interdiction.

After the war, France was able to recover enough operable vehicles and components to equip the French Army’s 503e Régiment de Chars de Combat with a force of 50 Panthers. These remained in service until about 1950, by which time they had all been replaced by French-built ARL 44 heavy tanks.

In 1946, Sweden sent a delegation to France to examine surviving specimens of German military vehicles. During their visit, the delegates found a few surviving Panthers and had one shipped to Sweden for further testing and evaluation. Testing continued until 1961. The tank is currently on display in the Deutsches Panzermuseum in Munster.

The last ‘production’ Panthers were produced at the factory by German staff just after the end of World War II under the supervision of the Royal Electrical and Mechanical Engineers (REME) using available components. A complete Panther and a complete Jagdpanther produced this way were shipped back to Britain for post-war trials. Both vehicles are now at the Bovington Tank Museum, Dorset, with brass plates on them, explaining their history.

The French army used captured Panther tanks from 1944 to 1947, making it the operator with the longest experience with the vehicles. They were used by the 501st and 503rd Tank Regiments. In 1947, the French War Ministry wrote an evaluation of them entitled Le Panther 1947. The Panther was not considered a strategic tank by the French because of its high breakdown rate.

Some excerpts from the report:

The turret traverse drive is not strong enough to either turn the turret or hold it in place when the Panther is on an incline of more than 20 degrees. The Panther is therefore not capable of firing when driving cross-country.

Elevating the gun is normally simple, but made difficult if the pneumatic assist operated by compressed nitrogen has lost pressure.

The clarity and ranging reticles of the periscope gun sight was excellent and more effective than of the allied counterpart, the Sherman. Aside from his periscope gun sight, the gunner has no other type of observation device. He is therefore practically blind, one of the greatest shortcomings of the Panther.

The commander’s cupola with its 7 periscopes provides a nearly perfect all-round visibility. Periscopes damaged by shells can be replaced very quickly.

A scissors periscope with large magnification power was affixed to a bracket in the commander’s cupola.

The gunsight with two magnification stages is remarkably clear and has its field of view clear in the centre. The gunsight enables observation of a target and shells out to over 3,000 m (3,300 yd).

Once the commander has located a target, it takes between 20 and 30 seconds until the gunner can open fire. This data, which is significantly greater than that of the Sherman, stems from the absence of a periscope for the gunner.

A smoke grenade thrown onto the rear deck or the vent openings of the engine will start a fire.

The running gear is sensitive to HE shells. Calibres 105 mm and greater can render the vehicle immobile (Rammersmatt, 8 December 1944).

Fragmentation shells or 75 mm rounds which strike in the same spot on the front plate can penetrate it or cause the weld seams to break (Miinsingen, 1946).

During rapid rate of fire it is not uncommon to be forced to break off firing when the recoil of the gun has reached its permissible limit (cease fire).

A rate of fire of 20 rounds per minute is only permitted in exceptional cases when circumstances so dictate. When firing off a round the chassis demonstrates no unfavorable reaction, regardless of what position the turret is in.

The fatigue life of the mechanical parts was designed for 5,000 km (3,100 mi). The wear on many parts is greater than expected. Track and running gear have a life of 2,000–3,000 km (1,200–1,900 mi). Tracks break very rarely, even on rocky terrain. The bogie wheels, however, can become deformed when driven hard. The parts of the power train (with the exception of the final drive) meet the planned fatigue life. The replacement of a transmission requires less than a day.

The major drawback of the vehicle was its weak automotive drive train. The final drive only had a life of 150 km (93 mi). Half of the Panthers found in Normandy were abandoned due to their final drives breaking down. For that reason the Germans tried to move the Panthers by train as much as possible even for short journeys of 25 km (16 mi).

The French managed to operate the Panther for several years. Their assessment of the Panther, drawn from their considerable experience with it, provides a practical and balanced view. It was suited for the defensive battles that the Germans found themselves in from 1944–45, where its thick frontal armor and long range gun could be put to good use. However, the lack of gunner’s periscope delayed the engagement time in close range. More importantly, its mechanical drawbacks meant that it could not carry out sustained offensive operations, unlike the German Panzer IV, the Soviet T-34, the American Sherman or the British Cromwell.

Type: Medium tank

Place of origin: Nazi Germany

In service:

1943–1945 (Nazi Germany)

1944–1947 (France)

Used by:

Nazi Germany

France

Limited use by other militaries (see Postwar and foreign use)

Wars: World War II

Designer: MAN AG

Designed: 1942

Manufacturer: MAN; Daimler-Benz; MNH

Unit cost:

117,100 Reichmarks (Without weapons, optics, or radio)

176,100 Reichmarks (combat ready)

Produced:

1943–1945

1946 (9 postwar for the British Army)

Number built: about 6,000

Variants:

Ausf. D

Ausf. A

Ausf. G

Befehlspanzer (command tank)

Beobachtungspanzer (artillery observer vehicle)

Bergepanther (armored recovery vehicle)

Mass: 44.8 tonnes (44.1 long tons; 49.4 short tons)

Length:

6.87 m (22 ft 6 in)

8.66 meters (28 ft 5 in) gun forward

Width:

3.27 m (10 ft 9 in)

3.42 m (11 ft 3 in) with skirts

Height: 2.99 m (9 ft 10 in)

Crew: 5 (driver, radio-operator/hull machine gunner, commander, gunner, loader)

Armor: All angles from horizontal.

Hull front:

lower: 60 mm (2.4 in) at 35°

upper: 80 mm (3.1 in) at 35°

Ausf. G: lower Hull front reduced to 50 mm (2.0 in)

Hull side:

lower: 40 mm (1.6 in) at 90°

upper: 40 mm (1.6 in) at 50°

Ausf. G: upper Hull side changed to 50 mm (2.0 in) at 60°

Hull rear: 40 mm (1.6 in) at 60°

Turret front: 100 mm (3.9 in) at 78°

Turret side: 45 mm (1.8 in) at 65°

Turret rear: 45 mm (1.8 in) at 65°

Turret top: 16 mm (0.63 in) at 5°

Gun mantlet: 100 mm (3.9 in) rounded

Main armament:

Main gun: 7.5 cm Kwk 42 L/70

Turret traverse rate: 24°/second

Elevation: +18°/-8°

Rounds carried: 79

Ausf. G: 82

Primary gun sight: Leitz TZF 12

Ausf. A and G: TZF 12a

Magnification: 2.5×/5×

Field of view: 28°/14°

Secondary armament: 2 × 7.92 mm MG 34 machine guns with 5,100 rounds

Radio equipment:

Fu 5 transmitter/receiver

Fu 2 receiver

Engine and transmission:

Maybach HL 230 P30 V-12, four-stroke internal combustion

Displacement: 23.095 liters (1,409.3 cu in)

Compression ratio: 6.8:1

Fuel: petrol, 74 octane

Power: 700 metric horsepower (690 hp) at 3,000 rpm

Fuel consumption: 3.5 l/km (0.81 mpg‑imp; 0.67 mpg‑US) on roads

Fuel capacity: 730 l (160 imp gal; 190 US gal)

Transmission: ZF AK 7-200 synchromesh manual coupled through Fichtel & Sachs LAG 3/70H clutch

Gears: 7 forward, 1 reverse

Steering: MAN single-radius clutch-brake

Steering ratio: 1:1.5

Suspension: double torsion bar, interleaved road wheels

Fuel capacity: 720 liters (160 imp gal; 190 US gal)

Operational range:

Road: 200 km (120 mi)

Cross-country: 100 km (62 mi)

Maximum speed:

55 km/h (34 mph) (first models)

46 km/h (29 mph) (later models)

Obstacle crossing:

Vertical obstacle: 0.9 m (2 ft 11 in)

Trench crossing: 2.45 m (8 ft 0 in)

Fording: 1.9 m (6 ft 3 in)

Suspension and tracks:

Type: dual torsion-bar

Shock absorbers: on 2nd and 7th swing arms on either side

Track type: Kgs 64/660/150 dual center guide

Track width: 660 mm (26 in)

Ground contact length: 3.92 m (12 ft 10 in)

Track links: 86

Ground pressure: 0.86 kg/cm²

Battalion Organization

From September 1943, one Panzer battalion with 96 Panthers constituted the Panzer regiment of a Panzer-Division 43.

Battalion Command (composed of Communication and Reconnaissance platoons)

Communication Platoon – 3 × Befehlswagen Panther Sd.Kfz. 267/268

Reconnaissance Platoon – 5 × Panther

1st Company – 22 × Panther

Company Command – 2 × Panther

1st Platoon – 5 × Panther

2nd Platoon – 5 × Panther

3rd Platoon – 5 × Panther

4th Platoon – 5 × Panther

2nd Company – 22 × Panther (composed as 1st Company)

3rd Company – 22 × Panther (composed as 1st Company)

4th Company – 22 × Panther (composed as 1st Company)

Service Platoon – 2 × Bergepanther Sd.Kfz. 179

From 3 August 1944, the new Panzer-Division 44 organization called for a Panzer division to consist of one Panzer regiment with two Panzer battalions – one of 96 Panzer IVs and one of 96 Panthers. Actual strengths tended to differ, and became far lower after losses.

Derived Vehicles

Jagdpanther: heavy tank destroyer with the 8.8 cm L/71

Befehlspanzer Panther: command tank with additional radio equipment

Beobachtungspanzer Panther: artillery observation tank; dummy gun; armed with only two MG 34

Bergepanther: armored recovery vehicle

Flakpanzer Coelian: self-propelled anti-aircraft gun project, planned to be armed with twin Flak 43 37 mm AA guns in an armored turret

Surviving Vehicles

In Working Order

Military Vehicle Technology Foundation, USA: Ausf. A

Musée des Blindés, France: Ausf. A

Deutsches Panzermuseum, Munster, Germany: Ausf. A Command Tank

Wehrtechnische Studiensammlung, Koblenz, Germany: Ausf. G. Completed after the war in the Panther factory under supervision by UK REME engineers, used for tests

Friedrich Christian Flick Private Collection, Germany: Ausf. G. Completed after the war in the Panther factory under supervision by UK REME engineers, used for tests

Kubinka Tank Museum, Russia: Ausf. G

More or Less Intact, but not in Working Order

Wilhelmina park, Breda, The Netherlands: The only known complete surviving Ausf. D. This tank was donated by the Polish 1st Armored Division after liberating Breda. It was restored in 2004–2005 for static display by Kevin Wheatcroft in exchange for its automotive components.

Panzermuseum Thun, Thun, Switzerland: Advertised as an Ausf. D/G hybrid, with a D hull and G turret. There are many questions surrounding this vehicle. The turret has a replacement sheet metal mantlet, vaguely resembling a late Ausf. G mantlet, with no ports for gunners sight or coaxial MG. The pistol port on the turret rear indicates an Ausf. An or early Ausf G. The hull with the “letterbox” MG slot indicates an Ausf. D or early Ausf. A. The turret and hull numbers could help identify the correct model designation for the hybrid but neither of the numbers have been made public.

The Wheatcroft Collection, private collector, UK: The collection has three Panthers, one being restored. Early Ausf. A (DEMAG production).

Canadian War Museum: In January 2008 a partially restored Panther Ausf. A was put on display. It had been donated to the museum from CFB Borden, which acquired it following V-E celebrations in May 1945. It had spent two years in restoration prior to being put on public display.

Rex & Rod Cadman Collection, UK: Ausf. A

Sinsheim Auto & Technik Museum, Sinsheim, Germany: Ausf. A

Musée des Blindés, Saumur, France: Ausf. A, Ausf. G

Mourmelon-le-Grand, France: Ausf. A

Bovington Tank Museum, UK: Ausf. G. Completed after the war in the Panther factory under supervision by UK REME engineers, used for tests.

Houffalize in the Ardennes region of Belgium: A Panther Ausf. G can be found in the village. It fell into the river during the Battle of the Bulge and was later retrieved as a memorial.

The National War and Resistance Museum, Overloon, Netherlands: Has an Ausf. G that was knocked out by a PIAT projectile during the battle of Overloon.

U.S. Army’s National Armor & Cavalry Museum, Fort Benning, GA, USA: Collection consists of the following 4 Panthers: Pz V Ausf. A; Pz V Ausf. G; Pz V Ausf. G with chin; & Panther II. Several of these were part of the Ordnance collection that was at Aberdeen, MD

Private collector, Heikendorf, Germany: In July 2015 a Panther was found in the basement of a private residence near Kiel. Along with other weapons, it was seized by the police and later transported away by the Bundeswehr.

Wrecks

Sinsheim Auto & Technik Museum, Sinsheim, Germany: Ausf. A

Overlord Museum, Colleville-sur-Mer (ex-Falaise August 1944 museum), France: Ausf. A. Will be cosmetically restored and displayed in the new museum in a diorama representing a field repair unit of the Wehrmacht, along with a Strabo Fries gantry.

Kevin Wheatcroft, private collector, UK: Two Ausf. A, one to be restored and one to be restored to Ausf. D

Grandmenil, Belgium: Ausf. G

Celles, Houyet, Belgium: Ausf. G

Bibliography

• Anderson, Thomas (2017). Panther. Osprey Publishing.
• Docherty, Richard (2013). British Armoured Divisions and their Commanders 1939 - 1945. Pen & Sword.
• Doyle, Hilary; Jentz, Tom (1997). Panther Variants 1942-45. London: Osprey.
• Forczyk, Robert (2007). Panther Vs T-34: Ukraine 1943. Reading: Osprey Publishing.
• Green, Michael; Anderson, Thomas; Schulz, Frank (2000). German Tanks of World War II in color. Osceola, WI: MBI.
• Green, Michael (2005). Panzers at War. Zenith Press.
• Green, Michael; Green, Gladys (2012). Panther: Germany's quest for combat dominance. Oxford, UK: Osprey Publishing.
• Hart, Stephen (2003). Panther Medium Tank 1942-45. Osprey Publishing (UK).
• Healy, Mark (2008). Zitadelle: The German Offensive Against the Kursk Salient 4–17 July 1943. History Press.
• Jentz, Thomas (1995). Germany's Panther Tank: The Quest for Combat Supremacy. Atglen, PA: Schiffer Military History.
• Jentz, Thomas (1996). Panzertruppen 2: The Complete Guide to the Creation & Combat Employment of Germany's Tank Force 1943-1945. Schiffer.
• Jentz, Thomas (1997). Germany's Tiger Tanks - VK45.02 to Tiger II. Atglen: Schiffer Pub.
• Jentz, Thomas (1997). Germany's Tiger Tanks - Tiger I and Tiger II: Combat Tactics. Atglen: Schiffer Pub.
• Jentz, Thomas (2000). Germany's Tiger Tanks: D.W. to Tiger I. Atglen: Schiffer Pub.
• Ruggles, Richard; Brodie, Henry (March 1947). "An empirical approach to economic intelligence in WWII". Journal of the American Statistical Association. American Statistical Association. 42 (237): 72–91.
• Rust, Ken C (1967). The Ninth Air Force in World War II. Fallbrook, CA: Aero Publishers.
• Scafeş, Cornel I; Şerbănescu, Horia Vladimir; Scafeş, Ioan I (2005). Trupele Blindate din Armata Română 1919-1947 (in Romanian). Bucureşti: Editura Oscar Print.
• Speer, Albert (2009). Inside the Third Reich. Ishi Press. p. 325.
• Spielberger, Walter (1993). The Panther & Its Variants. West Chester: Schiffer Publishing.
• Wilbeck, Christopher (2004). Sledgehammers: Strengths and Flaws of Tiger Tank Battalions in World War II. Aberjona Press.
• Zaloga, Steven (1984). Soviet Tanks and Combat Vehicles of World War Two. London: Arms and Armour Press.
• Zaloga, Steven (1994). T-34/76 Medium Tank 1941-1945. London: Osprey Publishing.
• Zaloga, Steven (1994). IS-2 Heavy Tank 1944-73. London: Osprey Publishing.
• Zaloga, Steven (1998). Soviet Tanks of the Great Patriotic War. Concord Publications.
• Zaloga, Steven (2007). Japanese Tanks 1939-45. Reading: Osprey Publishing.
• Zaloga, Steven (2008). Armored Thunderbolt. Mechanicsburg, PA: Stackpole.
• Zaloga, Steven (2008). Panther vs. Sherman: Battle of the Bulge 1944. Oxford, UK: Osprey Publishing.
• Zaloga, Steven (2015). Armored Champion: The Top Tanks of World War II. Mechanicsburg, PA: Stackpole.
• Zetterling, Niklas; Frankson, Anders (2000). Kursk 1943: A Statistical Analysis. London: Frank Cass.
• "Germany's Panzerkampfwagen V, Panther, Sd.Kfz. 171". World War II Vehicles, Tanks and Airplanes. Archived from the original on 11 August 2013.



Panther of the Wiking Armored Division in Eastern Poland, July 1944. (Colorized)

PzKpfw V Ausf A.

Panther Ausf. D tanks, 1943. The D model can best be recognized by the drum-shaped cupola.

Colonel Karl Lorenz, Commander of the “Großdeutschland” regiment, meeting with the five-man crew of a Panzerkampfwagen V “Panther” (Turret Number “0”) in south Russia; KBZ HG south Ukraine (Army Group South Ukraine, Communications and Meetings Center), January 1944.

PzKpfw V Ausf D2 production heavy tank.

Panzerkampfwagen V Ausf A.

Early model PzKpfw V “Panther” being off-loaded from a railcar.

Smoke drifts overhead as a Panther from 2nd Kompanie, SS Panzer Regiment 1 approaches Stoumont, passing an abandoned 76mm anti-tank gun beside the La Gleize-Stoumont road, 19 December 1944.

A crewman comes away from a burning Panzerkampfwagen V, Belgium, 17 December 1944.

Panzerkampfwagen V, burning after being hit by British anti-tank weapons, Normandy, 1944.

A German PzKpfw V Ausf G “Panther” tank moves into American lines, but the motive power is an M25 tank transporter (536720) nicknamed “Dry Run,” operated by an Ordnance crew. France, 1 August 1944.

In the outskirts of Stoumont the leading Panther has received a direct hit and starts to burn. Alert to the danger, the commander of the second tank, head exposed, cons his Panther forward. All these shots were actually taken in combat on 19 December 1944 during the Ardennes Offensive.

A Panther commander urges some prisoners out of his path as he negotiates the narrow village street in Stoumont during the Ardennes Offensive, December 1944. Note the camouflage paint and foliage on the turret.

Edging down the narrow street of Stoumont, a Panther is waved forward to support the grenadiers during the Ardennes Offensive, December 1944. Note heavy foliage camouflage, loose side skirt plate, and jerrycan slung on turret.

PzKpfw V Panthers move along a road in Belgium during the Ardennes Offensive, December 1944.

Panzerkampfwagen V of Panzer-Abteilung 5 passing anti-tank obstacles of the Westwall near Weissenburgduring during Unternehmen Nordwind in January 1945. Note unusual winter camouflage scheme.

Panzerkampfwagen V Panther, 9th SS “Hohenstaufen” Panzer Division. The “212” tactical number identifies it as the second tank of the 1st platoon in the 2nd company. It was lost in the vicinity of Sterpigny / Baclain / Verluemont, Belgium, in December 1944.

Another view of the same Panther as in the previous photo. Note the pine branches used as camouflage for the vehicle and the size and placement of the German cross.

Another view of the same Panther as the previous photo.

The fate of many a PzKpfw V Panther is exemplified by this burnt out Ausf. A; neither its extra camouflage nor well-sloped armor has saved it from Allied firepower. It has been strung with chicken wire for attaching camouflage garnish.

A PzKpfw V Panther (left) and a Tiger II from Peiper’s kampfgruppe, burned out and abandoned in La Gleize after the Ardennes Offensive.

PzKpfw V Ausf G, Grossdeutschland Division, Eastern Front, August 1944.

PzKpfw V Ausf G.

Panzerkampfwagen V tank being examined by American officers of the 2nd Armored Division after being knocked out during the Battle of the Bulge. Grandmenil, Belgium, 1945.

Beobachtungspanzer Panther artillery observation vehicle.

American soldiers pose on a PzKpfw V “Panther.”

Local children playing on an abandoned Panzerkampfwagen V.

PzKpfw V.

Flames roar from within Wilhelm Bartelborth’s Panther after Clarence Smoyer’s third armor-piercing shot strikes home. Such fires were generally the result of on-board ammunition “cooking off.”

Another picture showing the burning Panther and the theater.

Days after the battle, the burned-out hulk of Oberleutnant Wilhelm Bartelborth’s Panther tank sits in the square in front of Cologne Cathedral. The tank burned for several days after being hit three times by American tank gunner Clarence Smoyer in his T26E3 Pershing.

The Panther tank at the cathedral.

Once again the Panther tank at the cathedral. This and other pictures were taken by Jim Bates on 7 March 1945, when Bates and other reporters were taking pictures around the cathedral.

A documentary film about the life of Jim Bates, the Army photographer who took the famous Cologne footage, revealed that three of the crew died outside of the tank. A letter received from another soldier who looked through one of the shell holes said he saw one burned to death inside the tank. Apparently none of them survived the ordeal.

Another view of the same Panther.

Cologne, Germany. Cpl. Luther E. Boger, Concord, N.C., skytrooper, reads a warning sign in the street. This street leads to the Rhine River and is under observation of the Germans who occupy a stronghold there. Cpl. Boger is with the 82nd Airborne Division. 4 April 1945. The German tank is burnt out and the torsion bars have been destroyed by the immense heat of the fire. Text on sign reads: SIGHT SEERS KEEP OUT! Beyond this point you draw fire on our FIGHTING MEN - HE RISKS HIS LIFE 24 HOURS A DAY - DO YOU??

Another view of the same Panther.

PzKpfw V “Panther” knocked out in front of Cologne cathedral. American soldiers move cautiously forward checking the area for snipers. The sign in the above photo is seen here attached to the Panther with a pipe or wood pole. This photo was taken by a member of No. 400 Squadron, RCAF.

Two American soldiers, possibly the same two approaching the Panther in the previous photo, are with the tank. Note that the sign's attachment device is visible at far left.

Four members of No. 400 Squadron, RCAF, pose on the Panther tank despite the warning sign partially visible to them to the left.  This photo was taken by a member of No. 400 Squadron, RCAF.

Area now deemed clear of enemy activity, a support truck parks alongside the Panther tank. This photo was taken by a member of No. 400 Squadron, RCAF.

A sign warning sightseers to keep out has been attached to the Panther tank. This photo was taken by a member of No. 400 Squadron, RCAF.

The burned out hulk of a PzKpfw V “Panther” in front of the Cologne cathedral, 1945. Note the shell hole in the hull side.

Panther at Aberdeen Proving Ground, circa early 1970s.

Rear view of Panther at Aberdeen Proving Ground, circa early 1970s.

PzKpfw V in Germany.

PzKpfw V in France.

PzKpfw V Ausf D, near Monte Cassino, Italy.

PzKpfw V in Russia.

PzKpfw Vs, fourth company, “Wiking,” in Russia.

PzKpfw V, first company, “Wiking” in Russia.

PzKpfw V Ausf A, first company, “Wiking” in Russia.

PzKpfw V, second company, “Wiking” in Russia.

PzKpfw V Ausf G Panther.

PzKpfw V Ausf D.

PzKpfw Vs, Eastern Front, 1944-45.

PzKpfw V Ausf G, Normandy, 1944.

Von Manteuffel, in Schwimmwagen, stops to discuss matters with the crew of a PzKpfw V.

PzKpfw V Ausf A.

PzKpfw V Ausf A.

PzKpfw V Ausf A.

PzKpfw Vs undergoing maintenance.

Dug-in PzKpfw V Panther turret, part of the defenses of the Hitler Line. In the background can be seen the remains of the Benedictine monastery, Mount Cassino, bombed by Allied aircraft 15 February 1944.

A Panzerkampfwagen V Panther heavy tank with 7.5cm KwK 42 L/70 main gun, is being inspected by American soldiers. This tank, introduced in 1942, weighed 47 tons and had sloping frontal armor and a 75mm high velocity gun.

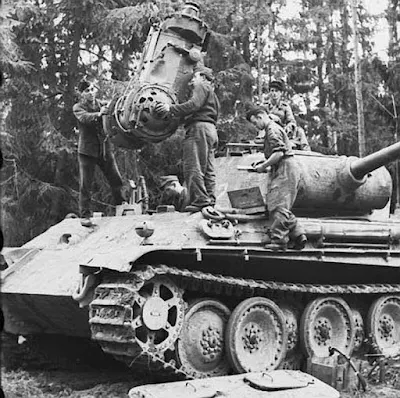

Engine change on a PzKpfw V.

Knocked out PzKpfw V Panther and SdKfz 251 half-track.

PzKpfw V Panthers.

A PzKpfw V “Panther” is given a new engine with the assistance of a half-track mounted crane.

PzKpfw V Ausf G Panther medium tank, “308,” eighth vehicle, headquarters, 3rd company, 1st battalion.

PzKpfw V Ausf A Panther medium tank.

PzKpfw V Panther II, Patton Museum, mid 1970s.

PzKpfw V Panther II, Patton Museum, mid 1970s.

PzKpfw V Panther II, Patton Museum, mid 1970s.

PzKpfw V Panther II, Patton Museum, mid 1970s.

Engine deck of the PzKpfw V Panther II, Patton Museum, mid 1970s.

Panzerkampfwagen V Panther, number 131, commanded by Oberscharführer Strelow, immobilized in an air attack on 18 December 1944 during the Ardennes Offensive. The Cheneux bridge is in the background.

Panzerkampfwagen V Panther, number 002, abandoned in La Gleize after the Ardennes Offensive, December 1944. The number would indicate it was a command tank of Peiper’s kampfgruppe headquarters.

Panzerkampfwagen V Panther, number 221, commanded by Hauptscharführer Knappisch, in La Gleize after the Ardennes Offensive, December 1944. It was damaged during the attack on Stoumont.

PzKpfw V Panther undergoing maintenance in the field.

Panzerkampfwagen V Panther in combat.

This Panther/M10 coded ‘B10’ made an unplanned entry into the cafe at La Falize during the Ardennes Offensive, December 1944; this photo gives a clear view of the clever general similarity to the American vehicle which was achieved with cladding plates—note that even the spare track links are attached in ‘American style.’

This Panther/M10, coded ‘B5’ as a vehicle of Co. B, 10th Tank Battalion, was disabled at Malmédy during the Ardennes Offensive by Pvt. Francis Currey, U.S. 120th Infantry, with a bazooka. Currey was to be awarded the Medal of Honor for his bravery on 21 December.

‘B7,’ the only Panther to reach the northern bank of the Ambléve at Malmédy during the Ardennes Offensive, December 1944. It was stopped only 50m from the bridge by a bazooka round in the engine compartment. The crew ran for safety across the bridge, but all were cut down by American fire except the radio operator, Obergefreiter Karl Meinhardt, who remained hidden for several days before being captured.

Another view of the Panther/M10 coded ‘B7,’ knocked out by a bazooka near the Warche bridge at Malmédy, 21 December 1944 during the Ardennes Offensive; Oberfeldwebel Bachmann and all but one of his crew from Panzer Regiment II, 6th Panzer Division, were killed as they tried to make their way back across the bridge on foot.

Panzerkampfwagen V Ausf. D.

Panzerkampfwagen V Ausf. G. Note the spare track on the engine deck and the missing muzzle brake.

The remains of a German strongpoint comprising a turret and 75mm L/70 gun from a Panzerkampfwagen V (Panther tank) guarding the road to Rimini, after the Desert Harassers fighter bomber aircraft of the veteran No. 450 (Kittyhawk) Squadron RAAF had paid a call. Inspecting the bomb damage are Leading Aircraftman Harry Hogg Brown (left), and Flight Lieutenant Douglas Lachlan Millar.

Local children play on an abandoned Panzerkampfwagen V.

Panzerkampfwagen V Ausf. D, 4th Panzer Regiment.

Good detail view of zimmerit anti-magnetic paste on a Panzerkampfwagen V.

Panzerkampfwagen V Ausf. G during the Ardennes Offensive.

Panzerkampfwagen V Ausf. G, France, 1944.

Panzerkampfwagen V, Italy, 1944.

Crewman of a Panzerkampfwagen V of the SS Panzer Division “Wiking.”

Panzerkampfwagen V, ‘123,’ with extra fuel drums on engine deck.

Panzerkampfwagen V Ausf. D among other vehicles of an armored division being transported by train.

Panzerkampfwagen V, Italy, 1944.

American troops inspecting a knocked out Panzerkampfwagen V, ‘331.’

4 Coldstream Guards with a captured Panther tank, formerly of the 107th Panzer Brigade, called “Cuckoo” (in operation until 23 February 1945, when it was damaged beyond repair). Geijsteren, Holland, 1944.

4 Coldstream Guards with a captured Panther tank, formerly of the 107th Panzer Brigade, called “Cuckoo”.

Panzerkampfwagen V, Eastern Front.

Soviet officer inspecting a knocked out Panzerkampfwagen V, ‘432', Eastern Front.

Albert Speer preparing to drive a Panzerkampfwagen V.

Panzerkampfwagen V on railroad flatcars headed for the front. The vehicle at right may be a Bergepanther.

Destroyed Panzerkampfwagen V. Lingevres, France, 19 June 1944.

Panzergrenadiers on heavily camouflaged Panzerkampfwagen V Ausf. G. France, 1944.

Mussolini exits a Pantherturm pillbox in Italy.

Early Panzerkampfwagen V Ausf. A.

Panzerkampfwagen V commander inside the turret.

Panzerkampfwagen V, 3rd SS Panzer Division “Totenkopf.”

Panzerkampfwagen V, ‘215.’ Italy.

Panzerkampfwagen V Ausf. D on railroad flatcar.

Panzerkampfwagen V Ausf. G. France, 1944.

Panzerkampfwagen V Ausf. G. France 1944.

Panzerkampfwagen V Ausf. D with crews.

Panzerkampfwagen V. Hungary.

Destroyed Panzerkampfwagen V Ausf. G with steel rimmed road wheels.

Panzerkampfwagen V Ausf. G.

Panzerkampfwagen V in Paris.

Panzerkampfwagen V ‘231’ being towed by two SdKfz 9 FAMO half-track recovery vehicles.

Panzerkampfwagen V Ausf. G, France, 1944.

Panzerkampfwagen V ‘135,’ Poland, 1944.

Early Panzerkampfwagen V Ausf. D.

Panzergrenadiers atop a heavily camouflaged Panzerkampfwagen V Ausf. G, France, 1944.

Panzerkampfwagen V assembly line.

Panzerkampfwagen V Ausf. A.

Panzerkampfwagen V Ausf. A.

Panzerkampfwagen V Befehlswagen command tank.

A sand-colored PzKpfw V leaving the factory, with Tiger tanks behind. The Panther shown is the Ausf D with early type cupola, and hull side skirts. Note visor hatch for driver and slit for machine gunner on nose.

PzKpfw V Ausf D1 Panther pre-production heavy tank.

Camouflaged Panzerturm, Italy.

Removing the roadwheel of a Panther, northern France.

Panther disguised as an American M10 tank destroyer, Ardennes offensive, 1944.

Ausf G Panthers under construction.

Panther, Eastern front, 1943.

Panther.

Panthers, Eastern front.

Panther Ausf G late mantlet detail.

Ausf G Panther with Sd.Kfz. 251.

Panther Ausf G with Vampir infrared night vision equipment.

Panther knocked out during the battle of Kursk, July 1943.

Panther of the 5th SS Panzer Division “Wiking” crossing a bridge.

Panther of the 2nd SS Panzer Division, Manhay, Belgium, December 1944.

Allied troops inspect captured German vehicles, including two Panthers and a Jagdpanther.

A Panther from the Wiking Division carrying infantrymen under fire, possibly from 5. Jäger-Division, during the defensive operations around Warsaw in August 1944. The soldier in the foreground is armed with a StG 44 assault rifle.

Three French boys looking at a knocked-out German Panther tank in the Falaise pocket, Normandy, 25 August 1944.

Panther.

A knocked-out German Panther likely from the Panzer Lehr Division in France. In the foreground a dead panzergrenadier has had a shelter half-placed over his upper torso.

A disabled Panther tank in the Ardennes. Note how slack the track at left is, and the road wheel damage. The American soldier is carrying an M1A1 Thompson submachine gun. It appears that the tank was retreating and firing to the rear when it got hit.

An abandoned late model Panther Ausf G with the ‘chin’ mantlet, belonging to the 1st SS Panzer Division Leibstandarte Adolf Hitler left in the woods of the Ardennes Forest, December 1944.

Panther.

Air liaison officers from the Ninth Air Force check out a Panther tank knocked out by P-38 Lightnings in the St. Vith, Belgium area.

Captured German Panther, Wyler, Germany, 9 February 1945.

Panther of the French 503e Regiment, 1947.

Under the cover of supporting fire from a Panther, panzergrenadiers of the Großdeutschland division storm a Soviet-held village.

Captured Panther being tested by British troops.

U.S. soldiers inspecting captured Panther, Normandy, 1944.

Colonel Karl Lorenz, commander of an infantry regiment of the Großdeutschland Division, talking to soldiers on the southern Eastern Front, mid-January 1944, alongside a Panther Ausf A.

Knocked out Panther in Volturno Valley, Italy.

Panthers and other German vehicles captured in Normandy, summer 1944.

Panther Ausf D.

Panther Ausf. A, 130.Panzer-Lehr-Division.

Destroyed Panther in Normandy.

Panther.

Panther.

Panther.

Panther disguised as an American M10 tank destroyer.

Panthers.

Panther in action on the Eastern Front, 1944.

Soviet soldiers examine a knocked out Panther, March 13, 1944.

Panther with track segments hung on the turret sides to augment the armor.

A captured Panther in Red Army use, August 1944.

Warsaw Uprising: Soldiers of tank platoon “Wacek” of “Zośka” Battalion on a German Panther tank around Okopowa Street. Sitting from the left: Zdzisław Moszczeński “Ryk” (according to source “Ryk” is standing first from left facing the tank), unknown, Jan Uniewski “Lumeński” (“Łuniewski” according to source), Mieczysław Kijewski “Jordan”, Jan Myszkowski Bagiński “Bajan” and Jan Zenka “Walek”.

Panthers, already with bush camouflage attached, being transported by rail to the front in France.

Panther with Schürzen partially attached. They were difficult to maintain in place when travelling through heavy brush.

Road gantry Strabokran, which was indispensable to maintain the Panther tank in the field.

Panther in the river at Houffalize, 1945.

American soldiers with knocked out Panther, displaying rounds from the vehicle.

German children play on a Panther Pantherturm III - Betonsockel, following Germany’s defeat and the fall of Berlin. The Pantherturm III - Betonsockel was a Panther tank turret with a concrete base in fixed, fortified positions that were dug into the ground to be used as a desperate defensive weapon during the Battle of Berlin. June 1945.

Panther of 7th Panzer Division, Kurland, 1944.

Panther Ausf D, Panzer-Regiment 4, I. Abteilung (I./Panzer-Regiment 26) 26. Panzer-Division. Italy, 1944.

Panther Ausf D, Panzer-Regiment 4, I. Abteilung (I./Panzer-Regiment 26) 26. Panzer-Division. Italy, 1944.

Panther “II01”.

Panther.

Panther.

Same Panther as above.

Curious GIs checking out a Panther.

Panther ‘316’ was captured during the battle of the Korsun Cherkassy Pocket, February 1944.

Panther Ausf D, 1943.

Panther Ausf D ‘734’, Panzergrenadier Division “Großdeutschland”, 1943.

Panther Ausf A ‘401’, Panzer Regiment 4, Italy, summer 1944.

Panther Ausf G ‘323’, 3./Pz.Lehr-Rgt. 130.

Panther Ausf A ‘215’, Panzer-Regiment 4, Rome, 1944.

Panthers Ausf D, Panzer Regiment 39, Kursk, 1943.

Panther “Annelies”, 116th Panzer Division, 1944.

Panther, Panzergrenadier Division “Grossdeutschland”, 1944.

Panther Ausf D ‘525’.

Panther ‘I14’, Rome, 1944.

Captured Panther Ausf D ‘R04’, HQ, Panzer Regiment 39, Kursk, 1943.

Panther Ausf G, 116th Panzer Division.

Pilots of 366th FG inspect Panther they knocked-out, 1944.

Panthers Ausf D.

Captured Panther Ausf G, Panzer Abteilung 2104, Panzer Brigade 104, 1944.

Early Panthers Ausf D at MAN factory, 1943.

Panther Ausf D.

Panther with Panzergrenadiers.

Panther Ausf A and SdKfz 251, 5th SS Panzer Division “Wiking”, 1944.

Panther Ausf A, 5th SS Panzer Division “Wiking”, August 1944.

Panther ‘523’, Panzergrenadier Division “Grossdeutschland”.

Captured Panther ‘323’ from PzLehrRgt 130.

Panther Ausf D ‘745’, Panzer Brigade 10, 1943.

Knocked-out Panther Ausf A in front of Beethoven Hall, Bonn, 1945.

White-washed Panther ‘I1’.

Destroyed Panther Ausf G, 1945.

Panther Ausf D ‘311’, Panzergrenadier Division “Großdeutschland”, Kursk, 1943.

Panther Ausf G ‘121’, Ardennes, 1945.

Panther Ausf D.

Camouflaged Panther, France, 1944.

Body of German soldier atop engine deck of destroyed Panther, Schalbach, France, 1944.

Panther ‘445’ and Tiger I ‘111’, Panzergrenadier Division “Grossdeutschland”.

Panther Ausf G, Overloon, Holland.

Panther turrets and guns, Maschinenfabrik Niedersachsen, Hannover MNH.

Panthers Ausf G, 116th Panzer Division, 1944.

Panther ‘I03’.

Panther Ausf D ‘102’ and Tiger I, “Grossdeutschland” Division.

Captured Panthers in service with the Soviet Army.

Panther Ausf D '434' 51st Panzer Battalion, Kursk, July 1943.

Panthers during the build-up for Kursk.

Panthers during the build-up for Kursk.

Knocked out Panther Ausf D 52nd Panzer Battalion and Sd.Kfz 263, Kursk, 1943.

Panther Ausf D.

The effect of a 152mm HE round against a Panther turret.

Destroyed Panther.

An armor piercing shell ricocheted off the bottom of the mantlet and penetrated the roof of the chassis and killed the driver or radio operator

The U.S. Army built a full-size wooden replica Panther tank to help train its troops in target recognition.

Front view of the American wooden mock-up of the Panzer V Panther tank.

Destroyed Panther.

Panther main gun and mantlet assembly.

Panzerkampfwagen V Ausf. F “Schmalturm”.

Production Panzerkampfwagen V Ausf. F “Schmalturm”.

Panther Ausf G.

A PzKpfw V Panther tank engaging attacking aircraft. The stowage consists of the crew’s canteens, cleaning kit for the machine gun and a ammunition crate for KWK 42 L70. Improvised camouflage can be seen on the roof of the turret as well. One of the crewmen mans the machine gun, as another crew member pulls the ammunition belt through as the gun is fired.

PzKpfw V Panther turret penetrated by a 122mm HE shell from a Soviet IS-2.

A cracked PzKpfw V Panther turret after being hit by three Sherman 75 mm HE rounds, June 1944.

PzKpfw V Panther destroyed by a Soviet ISU-152.

PzKpfw V Ausf G Panther.

Damaged PzKpfw V Panther tanks on railroad cars headed for a repair depot.

Panther Ausf D in the Ukrainian village during the Battle of the Korsun-Cherkassy Pocket .

American engineers check the area next to a knocked out PzKpfw V Ausf A Panther tank. St. Lo, France, 1944.

Florence, Italy. c. August 1944. Members of an all Australian Kittyhawk fighter bomber squadron operating from a central Italian airfield inspect a German Panzerkampfwagen V Ausf A (commonly known as a Panther A) tank blasted out of action and abandoned in the Florence area. Since the battle for Florence began RAAF members and their Kittyhawk aircraft have taken a heavy toll of enemy tanks, motor vehicles and railway trucks effectively cramping German transportation and ability to wage war.

Another view of the same Panther as shown in the previous photo.

Periers, France. American soldiers moving in to kill or capture the crew of a disabled German Panther tank.

Russian troops examine an abandoned PzKpfw V Panther Ausf D captured at Kursk, 1943.

Royal Engineers search for mines near a knocked out German Panther tank, near Villers Bocage, 4 August 1944.

A knocked-out German 75mm anti-tank gun and one of its gunners lying dead beside it. A disabled Panther tank is also visible in the background. Fontenay-le-Pesnel, 25 June 1944.

A knocked-out German Panther tank in the center of Lingevres, 20 June 1944.

Knocked-out German Panther tanks on the outskirts of Lingevres, 20 June 1944.

A Sherman tank of 24th Lancers, 8th Armoured Brigade, passing a knocked-out German PzKpfw V Panther tank near Rauray, 30 June 1944.

A German Panther tank lies among the ruins of Argentan, 21 August 1944.

A soldier inspects two knocked-out German PzKpfw V Panther tanks near Foy-Notre-Dame, Belgium, 29 December 1944.

A knocked-out German Panther tank is examined by British troops, Italy, 24 May 1944.

General Leese and other officers ride on a captured German PzKpfw V Panther tank during a display of enemy equipment, Italy, 2 June 1944.

Carriers of the Queen's Regiment drive through a cornfield as a German Panther tank burns in the background, during the advance towards Aunay-sur-Odon, 31 July - 1 August 1944.

Carriers of the Queen's Regiment drive through a cornfield as a German Panther tank burns in the background, during the advance towards Aunay-sur-Odon, 31 July - 1 August 1944.

A motorcycle despatch rider passes a knocked-out Sherman tank and behind, a German Panther at Fontenay-le-Pesnel, 27 June 1944.

A soldier inspects a burnt-out German PzKpfw V Panther tank near Trarivi in the Adriatic sector, 18 September 1944.

A half-track passes a knocked-out German Panther tank on a road near Tourville, 16 July 1944.

Men of the Durham Light Infantry, 49th (West Riding) Division 'advance' past a knocked-out German Panther tank during Operation 'Epsom', 27 June 1944.

A 6-pdr anti-tank gun crew of the Durham Light Infantry, 49th (West Riding) Division inspect a knocked-out German Panther tank during Operation 'Epsom', 27 June 1944.

'Cuckoo', a German Panther tank captured in running order by the 4th Coldstream Guards, seen here in action against Geijsteren castle on the banks of the Maas, 29 November 1944.

Overturned German Panther tank at Norrey-en-Bessin, 27 June 1944. The tank was probably up-ended during the Allied heavy bomber raid at the start of Operation 'Epsom'.

A knocked-out German Panther tank and a dead infantryman in the Falaise pocket, 25 August 1944.

Several rocket-firing Typhoons fly above a scene of devastation, with a number of damaged German tanks, including a Panther, and vehicles littering the side of a country road.

A German Panther tank turret which was abandoned before being emplaced in a defensive position on the Gothic Line, 3 September 1944. These turrets were built into a larger structure in which they could house ammunition and crew quarters. A total of 182 of these were installed in the fortifications of the Atlantic Wall and Siegfried Line (Westwall), 48 in the Gothic Line and Hitler Line, 36 on the Eastern Front, and two for training and experimentation, for a total of 268 installations by March 1945.

Panther Coelian (Type 1) Flakzwilling 44 based on Ausf. A (prototype).

Panther Coelian (Type 1) Flakzwilling 44 based on Ausf. A (prototype).

Panther Coelian (Type 1) Flakzwilling 44 based on Ausf. A (prototype).
