World War 2 In Review: USS Lexington (CV-2): American Aircraft Carrier

Lexington (CV-2) underway during the Battle of Coral Sea, 8 May 1942. This view appears to have been taken in the early afternoon, about 1430, after planes of VT-2 and escort had been recovered and initial damage control measures effected, but before the start of the fires that led to the ship's loss. This is the last known photograph of Lexington in operational condition. Note she is already down by the bow after being torpedoed]. Taken from Portland (CA-33).

USS Lexington (CV-2), nicknamed "Lady Lex," was an early aircraft carrier built for the United States Navy. She was the lead ship of the Lexington class; her only sister ship, Saratoga, was commissioned a month earlier. Originally designed as a battlecruiser, she was converted into one of the Navy's first aircraft carriers during construction to comply with the terms of the Washington Naval Treaty of 1922, which essentially terminated all new battleship and battlecruiser construction. The ship entered service in 1928 and was assigned to the Pacific Fleet for her entire career. Lexington and Saratoga were used to develop and refine carrier tactics in a series of annual exercises before World War II. On more than one occasion these included successfully staged surprise attacks on Pearl Harbor, Hawaii. The ship's turbo-electric propulsion system allowed her to supplement the electrical supply of Tacoma, Washington, during a drought in late 1929 to early 1930. She also delivered medical personnel and relief supplies to Managua, Nicaragua, after an earthquake in 1931.

Lexington was at sea when the Pacific War began on 7 December 1941, ferrying fighter aircraft to Midway Island. Her mission was cancelled and she returned to Pearl Harbor a week later. After a few days, she was sent to create a diversion from the force en route to relieve the besieged Wake Island garrison by attacking Japanese installations in the Marshall Islands. The island was forced to surrender before the relief force got close enough, and the mission was cancelled. A planned attack on Wake Island in January 1942 had to be cancelled when a submarine sank the oiler required to supply the fuel for the return trip. Lexington was sent to the Coral Sea the following month to block any Japanese advances into the area. The ship was spotted by Japanese search aircraft while approaching Rabaul, New Britain, and her aircraft shot down most of the Japanese bombers that attacked her. Together with the carrier Yorktown, she successfully attacked Japanese shipping off the east coast of New Guinea in early March.

Lexington was briefly refitted in Pearl Harbor at the end of the month and rendezvoused with Yorktown in the Coral Sea in early May. A few days later the Japanese began Operation Mo, the invasion of Port Moresby, Papua New Guinea, and the two American carriers attempted to stop the invasion forces. They sank the light aircraft carrier Shōhō on 7 May during the Battle of the Coral Sea, but did not encounter the main Japanese force of the carriers Shōkaku and Zuikaku until the next day. Aircraft from Lexington and Yorktown succeeded in badly damaging Shōkaku, but the Japanese aircraft crippled Lexington. Vapors from leaking aviation gasoline tanks sparked a series of explosions and fires that could not be controlled, and Lexington had to be scuttled by an American destroyer during the evening of 8 May to prevent her capture.

Lexington was the fourth US Navy ship named after the 1775 Battle of Lexington, the first battle of the Revolutionary War. She was originally authorized in 1916 as a Lexington-class battlecruiser, but construction was delayed so that higher-priority anti-submarine vessels and merchant ships, needed to ensure the safe passage of personnel and materiel to Europe during Germany's U-boat campaign, could be built. After the war the ship was extensively redesigned, partially as a result of British experience. Given the hull number of CC-1, Lexington was laid down on 8 January 1921 by Fore River Shipbuilding Company of Quincy, Massachusetts.

Before the Washington Naval Conference concluded, the ship's construction was suspended in February 1922, when she was 24.2 percent complete. She was re-designated and re-authorized as an aircraft carrier on 1 July 1922. Her displacement was reduced by a total of 4,000 long tons (4,100 t), achieved mainly by the elimination of her main armament of eight 16-inch (406 mm) guns in four twin turrets (including their heavy turret mounts, their armor, and other equipment). The main armor belt was retained, but was reduced in height to save weight. The general line of the hull remained unaltered, as did the torpedo protection system, because they had already been built, and it would have been too expensive to alter them.

The ship had an overall length of 888 feet (270.7 m), a beam of 106 feet (32.3 m), and a draft of 30 feet 5 inches (9.3 m) at deep load. Lexington had a standard displacement of 36,000 long tons (36,578 t) and 43,056 long tons (43,747 t) at deep load. At that displacement, she had a metacentric height of 7.31 feet (2.2 m).

Christened by Mrs. Theodore Douglas Robinson, the wife of the Assistant Secretary of the Navy, Lexington was launched on 3 October 1925. She was commissioned on 14 December 1927 with Captain Albert Marshall in command. By 1942, the ship had a crew of 100 officers and 1,840 enlisted men and an aviation group totaling 141 officers and 710 enlisted men.

The ship's flight deck was 866 feet 2 inches (264.01 m) long and had a maximum width of 105 feet 11 inches (32.28 m). When built, her hangar "was the largest single enclosed space afloat on any ship" and had an area of 33,528 square feet (3,114.9 m²). It was 424 feet (129.2 m) long and 68 feet (20.7 m) wide. Its minimum height was 21 feet (6.4 m), and it was divided by a single fire curtain just forward of the aft aircraft elevator. Aircraft repair shops, 108 feet (32.9 m) long, were aft of the hangar, and below them was a storage space for disassembled aircraft, 128 feet (39.0 m) long. Lexington was fitted with two hydraulically powered elevators on her centerline. The forward elevator's dimensions were 30 by 60 feet (9.1 m × 18.3 m) and it had a capacity of 16,000 pounds (7,300 kg). The aft elevator had a capacity of only 6,000 pounds (2,700 kg) and measured 30 by 36 feet (9.1 m × 11.0 m). Avgas was stored in eight compartments of the torpedo protection system, and their capacity has been quoted as either 132,264 US gallons (500,670 l; 110,133 imp gal) or 163,000 US gallons (620,000 l; 136,000 imp gal).

Lexington was initially fitted with electrically operated arresting gear designed by Carl Norden that used both fore-and-aft and transverse wires. The longitudinal wires were intended to prevent aircraft from being blown over the side of the ship while the transverse wires slowed them to a stop. This system was authorized to be replaced by the hydraulically operated Mk 2 system, without longitudinal wires, on 11 August 1931. Four improved Mk 3 units were added in 1934, giving the ship a total of eight arresting wires and four barriers intended to prevent aircraft from crashing into parked aircraft on the ship's bow. After the forward flight deck was widened in 1936, an additional eight wires were added there to allow aircraft to land over the bow if the landing area at the stern was damaged. The ship was built with a 155-foot (47.2 m), flywheel-powered, F Mk II aircraft catapult, also designed by Norden, on the starboard side of the bow. This catapult was strong enough to launch a 10,000-pound (4,500 kg) aircraft at a speed of 48 knots (89 km/h; 55 mph). It was intended to launch seaplanes, but was rarely used; a 1931 report tallied only five launches of practice loads since the ship had been commissioned. It was removed during the ship's 1936 refit.

Lexington was designed to carry 78 aircraft, including 36 bombers, but these numbers increased once the Navy adopted the practice of tying up spare aircraft in the unused spaces at the top of the hangar. In 1936, her air group consisted of 18 Grumman F2F-1 and 18 Boeing F4B-4 fighters, plus an additional nine F2Fs in reserve. Offensive punch was provided by 20 Vought SBU Corsair dive bombers with 10 spare aircraft and 18 Great Lakes BG torpedo bombers with nine spares. Miscellaneous aircraft included two Grumman JF Duck amphibians, plus one in reserve, and three active and one spare Vought O2U Corsair observation aircraft. This amounted to 79 aircraft, plus 30 spares.

The Lexington-class carriers used turbo-electric propulsion; each of the four propeller shafts was driven by two 22,500-shaft-horsepower (16,800 kW) electric motors. They were powered by four General Electric turbo generators rated at 35,200 kilowatts (47,200 hp). Steam for the generators was provided by sixteen Yarrow boilers, each in its own individual compartment. Six 750-kilowatt (1,010 hp) electric generators were installed in the upper levels of the two main turbine compartments to provide power to meet the ship's hotel load (minimum electrical) requirements.

The ship was designed to reach 33.25 knots (61.58 km/h; 38.26 mph), but Lexington achieved 34.59 knots (64.06 km/h; 39.81 mph) from 202,973 shp (151,357 kW) during sea trials in 1928. She carried a maximum of 6,688 long tons (6,795 t) of fuel oil, but only 5,400 long tons (5,500 t) of that was usable, as the rest had to be retained as ballast in the port fuel tanks to offset the weight of the island and main guns. Designed for a range of 10,000 nautical miles (19,000 km; 12,000 mi) at a speed of 10 knots (19 km/h; 12 mph), the ship demonstrated a range of 9,910 nmi (18,350 km; 11,400 mi) at a speed of 10.7 knots (19.8 km/h; 12.3 mph) with 4,540 long tons (4,610 t) of oil.

The Navy's Bureau of Construction and Repair was not convinced when the class was being designed that aircraft could effectively substitute as armament for a warship, especially at night or in bad weather that would prevent air operations. Thus the carriers' design included a substantial gun battery of eight 55-caliber Mk 9 eight-inch guns in four twin gun turrets. These turrets were mounted above the flight deck on the starboard side, two before the superstructure, and two behind the funnel, numbered I to IV from bow to stern. In theory the guns could fire to both sides, but it is probable that if they were fired to port (across the deck) the blast would have damaged the flight deck. They could be depressed to −5° and elevated to +41°.

The ship's heavy anti-aircraft (AA) armament consisted of twelve 25-caliber Mk 10 five-inch guns which were mounted on single mounts, three each fitted on sponsons on each side of the bow and stern. No light AA guns were initially mounted on Lexington, but two sextuple .30-caliber (7.62 mm) machine gun mounts were installed in 1929. They were unsuccessful and were replaced by two .50-caliber (12.7 mm) machine guns by 1931, one each on the roof of the superfiring eight-inch turrets. During a refit in 1935, platforms mounting four .50-caliber machine guns were installed on each corner of the ship, and an additional platform was installed that wrapped around the funnel. Six machine guns were mounted on each side of this last platform. In October 1940, four 50-caliber Mk 10 three-inch AA guns were installed in the corner platforms; they replaced two of the .50-caliber machine guns which were remounted on the tops of the eight-inch gun turrets. Another three-inch gun was added on the roof of the deckhouse between the funnel and the island. These guns were just interim weapons until the quadruple 1.1-inch gun mount could be fielded, which occurred in August 1941.

In March 1942, Lexington's eight-inch turrets were removed at Pearl Harbor and replaced by seven quadruple 1.1-inch gun mounts. In addition 22 Oerlikon 20 mm cannon were installed, six in a new platform at the base of the funnel, 12 in the positions formerly occupied by the ship's boats in the sides of the hull, two at the stern and a pair on the aft control top. When the ship was sunk in May 1942, her armament consisted of 12 five-inch, 12 quadruple 1.1-inch, 22 Oerlikons and at least two dozen .50-caliber machine guns.

Each eight-inch turret had a Mk 30 rangefinder at the rear of the turret for local control, but they were normally controlled by two Mk 18 fire-control directors, one each on the fore and aft spotting tops. A 20-foot (6.1 m) rangefinder was fitted on top of the pilothouse to provide range information for the directors. Each group of three five-inch guns was controlled by a Mk 19 director, two of which were mounted on each side of the spotting tops. Lexington received a RCA CXAM-1 radar in June 1941 during a brief refit in Pearl Harbor. The antenna was mounted on the forward lip of the funnel with its control room directly below the aerial, replacing the secondary conning station formerly mounted there.

The waterline belt of the Lexington-class ships tapered 7–5 inches (178–127 mm) in thickness from top to bottom and angled 11° outwards at the top. It covered the middle 530 feet (161.5 m) of the ships. Forward, the belt ended in a bulkhead that also tapered from seven to five inches in thickness. Aft, it terminated at a seven-inch bulkhead. This belt had a height of 9 feet 4 inches (2.8 m). The third deck over the ships' machinery and magazine was armored with two layers of special treatment steel (STS) totaling 2 inches (51 mm) in thickness. The steering gear, however, was protected by two layers of STS that totaled 3 inches (76 mm) on the flat and 4.5 inches (114 mm) on the slope.

The gun turrets were protected only against splinters with .75 inches (19 mm) of armor. The conning tower was 2–2.25 inches (51–57 mm) of STS, and it had a communications tube with two-inch sides running from the conning tower down to the lower conning position on the third deck. The torpedo defense system of the Lexington-class ships consisted of three to six medium steel protective bulkheads that ranged from .375 to .75 inches (10 to 19 mm) in thickness. The spaces between them could be used as fuel tanks or left empty to absorb the detonation of a torpedo's warhead.

After fitting out and shakedown cruises, Lexington was transferred to the West Coast of the United States and arrived at San Pedro, California, part of Los Angeles, on 7 April 1928. She was based there until 1940 and mainly stayed on the West Coast, although she did participate in several Fleet Problems (training exercises) in the Atlantic Ocean and the Caribbean Sea. These exercises tested the Navy's evolving doctrine and tactics for the use of carriers. During Fleet Problem IX in January 1929, Lexington and the Scouting Force failed to defend the Panama Canal against an aerial attack launched by her sister ship Saratoga. Future science fiction author Robert A. Heinlein reported aboard on 6 July as a newly minted ensign under Captain Frank Berrien. Heinlein experienced his first literary rejection when his short story about a case of espionage discovered at the Naval Academy failed to win a shipboard writing contest.

In 1929, western Washington state suffered a drought which resulted in low levels in Lake Cushman that provided water for Cushman Dam No. 1. The hydro-electric power generated by this dam was the primary source for the city of Tacoma and the city requested help from the federal government once the water in the lake receded below the dam's intakes during December. The U.S. Navy sent Lexington, which had been at Puget Sound Naval Shipyard in Bremerton, to Tacoma, and heavy electric lines were rigged into the city's power system. The ship's generators provided a total of 4,520,960 kilowatt hours from 17 December to 16 January 1930 until melting snow and rain brought the reservoirs up to the level needed to generate sufficient power for the city. Two months later, she participated in Fleet Problem X, which was conducted in the Caribbean. During the exercise, her aircraft were judged to have destroyed the flight decks and all the aircraft of the opposing carriers Saratoga and Langley. Fleet Problem XI was held the following month and Saratoga returned the favor, knocking out Lexington's flight deck for 24 hours, just as the exercise came to a climax with a major surface engagement.

Captain Ernest J. King, who later rose to serve as the Chief of Naval Operations during World War II, assumed command on 20 June 1930. Lexington was assigned, together with Saratoga, to defend the west coast of Panama against a hypothetical invader during Fleet Problem XII in February 1931. While each carrier was able to inflict some damage on the invasion convoys, the enemy forces succeeded in making a landing. Shortly afterward, all three carriers transferred to the Caribbean to conduct further maneuvers. The most important of these was when Saratoga successfully defended the Caribbean side of the Panama Canal from an attack by Lexington. Rear Admiral Joseph M. Reeves baited a trap for King with a destroyer and scored a kill on Lexington on 22 March while the latter's aircraft were still searching for Saratoga.

On 31 March 1931, Lexington, which had been near Guantanamo Bay Naval Base, Cuba, was ordered to aid survivors of an earthquake that devastated Managua, Nicaragua. By the following day, the ship was close enough to launch aircraft carrying supplies and medical personnel to Managua. During Grand Joint Exercise No. 4, Lexington and Saratoga were able to launch a massive airstrike against Pearl Harbor on Sunday, 7 February 1932 without being detected. The two carriers were separated for Fleet Problem XIII which followed shortly afterward. Lexington was assigned to Black Fleet, defending Hawaii and the West Coast against Blue Fleet and Saratoga. On 15 March, Lexington caught Saratoga with all of her planes still on deck and was ruled to have knocked out her flight deck and have badly damaged the carrier, which was subsequently ruled sunk during a night attack by Black Fleet destroyers shortly afterward. Lexington's aircraft were judged to have badly damaged two of Blue Fleet's battleships.

Before Fleet Problem XIV began in February 1933, the Army and the Navy conducted a joint exercise simulating a carrier attack on Hawaii. Lexington and Saratoga successfully attacked Pearl Harbor at dawn on 31 January without being detected. During the actual fleet problem, the ship attempted to attack San Francisco, but was surprised in heavy fog by several defending battleships at close range and sunk. Fleet Problem XV returned to the Gulf of Panama and the Caribbean in April–May 1934, but the participating ships of the Pacific Fleet remained in the Caribbean and off the East Coast for more training and maneuvers until they returned to their home bases in November. Most notably during Fleet Problem XVI, April–June 1935, Lexington ran low on fuel after five days of high-speed steaming and this led to experiments with underway replenishment that later proved essential to combat operations during the Pacific War. During Fleet Problem XVII in 1936, Lexington and the smaller carrier Ranger routinely refueled their plane guard destroyers.

Admiral Claude C. Bloch limited Lexington to support of the battleships during Fleet Problem XVIII in 1937 and consequently the carrier was crippled and nearly sunk by surface gunfire and torpedoes. The following July, the ship participated in the unsuccessful search for Amelia Earhart. The 1938 Fleet Problem again tested the defenses of Hawaii and, again, aircraft from Lexington and her sister successfully attacked Pearl Harbor at dawn on 29 March. Later in the exercise, the two carriers successfully attacked San Francisco without being spotted by the defending fleet. Fleet Problem XX held in the Caribbean in March–April 1939, was the only time before October 1943 that the Navy concentrated four carriers (Lexington, Ranger, Yorktown, and Enterprise) together for maneuvers. This exercise also saw the first attempts to refuel carriers and battleships at sea. During Fleet Problem XXI in 1940, Lexington caught Yorktown by surprise and crippled her, although Yorktown's aircraft managed to knock out Lexington's flight deck. The fleet was ordered to remain in Hawaii after the conclusion of the exercise in May.

Admiral Husband Kimmel, Commander-in-Chief, Pacific Fleet, ordered Task Force (TF) 12—Lexington, three heavy cruisers and five destroyers—to depart Pearl Harbor on 5 December 1941 to ferry 18 U.S. Marine Corps Vought SB2U Vindicator dive bombers of VMSB-231 to reinforce the base at Midway Island. At this time she embarked 65 of her own aircraft, including 17 Brewster F2A Buffalo fighters. On the morning of 7 December, the Task Force was about 500 nautical miles (930 km; 580 mi) southeast of Midway when it received news of the Japanese Attack on Pearl Harbor. Several hours later, Rear Admiral John H. Newton, commander of the Task Force, received orders that cancelled the ferry mission and ordered him to search for the Japanese ships while rendezvousing with Vice Admiral Wilson Brown's ships 100 miles (160 km) west of Niihau Island. Captain Frederick Sherman needed to maintain a continuous Combat Air Patrol (CAP) and recover the fuel-starved fighters which were on patrol. With the Marine aircraft aboard, Lexington's flight deck was very congested and he decided to reverse the phase of the ship's electric propulsion motors and steam full speed astern in order to launch a new CAP and then swap back to resume forward motion to recover his current CAP. This unorthodox action allowed him to maintain a continuous CAP and recover his aircraft without the lengthy delay caused by moving the aircraft on the flight deck from the bow to the stern and back to make space available for launch and recovery operations. Lexington launched several scout planes to search for the Japanese that day and remained at sea between Johnston Island and Hawaii, reacting to several false alerts, until she returned to Pearl Harbor on 13 December. Kimmel had wanted to keep the ships at sea for longer, but difficulties refueling at sea on 11 and 12 December meant that the task force was low on fuel and was forced to return to port.

Re-designated as Task Force 11, and reinforced by four destroyers, Lexington and her consorts steamed from Pearl Harbor the next day to raid the Japanese base on Jaluit in the Marshall Islands to distract the Japanese from the Wake Island relief force led by Saratoga. For this operation, Lexington embarked 21 Buffalos, 32 Douglas SBD Dauntless dive bombers, and 15 Douglas TBD Devastator torpedo bombers, although not all aircraft were operational. Vice Admiral William S. Pye, acting commander of the Pacific Fleet, canceled the attack on 20 December and ordered the Task Force northwest to cover the relief force. The Japanese, however, landed on Wake and forced it to surrender on 23 December before Saratoga and her consorts could get there. Pye, reluctant to risk any carriers against a Japanese force of unknown strength, ordered both task forces to return to Pearl.

Lexington arrived back at Pearl Harbor on 27 December, but was ordered back to sea two days later. She returned on 3 January, needing repairs to one of her main generators. It was repaired four days later when TF 11 sailed with the carrier as Brown's flagship. The Task Force's mission was to patrol in the direction of Johnston Atoll. It was spotted by the submarine I-18 on 9 January and several other submarines were vectored to intercept the Task Force. Another submarine was spotted on the surface the following morning about 60 nautical miles (110 km; 69 mi) south of the carrier by two Buffalos who reported it without alerting the submarine to their presence. That afternoon it was spotted again, further south, by a different pair of fighters, and two Devastators carrying depth charges were vectored to the submarine's position. They claimed to have damaged it before it could fully submerge, but the incident is not mentioned in Japanese records. The putative victim was most likely I-19, which arrived at Kwajalein Atoll on 15 January. Lexington and her consorts returned to Pearl Harbor on the following day without further incident.

Task Force 11 sailed from Pearl Harbor three days later to conduct patrols northeast of Christmas Island. On 21 January, Admiral Chester Nimitz, the new commander of the Pacific Fleet, ordered Brown to conduct a diversionary raid on Wake Island on 27 January after refueling from the only available tanker, the elderly and slow oiler Neches en route to Brown. The unescorted tanker was torpedoed and sunk by I-71 23 January, forcing the cancellation of the raid. The task force arrived back in Pearl two days later. Brown was ordered back to sea on 31 January to escort the fast oiler Neosho to its rendezvous with Halsey's task force returning from its attack on Japanese bases in the Marshall Islands. He was then supposed to patrol near Canton Island to cover a convoy arriving there on 12 February. The task force was reconfigured with only two heavy cruisers and seven destroyers; the eighteen Grumman F4F Wildcats of VF-3, redeployed from the torpedoed Saratoga, replaced VF-2 to allow the latter unit to convert to the Wildcat. One of the Wildcats was severely damaged upon landing on the carrier. Nimitz cancelled the rendezvous on 2 February after it became apparent that Halsey did not need Neosho's fuel and ordered Brown to proceed to Canton Island. On 6 February, Nimitz ordered him to rendezvous with the ANZAC Squadron in the Coral Sea to prevent Japanese advances that might interfere with the sea-lanes connecting Australia and the United States. In addition, he was to protect a troop convoy bound for New Caledonia.

The heavy cruiser San Francisco and two destroyers reinforced the task force on 10 February and Brown rendezvoused with the ANZAC Squadron six days later. Even after emptying Neosho of her oil there was not enough fuel for the ANZAC Squadron to join Brown's proposed raid on Rabaul and they were forced to remain behind. Brown was reinforced by the heavy cruiser Pensacola and two destroyers on 17 February and tasked these ships to bombard Rabaul in addition to the attack by Lexington's aircraft. While still some 453 nautical miles (839 km; 521 mi) northeast of Rabaul, the task force was spotted by a Kawanishi H6K "Mavis" flying boat on the morning of 20 February. The snooper was detected by Lexington's radar and was shot down by Lieutenant Commander Jimmy Thach and his wingman, but not before it radioed its spot report. Another H6K was vectored in to confirm the first aircraft's report, but it was detected and shot down before it could radio its report. Brown's plan had depended on the element of surprise and he canceled the raid, although he decided to proceed toward Rabaul to lure Japanese aircraft into attacking him.

Rear Admiral Eiji Gotō, commander of the 24th Air Flotilla, launched all 17 of his long-range Mitsubishi G4M1 "Betty" torpedo bombers, although no torpedoes were available at Rabaul and they made do with a pair of 250-kilogram (550 lb) bombs apiece. To better search for the Americans, the Japanese split their aircraft into two groups and Lexington's radar acquired one of these at 16:25. At this time, the ship was rotating its CAP aircraft and the newly launched aircraft barely had time to reach the altitude of the Japanese before they arrived. Lexington had 15 fully fueled Wildcats and Dauntlesses on her forward flight deck that had been moved forward to allow the CAP fighters to land. They represented a serious fire hazard, but they could not be launched until all aircraft on the flight deck were moved aft. Cognizant of the danger, the deck crews succeeded in respotting the aircraft and the fueled aircraft were able to take off before the Japanese attacked. Per Commander Herbert Duckworth, "It was as if some great hand moved all the planes aft simultaneously." Only four of the nine G4Ms in the first wave survived to reach Lexington, but all of their bombs missed and they were all shot down afterward, including one by a Dauntless. The honors were not all one-sided as they shot down two of the defending Wildcats. The second wave of eight bombers was spotted at 16:56, while all but two of the Wildcats were dealing with the first wave. Lieutenant Edward O'Hare and his wingman, Lieutenant (junior grade) Marion Dufilho, were able to intercept the bombers a few miles short of Lexington, but Dufilho's guns jammed before he could fire a shot. O'Hare was able to shoot down three G4Ms and damage two others before the bombers were able to drop their bombs, none of which struck the wildly maneuvering carrier. Only three of the G4Ms reached base as those Wildcats and Dauntlesses with enough fuel pursued and shot down several others.

The task force changed course after dark for its rendezvous with the tanker Platte, scheduled for 22 February. One Japanese Aichi E13A "Jake" floatplane succeeded in tracking the task force for a short time after dark, but six H6Ks launched after midnight were unable to locate the American ships. Brown rendezvoused with Platte and the escorting ANZAC Squadron on schedule and he requested reinforcement by another carrier if another raid on Rabaul was desired. Nimitz promptly responded by ordering Yorktown's Task Force 17, under the command of Rear Admiral Frank Jack Fletcher, to rendezvous with Brown north of New Caledonia on 6 March to allow the latter to attack Rabaul. The initial plan was to attack from the south in the hope of avoiding Japanese search aircraft, but this was changed on 8 March when word was received that Rabaul harbor was empty as the Japanese had invaded Papua New Guinea and all the shipping was anchored off the villages of Lae and Salamaua. The plan was changed to mount the attack from a position in the Gulf of Papua, even though this involved flying over the Owen Stanley Mountains. The two carriers reached their positions on the morning of 10 March and Lexington launched eight Wildcats, 31 Dauntlesses and 13 Devastators. They were the first to attack the 16 Japanese ships in the area and sank three transports and damaged several other ships before Yorktown's aircraft arrived 15 minutes later. One Dauntless was shot down by anti-aircraft fire while a Wildcat shot down a Nakajima E8N floatplane. A H6K spotted one carrier later that afternoon, but the weather had turned bad and the 24th Air Flotilla decided not to attack. Task Force 11 was ordered to return to Pearl and Lexington exchanged six Wildcats, five Dauntlesses and one Devastator for two Wildcats from Yorktown that needed overhaul before she left. The task force arrived at Pearl Harbor on 26 March.

The ship was given a short refit, during which her eight-inch gun turrets were removed and replaced by quadruple 1.1-inch (28 mm) anti-aircraft guns. Rear Admiral Aubrey Fitch assumed command of Task Force 11 on 1 April and it was reorganized to consist of Lexington and the heavy cruisers Minneapolis and New Orleans as well as seven destroyers. The task force sortied from Pearl Harbor on 15 April, carrying 14 Buffalos of VMF-211 to be flown off at Palmyra Atoll. After flying off the Marine fighters, the task force was ordered to train with the battleships of Task Force 1 in the vicinity of Palmyra and Christmas Island. Late on 18 April, the training was cancelled as Allied codebreakers had figured out that the Japanese intended to invade and occupy Port Moresby and Tulagi in the southeastern Solomon Islands (Operation Mo). Therefore, Fitch's ships, acting on a command from Nimitz, rendezvoused with TF 17 north of New Caledonia on 1 May, after refueling from the tanker Kaskaskia on 25 April to thwart the Japanese offensive. At this time, Lexington's air group consisted of 21 Wildcats, 37 Dauntlesses and 12 Devastators.

Both Task Forces needed to refuel, but TF 17 finished first and Fletcher took Yorktown and her consorts northward toward the Solomon Islands on 2 May. TF 11 was ordered to rendezvous with TF 17 and TF 44, the old ANZAC Squadron, further west into the Coral Sea on 4 May. The Japanese opened Operation Mo by occupying Tulagi on 3 May. Alerted by Allied reconnaissance aircraft, Fletcher decided to attack Japanese shipping there the following day. The air strike on Tulagi confirmed that at least one American carrier was in the vicinity, but the Japanese had no idea of its location. They launched a number of reconnaissance aircraft the following day to search for the Americans, but without result. One H6K flying boat spotted Yorktown, but was shot down by one of Yorktown's Wildcat fighters before she could radio a report. US Army Air Force (USAAF) aircraft spotted Shōhō (her name was mis-transliterated by the Americans as Ryukaku) southwest of Bougainville Island on 5 May, but she was too far north to be attacked by the American carriers, which were refueling. That day, Fletcher received Ultra intelligence that placed the three Japanese carriers known to be involved in Operation Mo near Bougainville Island, and predicted 10 May as the date of the invasion. It also predicted airstrikes by the Japanese carriers in support of the invasion several days before 10 May. Based on this information, Fletcher planned to complete refueling on 6 May and to move closer to the eastern tip of New Guinea to be in a position to locate and attack Japanese forces on 7 May.

Another H6K spotted the Americans during the morning of 6 May and successfully shadowed them until 1400. The Japanese, however, were unwilling or unable to launch air strikes in poor weather or without updated spot reports. Both sides believed they knew where the other force was, and expected to fight the next day. The Japanese were the first to spot the Americans when one aircraft found the oiler Neosho escorted by the destroyer Sims at 0722, south of the Strike Force. They were misidentified as a carrier and a cruiser so the fleet carriers Shōkaku and Zuikaku launched an airstrike forty minutes later that sank Sims and damaged Neosho badly enough that she had to be scuttled a few days later. The American carriers were west of the Japanese carriers, not south, and they were spotted by other Japanese aircraft shortly after the carriers had launched their attack on Neosho and Sims.

American reconnaissance aircraft reported two Japanese heavy cruisers northeast of Misima Island in the Louisiade Archipelago off the eastern tip of New Guinea at 07:35 and two carriers at 08:15. An hour later Fletcher ordered an airstrike launched, believing that the two carriers reported were Shōkaku and Zuikaku. Lexington and Yorktown launched a total of 53 Dauntlesses and 22 Devastators escorted by 18 Wildcats. The 08:15 report turned out to be miscoded, as the pilot had intended to report two heavy cruisers, but USAAF aircraft had spotted Shōhō, her escorts and the invasion convoy in the meantime. As the latest spot report plotted only 30 nautical miles (56 km; 35 mi) away from the 08:15 report, the aircraft en route were diverted to this new target.

Shōhō and the rest of the Main Force were spotted by aircraft from Lexington at 10:40. At this time, Shōhō's CAP consisted of two Mitsubishi A5M "Claudes" and one Mitsubishi A6M Zero. The dive bombers of VS-2 began their attack at 1110 as the three Japanese fighters attacked the Dauntlesses in their dive. None of the dive bombers hit Shōhō, which was maneuvering to avoid their bombs; one Dauntless was shot down by the Zero after it had pulled out of its dive; several other Dauntlesses were also damaged. The carrier launched three more Zeros immediately after this attack to reinforce its CAP. The Dauntlesses of VB-2 began their attack at 11:18 and they hit Shōhō twice with 1,000-pound (450 kg) bombs. These penetrated the ship's flight deck and burst inside her hangars, setting the fueled and armed aircraft there on fire. A minute later the Devastators of VT-2 began dropping their torpedoes from both sides of the ship. They hit Shōhō five times and the damage from the hits knocked out her steering and power. In addition, the hits flooded both the engine and boiler rooms. Yorktown's aircraft finished the carrier off and she sank at 11:31. After his attack, Lieutenant Commander Robert E. Dixon, commander of VS-2, radioed his famous message to the American carriers: "Scratch one flat top!"

After Shōkaku and Zuikaku had recovered the aircraft that had sunk Neosho and Sims, Rear Admiral Chūichi Hara, commander of the 5th Carrier Division, ordered that a further air strike be readied as the American carriers were believed to have been located. The two carriers launched a total of 12 Aichi D3A "Val" dive bombers and 15 Nakajima B5N "Kate" torpedo bombers late that afternoon. The Japanese had mistaken Task Force 44 for Lexington and Yorktown, which were much closer than anticipated, although they were along the same bearing. Lexington's radar spotted one group of nine B5Ns at 17:47 and half the CAP was directed to intercept them while additional Wildcats were launched to reinforce the CAP. The intercepting fighters surprised the Japanese bombers and shot down five while losing one of their own. One section of the newly launched fighters spotted the remaining group of six B5Ns, shooting down two and badly damaging another bomber, although one Wildcat was lost to unknown causes. Another section spotted and shot down a single D3A. The surviving Japanese leaders cancelled the attack after such heavy losses and all aircraft jettisoned their bombs and torpedoes. They had still not spotted the American carriers and turned for their own ships, using radio direction finders to track the carrier's homing beacon. The beacon broadcast on a frequency very close to that of the American ships and many of the Japanese aircraft confused the ships in the darkness. A number of them flew right beside the American ships, flashing signal lights in an effort to confirm their identity, but they were not initially recognized as Japanese because the remaining Wildcats were attempting to land aboard the carriers. Finally they were recognized and fired upon, by both the Wildcats and the anti-aircraft guns of the task force, but they sustained no losses in the confused action. One Wildcat lost radio contact and could not find either of the American carriers; the pilot was never found. Only 18 Japanese aircraft successfully returned to their carriers, beginning at 20:00.

On the morning of 8 May, both sides spotted each other about the same time and began launching their aircraft about 09:00. The Japanese carriers launched a total of 18 Zeros, 33 D3As and 18 B5Ns. Yorktown was the first American carrier to launch her aircraft and Lexington began launching hers seven minutes later. These totaled 9 Wildcats, 15 Dauntlesses and 12 Devastators. Yorktown's dive bombers disabled Shōkaku's flight deck with two hits and Lexington's aircraft were only able to further damage her with another bomb hit. None of the torpedo bombers from either carrier hit anything. The Japanese CAP was effective and shot down 3 Wildcats and 2 Dauntlesses for the loss of 2 Zeros.

The Japanese aircraft spotted the American carriers around 11:05 and the B5Ns attacked first because the D3As had to circle around to approach the carriers from upwind. The CAP shot down three of the torpedo bombers before they could drop their torpedoes, but 11 survived long enough to hit Lexington twice on the port side at 11:20, although 2 of the B5Ns were shot down by anti-aircraft fire after dropping their torpedoes. The shock from the first torpedo hit at the bow jammed both elevators in the up position and started small leaks in the port avgas storage tanks. The second torpedo hit her opposite the bridge, ruptured the primary port water main, and started flooding in three port fire rooms. The boilers there had to be shut down, which reduced her speed to a maximum of 24.5 knots (45.4 km/h; 28.2 mph), and the flooding gave her a 6–7° list to port. Shortly afterward, Lexington was attacked by 19 D3As. One was shot down by the CAP before it could drop its bomb and another was shot down by the carrier. She was hit by two bombs, the first of which detonated in the port forward five-inch ready ammunition locker, killing the entire crew of one 5-inch AA gun and starting several fires. The second hit struck the funnel, doing little significant damage although fragments killed many of the crews of the .50-caliber machine guns positioned near there. The hit also jammed the ship's siren in the "on" position. The remaining bombs detonated close alongside and some of their fragments pierced the hull, flooding two compartments.

Fuel was pumped from the port storage tanks to the starboard side to correct the list and Lexington began recovering damaged aircraft and those that were low on fuel at 11:39. The Japanese had shot down three of Lexington's Wildcats and five Dauntlesses, plus another Dauntless crashed on landing. At 12:43, the ship launched five Wildcats to replace the CAP and prepared to launch another nine Dauntlesses. A massive explosion at 12:47 was triggered by sparks that ignited gasoline vapors from the cracked port avgas tanks. The explosion killed 25 crewmen and knocked out the main damage control station. The damage did not interfere with flight deck operations, although the refueling system was shut down. The fueled Dauntlesses were launched and six Wildcats that were low on fuel landed aboard. Aircraft from the morning's air strike began landing at 13:22 and all surviving aircraft had landed by 14:14. The final tally was three Wildcats shot down, plus one Wildcat, three Dauntlesses and one Devastator that were forced to ditch.

Another serious explosion occurred at 14:42 that started severe fires in the hangar and blew the forward elevator 12 inches (300 mm) above the flight deck. Power to the forward half of the ship failed shortly afterward. Fletcher sent three destroyers to assist, but another major explosion at 15:25 knocked out water pressure in the hangar and forced the evacuation of the forward machinery spaces. The fire eventually forced the evacuation of all compartments below the waterline at 16:00 and Lexington eventually drifted to a halt. Evacuation of the wounded began shortly afterward and Sherman ordered "abandon ship" at 17:07. A series of large explosions began around 18:00 that blew the aft elevator apart and threw aircraft into the air. Sherman waited until 18:30 to ensure that all of his crewmen were off the ship before leaving himself. Some 2,770 officers and men were rescued by the rest of the task force. The destroyer Phelps was ordered to sink the ship and fired a total of five torpedoes between 19:15 and 19:52. Immediately after the last torpedo hit, Lexington, down by the bow but nearly on an even keel finally sank. Some 216 crewmen were killed and 2,735 were evacuated.

Lexington received two battle stars for her World War II service. She was officially struck from the naval register on 24 June 1942.

In June 1942, shortly after the Navy's public acknowledgment of the sinking, workers at the Quincy shipyard, where the ship had been built twenty-one years earlier, cabled Navy Secretary Frank Knox and proposed a change in the name of one of the new Essex-class fleet carriers currently under construction there to Lexington (from Cabot). Knox agreed to the proposal and the carrier was renamed as the fifth Lexington on 16 June 1942. On 17 February 1943, her successor was formally commissioned as USS Lexington (CV-16), which served as the flagship of Task Force 58 (TF 58) during the Battle of the Philippine Sea and remained in service until 1991.

Name: USS Lexington

Namesake: Battle of Lexington

Ordered: 1916 (as battlecruiser); 1922 (as aircraft carrier)

Builder: Fore River Ship and Engine Building Co., Quincy, Massachusetts

Laid down: 8 January 1921

Launched: 3 October 1925

Christened: Mrs. Theodore Douglas Robinson

Commissioned: 14 December 1927

Reclassified: As aircraft carrier, 1 July 1922

Struck: 24 June 1942

Identification: Hull number: CC-1, then CV-2

Nickname: "Lady Lex"

Fate: Sunk during the Battle of the Coral Sea, 8 May 1942

General Characteristics (As Built)

Class and type: Lexington-class aircraft carrier

Displacement: 36,000 long tons (37,000 t) (standard); 47,700 long tons (48,500 t) (deep load)

Length: 888 ft (270.7 m)

Beam: 107 ft 6 in (32.8 m)

Draft: 32 ft 6 in (9.9 m) (deep load)

Installed power: 180,000 shp (130,000 kW)

Propulsion: 4 shafts, 4 sets turbo-electric drive; 16 water-tube boilers

Speed: 33.25 knots (61.58 km/h; 38.26 mph)

Range: 10,000 nmi (19,000 km; 12,000 mi) at 10 kn (19 km/h; 12 mph)

Complement: 2,791 (including aviation personnel) in 1942

Armament:

4 × 2 – 8-inch guns

12 × 1 – 5-inch anti-aircraft guns

Armor:

Belt: 5–7 in (127–178 mm)

Deck: .75–2 in (19–51 mm)

Gun turrets: .75 in (19 mm)

Bulkheads: 5–7 in (127–178 mm)

Aircraft carried: 78

Aviation facilities: 1 Aircraft catapult

Awards and Decorations

Bronze star

American Defense Service Medal with "Fleet" clasp

Asiatic-Pacific Campaign Medal with 2 stars

World War II Victory Medal

U.S. Battle Cruisers Nos. 1 - 6. Silhouette and table of principal characteristics for the definitive design of these ships, circa 1920.

Contract design for the Lexington and the Saratoga, 1922. The oval opening right aft is for twin torpedo tubes.

Commendation from the Commander-in-Chief, U.S. Pacific Fleet, to the officers and men of the Lexington and her air group.

Crewmen abandon ship on board the U.S. aircraft carrier USS Lexington (CV-2) after the carrier was hit by Japanese torpedoes and bombs during the Battle of the Coral Sea, on 8 May 1942. The destroyer Phelps (DD-360) eventually torpedoed the stricken carrier and sank her. Note crewmen sliding down lines on Lexington's starboard quarter.

The U.S. Navy aircraft carrier USS Lexington (CV-2) leaving San Diego, California, on 14 October 1941. Planes parked on her flight deck include Brewster F2A-1 fighters (parked forward), Douglas SBD scout-bombers (amidships) and Douglas TBD-1 torpedo planes (aft). Note the false bow wave painted on her hull, forward, and badly chalked condition of the hull's camouflage paint.

Rear Admiral David W. Taylor, USN (left), Chief of the Bureau of Construction and Repair, and Rear Admiral John K. Robison, USN (right), Chief of the Bureau of Engineering, hold a model of the battle cruisers (CC-1 class) then under construction, 8 March 1922. In the foreground is a model of an aircraft carrier design converted from the battle cruiser hull. This photo illustrates the genesis of the Lexington-class aircraft carrier design. Standing in the background are (from left to right): Rear Admiral William A. Moffett, USN, Chief of the Bureau of Aeronautics; Congressman Frederick C. Hicks, of New York; Congressman Clark Burdick, of Rhode Island; and Congressman Philip D. Swing, of California. Photographed at the Navy Department by Harris & Ewing.

Ship's insignia of United States Navy aircraft carrier USS "Lexington" (CV-2).

Lexington on the building ways at the Fore River Shipyard, Quincy, Massachusetts, shortly before her launching, circa late September or early October 1925.

Lexington (CV-2) fitting out at the Bethlehem Steel Company shipyard, Quincy, Massachusetts.

Commercial tugboats assist the U.S. Navy aircraft carrier USS Lexington (CV-2) during her transit from the Fore River Shipyard in Quincy, Massachusetts, to the Boston Navy Yard for her final dry docking before her shakedown cruise, 5 January 1928. Lexington had been commissioned on 14 December 1927.

Lexington (CV-2) in the final states of fitting out, at the Bethlehem Steel Company shipyard, Quincy, Massachusetts, in November 1927. (Merchant ship partially visible at right is the S.S. West Grama, which served as USS West Grama in 1919.)

Lexington about to enter Dry Dock, South Boston, 10 January 1928.

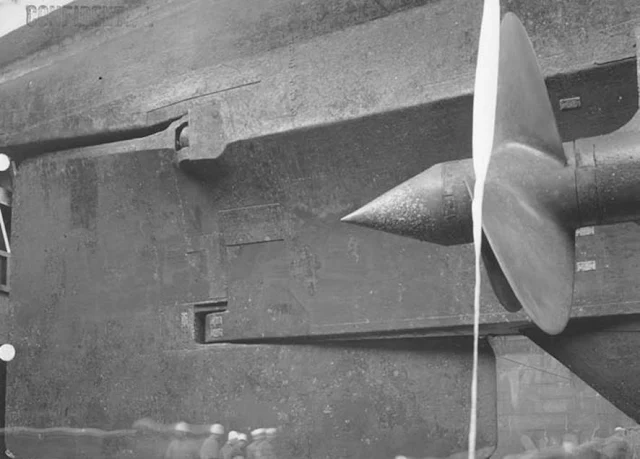

Stern view of USS Lexington (CV-2) in Dry Dock 3 at the South Boston Annex, Boston Navy Yard, 10 January 1928.

Lexington (CV-2) being settled in Dry Dock 3 at the South Boston Annex, Boston Navy Yard, 10 January 1928.

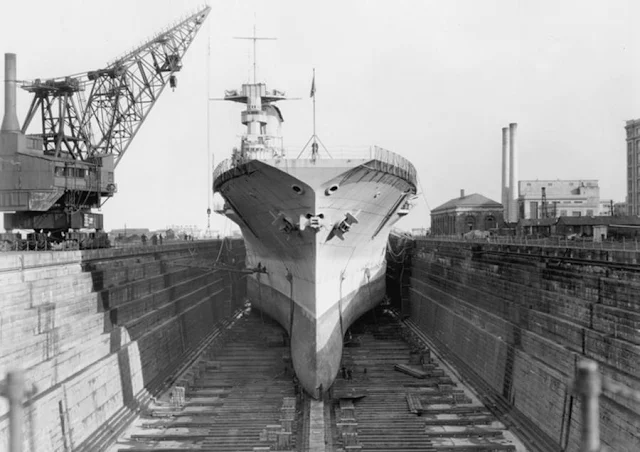

Bow view of Lexington (CV-2) in Dry Dock 3 at the South Boston Annex, Boston Navy Yard, 12 January 1928. Steam-powered Portal Crane 50 is at left.

View of port side of Lexington (CV-2) in Dry Dock 3 at the South Boston Annex, Boston Navy Yard, 12 January 1928.

Lexington (CV-2) in South Boston drydock, January 1928.

The U.S. Navy aircraft carrier USS Lexington (CV-2) firing her 55 caliber eight-inch guns, 27 January 1928.

CDR Theodore Gordon 'Spuds' Ellyson, the Executive Officer of the aircraft carrier Lexington and Senior Flying Officer, was killed on 27 February 1928, his 43rd birthday, in the crash of a Loening OL-7 aircraft in the lower Chesapeake Bay along with his crew while on a night flight from Norfolk, Virginia, to Annapolis, Maryland. His body washed ashore and was recovered in April 1928. He was buried in the Naval Academy Cemetery, in Annapolis.

Lexington (CV-2) off Panama City, Panama, 25 March 1928, during her shakedown period.

"Battle Practice," circa 1928. Note VB-1B "Red Ripper" F6C in the foreground, and a Lexington-class carrier steaming in the background.

USS Lexington (CV-2): Curtiss F6C fighters (lower right) and Martin T3M torpedo planes on the carrier's flight deck, as she arrives off San Diego, California, on her maiden cruise, 4 April 1928. Note lowered elevator.

Rear Admiral Joseph M. Reeves, Commander, Aircraft Squadrons, Battle Fleet, conducted a quarterly inspection of USS Lexington (CV-2) on Tuesday, 21 August 1928. The next day Captain Frank Berrien relieved the ship's skipper, the newly frocked Rear Admiral Albert W. Marshall, as Lexington's commanding officer. These photos were taken on the 22nd of August (some of them may have been taken on the 21st).

RADM Albert W. Marshall reading his orders.

CAPT Frank D. Berrien reading his orders.

Left to right: RADM Albert W. Marshall, outgoing commanding officer; CAPT Frank D. Berrien, incoming commanding officer; CDR Newton H. White, executive officer.

RADM Albert W. Marshall, outgoing Commanding Officer, and CAPT Frank D. Berrien, incoming Commanding Officer of USS Lexington (CV-2).

Left to right: CDR Newton H. White, Executive Officer, USS Lexington; CDR Eugene E. Wilson, staff of Commander, Aircraft Squadrons, Battle Fleet; RADM Joseph M. Reeves, Commander, Aircraft Squadrons, Battle Fleet; RADM Albert W. Marshall, Commander, Aircraft Squadrons, Scouting Fleet; and CAPT Frank D. Berrien, Commanding Officer, USS Lexington.

USS Lexington (CV-2), left, and USS Saratoga (CV-3), right, moored at Puget Sound Navy Yard, Bremerton, Washington, 22 September 1928. Note Sara had a walkway on the face of her stack—one of the few distinguishing features between these otherwise nearly identical twins.

USS Lexington (CV-2) early in her career (probably around 1928–29).

The U.S. aircraft carriers USS Lexington (CV-2) (top), USS Saratoga (CV-3) (middle), and USS Langley (CV-1) (bottom) moored at Bremerton, Washington, in 1929.

USS Lexington (CV-2), top; USS Saratoga (CV-3), with her distinctive funnel stripe; and USS Langley (CV-1), across the pier from Saratoga. Bremerton, Washington, 11 November 1929.

Perhaps during Fleet Problem IX, off Panama, January 1929.

An early photo of USS Lexington (CV-2), dated 22 February 1929, in full dress for George Washington's Birthday.

The U.S. Navy aircraft carrier USS Lexington (CV-2) steams through an aircraft-deployed smoke screen off Panama, 26 February 1929, shortly after that year's "Fleet Problem" exercises.

Front view of the island of Lexington (CV-2), 1929–1933.

From 17 December 1929 to 16 January 1930 USS Lexington supplied electrical power to Tacoma, Washington, when this city suffered a power shortage. The electricity from the carrier totaled more than 4.25 million kilowatt-hours.

USS Los Angeles (ZR-3) flies over ships of the U.S. Fleet, circa 1930. Photographed from on board the airship, with two of her engine cars in the foreground. Ships below are USS Patoka (AO-9), closest to the camera, and the aircraft carriers Lexington (CV-2) and Saratoga (CV-3).

This is a 1930 photo of Lexington (CV-2), reportedly at Guantanamo Bay, Cuba.

U.S. Navy Martin T4M torpedo aircraft are launching from the deck of the aircraft carrier USS Lexington (CV-2) in 1931. Note the "four-stacker" (Clemson/Wickes-class destroyer) in the upper right corner.

USS Los Angeles (ZR-3) (center distance) moored to USS Patoka (AO-9) off Panama during Fleet Problem XII, circa February 1931. USS Lexington (CV-2), at right, and a battleship are also present.

Ship's crew and personnel of her aircraft squadrons posed on the flight deck, circa the 1930s. View looks forward from atop her smokestack.

Lexington (CV-2) sailing past Waikiki Beach, Hawaii, circa early 1930s.

Lexington (CV-2) at anchor at Lahaina Roads, Maui, February 16, 1932.

Lexington (CV-2) underway, March 15, 1932. Note how closely the T4M torpedo-bombers and the smaller fighter and observation aircraft are packed together.

Lexington (CV-2) and Saratoga (CV-3) in front of Diamond Head. Regardless of what is printed on the picture, it was taken on February 2, 1933 while both sister carriers were awaiting the official beginning of Fleet Problem XIV (February 6.)

Aerial, starboard beam. Aircraft on deck, Diamond Head in background. February 2, 1933.

Boeing F3B-1s of Bombing Squadron 2 (VB-2B) in USS Lexington's hangar, seen from a lift well; Vought O2U Corsair observation floatplanes of Observation Squadron 3 (VS-3B) are stowed aft. Photo taken sometime between June 1931 and June 1933.

Port bow view of USS Lexington (CV-2) underway, 31 May 1934, during a Presidential Review by President Roosevelt off New York City.

Lexington (CV-2), left, and Saratoga (CV-3) open to the public for viewing at New York City, June 1934.

Lexington (CV-2)—and her sister Saratoga (CV-3)—in New York harbor in June 1934.

Another view of Lexington (CV-2)—and her sister Saratoga (CV-3)—in New York harbor in June 1934.

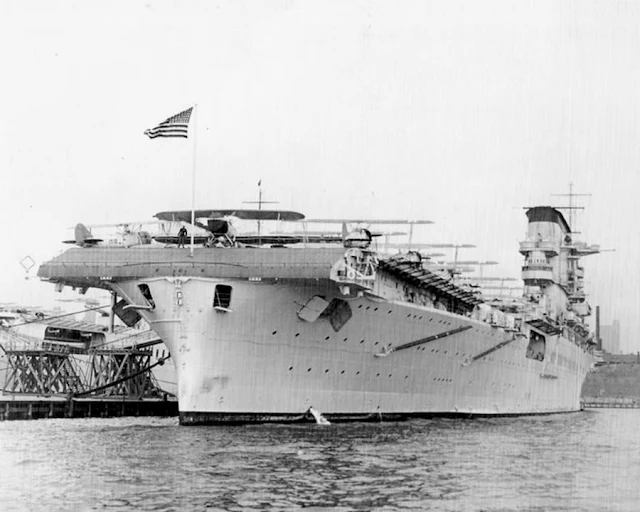

Lexington (CV-2) moored to West Fiftieth Street Dock, Hudson River, New York. A BM dive/torpedo bomber assigned to Torpedo Squadron One can be seen parked aft on the flight deck, which suggests a rough time frame of 1932–36. Moreover, USS Saratoga (CV-3) can be seen across the pier. Both Sara and Lex visited New York and were moored to Pier 90 (West Fiftieth Street Dock), June 1-19, 1934, after a Presidential Review. This photo was probably taken at that time.

Lexington (CV-2) before her 1935 refit at Puget Sound Navy Yard, as indicated by the absence of the four sponsons (two forward, two aft) installed to augment her anti-aircraft armament.

Puget Sound Navy Yard, Bremerton, Washington. Aerial photograph taken in the mid-1930s. Alongside the pier in center are the aircraft tender (ex-collier) Jason (AV-2), laid up in 1932 and sold in 1936, and the crane ship Kearsarge. Also present are the aircraft carriers Lexington (CV-2) and Saratoga (CV-3), the latter with her distinctive funnel stripe.

Lexington (CV-2) before her 1935 refit at Puget Sound Navy Yard, as indicated by the absence of the four sponsons (two forward, two aft) installed to augment her anti-aircraft armament.

Lexington, circa 1935. VS-3B Squadron insignia (Indian head in circle) is clearly visible on the biplane.

Lexington, circa 1935.

Lexington underway circa 1936, showing her very wide funnel with its black top edge, under which the MG platform was situated. The 8in/55 twin mounts, and also the single 5in(127mm)/25s grouped in threes, are clearly visible.

Lexington (CV-2) off Long Beach, California, 17 September 1936, with crewmembers spelling out "NAVY" on her flight deck.

Lexington at anchor off Long Beach, California.

Lexington (CV-2) entering Puget Sound Navy Yard, date unknown—might have been taken in late 1936, as the machine gun sponsons (fore and aft) and platform (around funnel) are already in place, but forward flight deck has not yet been widened.

Lexington (CV-2) at anchor, location and date unknown (prior to her 1936–37 refit, as shown by the shape of the forward part of the flight deck). Note one of her fighters has just been launched.

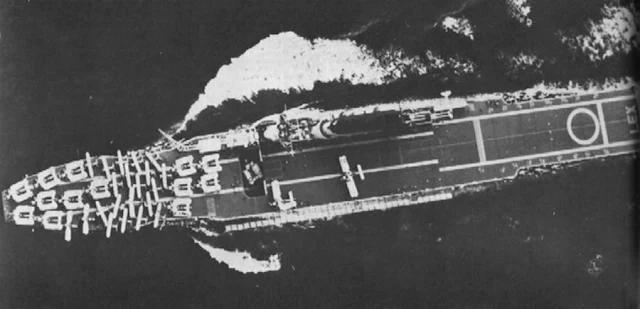

Overhead view. Note shape of forward flight deck.

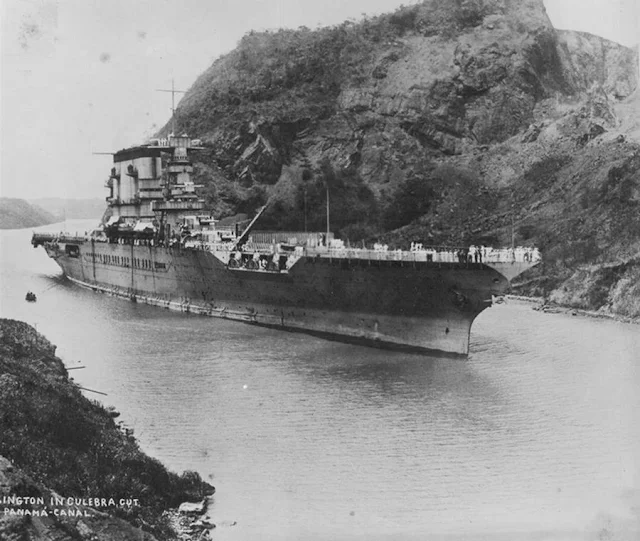

Lexington (CV-2) passing through Culebra Cut, Panama Canal (date unknown but, as deduced from the forward end of her flight deck, taken before her 1936 refit).

Lexington (CV-2) at anchor, location unknown, after her 1936–37 refit, which widened her forward flight deck.

Lexington (CV-2) underway sometime in the late 1930s (1937?), location unknown. Note the 0.5-in MG gallery below the funnel cap and the widened forward flight deck.

Lexington (CV-2) underway with aircraft spotted on deck, circa 1938.

Aerial port bow view, with aircraft on deck, off Honolulu, Hawaii, during Fleet Problem XIX, 8 April 1938.

Lexington (CV-2) in the Gaillard Cut, Panama Canal. There are monoplane TBD-1 Devastator torpedo-bombers parked aft on the flight deck; therefore, the photo was possibly taken in 1939, when Lexington was returning to the Pacific after Fleet Problem XX.

"'1066-39' P.S.N.Y. November 6, 1939] U.S.S. Lexington. Condition of plastic A.F. near stern and in way of rudder. Docked, Nov. 1939 — 12 months out of dock."

"Service Afloat," Navy recruiting poster issued in November 1939. It features photographs of Lexington (CV-2) and Dunlap (DD-384), as well as a pilothouse scene on a battleship and views of sailors splicing a hawser, carrying a hammock and sea bag, assisting a ship's navigator and standing engine room throttle watch.

Aircraft takes off from the deck of the Lexington.

Lexington (CV-2), left distance, with part of the Pacific Fleet in 1940 at Lahaina, Maui. It is possible that the battleship on the left is USS California (BB-44). The center battleship appears to be a Nevada class, either USS Nevada (BB-36) or USS Oklahoma (BB-37). The rightmost battleship is believed to be a Pennsylvania class, USS Pennsylvania (BB-38) rather than USS Arizona (BB-39).

Vertical aerial photograph of Ford Island, taken 10 November 1941, with five battleships tied up along "Battleship Row" at the top of the image. Lexington (CV-2), a seaplane tender and a light cruiser are moored on the island's other (northwestern) side. Approximately 21 PBY patrol planes are parked at the Naval Air Station's seaplane base, in the upper right. The bright diagonal line, at the lower left end of Ford Island, points to the north.

Fighting Squadron Three (VF-3), March 5, 1942. Standing, l to r: Mason, Clark, Sellstrom, Eder, Johnson, Lackey, Haynes, Stanley, Peterson, Dufilho, Lemmon. Sitting: Morgan, Vorse, Lovelace, Thach, Gayler, O'Hare, Rowell.

The four 8-in mounts were removed from Lexington at Pearl Harbor on 30 March 1942, and made available to the Hawaiian Department, U.S. Army, four days later. It was planned to replace the 8-inch/55 batteries with 5-inch/38 dual-purpose twin mounts, but Lexington was sunk on 8 May 1942, during the Battle of the Coral Sea, before the 5-in mounts were installed.

Another view of one of the 8-in mounts were removed from Lexington at Pearl Harbor on 30 March 1942.

An Imperial Japanese Navy Mitsubishi G4M "Betty" bomber plunges towards the water after being shot down during an engagement with U.S. Navy Grumman F4F-3 Wildcat fighters from Fighting Squadron VF-3 defending the aircraft carrier USS Lexington (CV-2) off Rabaul, New Britain, 20 February 1942.

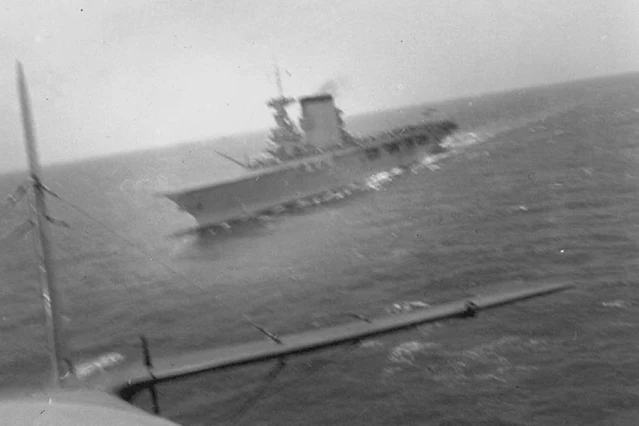

Lexington (CV-2) underway, as seen from Yorktown (CV-5), probably during the early morning of 8 May 1942.

Lexington (CV-2) underway, probably during the early morning of 8 May 1942. Photographed from Yorktown (CV-5).

USS Lexington (CV-2) during the Battle of the Coral Sea, seen from USS Yorktown (CV-5), 8 May 1942. Large number of planes on deck and low sun indicate that the photo was taken early in the morning, prior to launching the strike against the Japanese carrier force. Yorktown has several SBDs and F4Fs on deck with engines running, apparently preparing to take off. Lexington, whose silhouette has been altered by the earlier removal of her 8-inch gun mounts, has planes parked fore and aft, and may be respotting her deck in preparation for launching aircraft.

USS Lexington (CV-2) under air attack on 8 May 1942 during the Battle of the Coral Sea, as photographed from a Japanese plane. Heavy black smoke from her stack and white smoke from her bow indicate that the view was taken just after those areas were hit by bombs. Destroyer in the lower left appears to be USS Phelps (DD-360).

Lexington (CV-2) under Japanese dive bomber attack, shortly before Noon on 8 May 1942, during the Battle of the Coral Sea.

Lexington hit and burning, during the later part of the Japanese air attack on 8 May. Note anti-aircraft bursts in the vicinity, and a plane off the ship's bow.

Lexington (CV-2) afire and down at the bow, but still steaming and operating aircraft, shortly after she was hit by Japanese torpedoes and bombs during the Battle of the Coral Sea. This view was taken about Noon on 8 May 1942, before fires were extinguished from a bomb hit on the carrier's smokestack. Plane overhead is a Grumman F4F Wildcat fighter.

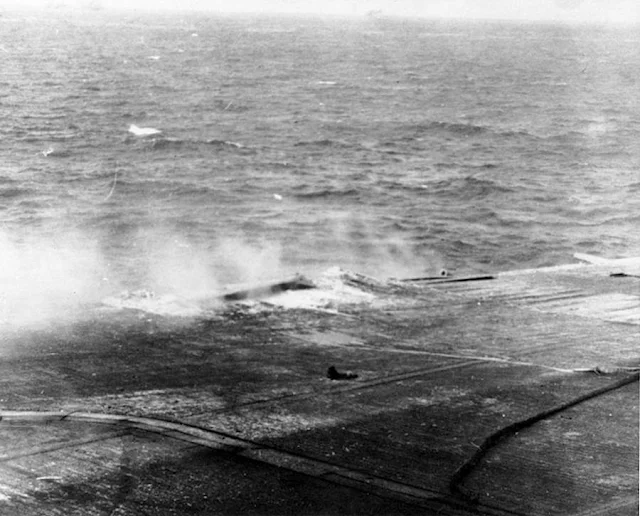

Flight deck damage on Lexington (CV-2), from a Japanese bomb that hit near the after end of the port forward 5-inch gun gallery, during the Battle of the Coral Sea, 8 May 1942. This hit was evaluated as being from a relatively small bomb, instantaneously fuzed. Photographed from the carrier's island, with the flight deck palisade at right, and the port forward corner of the forward aircraft elevator in the lower left.

Damage in the port forward 5-inch gun gallery of Lexington (CV-2), from a Japanese bomb that hit near the gallery's after end during the Battle of the Coral Sea, 8 May 1942. The ship's Number four 5"/25 gun is in the left center of the view, which looks forward. Staining on the photographic image is possibly due to water damage received when the photographer abandoned ship.

Damage in the port forward 5-inch gun gallery on USS Lexington (CV-2), from a Japanese bomb that struck near the gallery's after end during the Battle of the Coral Sea, 8 May 1942. View looks aft, with the damaged number four 5"/25 gun in the foreground, trained to port and aft. The gun crew was wiped-out by the explosion.

Planes returning on board Lexington (CV-2) at about 1400 hrs. on 8 May 1942, during the Battle of the Coral Sea. View looks aft along the port side of the flight deck from the front of the bomb-damaged port forward 5-inch gun gallery. Number two 5"/25 gun is in the foreground, trained out and still in operation. The damaged number four and number six 5"/25 guns are immediately beyond. A TBD-1 torpedo plane is on the flight deck, taxiing forward after landing, and a F4F-3 fighter is approaching to land.

View on the port side of Lexington (CV-2), looking aft and down through torn flight deck life nettings, showing damage from the aftermost of the two torpedo hits received during the Battle of the Coral Sea, 8 May 1942. This hit was centered at about Frame 85, and blew some of the ship's hull blister plating up and out, as seen at the waterline in this photo.

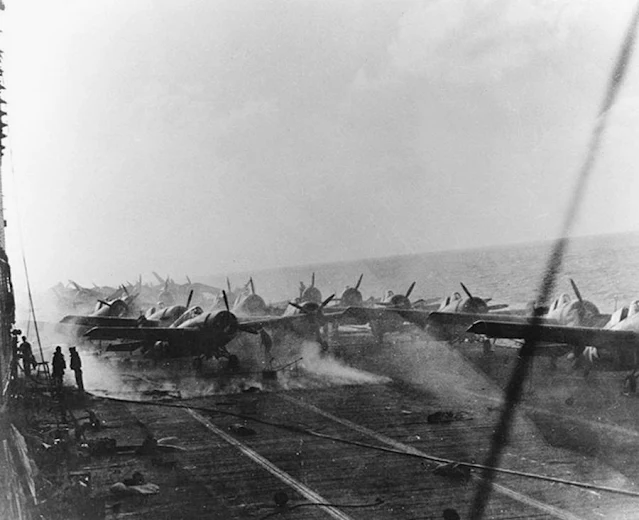

View on the flight deck of Lexington (CV-2), at about 1500 hrs. on 8 May 1942, during the Battle of the Coral Sea. The ship's air group is spotted aft, with Grumman F4F-3 fighters nearest the camera. SBD scout bombers and TBD-1 torpedo planes are parked further aft. Smoke is rising around the after aircraft elevator from fires burning in the hangar. Note fire hose, wheels, propellers, servicing stands and other gear scattered on the flight deck.

View on the flight deck of Lexington (CV-2), at about 1700 hrs. on 8 May 1942, as the crew prepares to abandon ship, after the series of explosions that produced uncontrollable fires and brought her to a stop. Photographed from the ship's island, looking forward, with fire hoses and debris (including an aircraft landing gear wheel) visible on the flight deck. Minneapolis (CA-36) is faintly visible in the center, crossing Lexington's bow.

The USS Lexington being abandoned during the Battle of the Coral Sea.

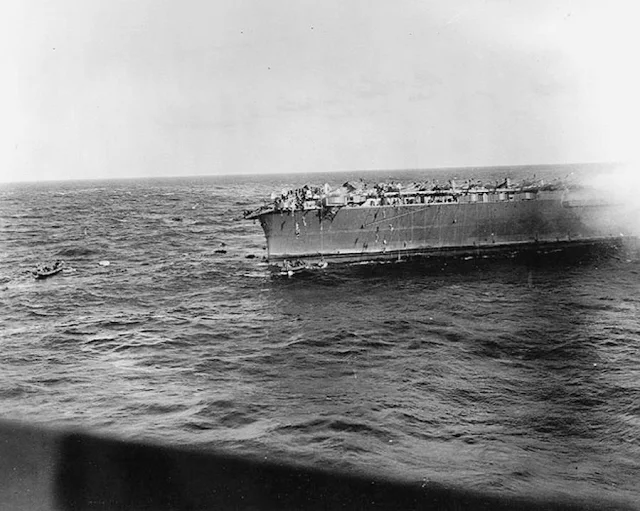

Crewmen sliding down lines at the stern of Lexington (CV-2), as the carrier is abandoned during the afternoon of 8 May 1942. A whaleboat is standing by off the ship's starboard quarter and a motor launch is astern. Note TBD, SBD and F4F aircraft spotted on the flight deck. Identification markings on the torpedo planes and fighters appear to be white, while those on the SBDs appear to be black.

Crewmen abandoning Lexington (CV-2) on 8 May 1942 during the Battle of the Coral Sea. A destroyer and ship's boat are on station to pick up survivors.

A destroyer alongside USS Lexington (CV-2) as the carrier is abandoned during the afternoon of 8 May 1942.

An explosion amidships on USS Lexington (CV-2), while she was being abandoned during the afternoon of 8 May 1942 during the Battle of the Coral Sea. This may be the explosion reported to have taken place at 1727 hrs, which was followed by a "great explosion" aft as stowed torpedo warheads detonated on the hangar deck. Note whaleboat underway in the foreground.

Explosion amidships on Lexington (CV-2), 8 May 1942. This is probably the explosion at 1727 hrs that took place as the carrier's abandonment was nearing its end. Ships standing by include the cruiser Minneapolis (CA-36) and destroyers Morris (DD-417), Anderson (DD-411) and Hammann (DD-412).

Explosion amidships on Lexington (CV-2), 8 May 1942. This is probably the explosion at 1727 hrs that took place as the carrier's abandonment was nearing its end. Ships standing by include two cruisers and several destroyers. Photographed from Portland (CA-33).

A heavy explosion on board Lexington (CV-2) blows an aircraft over her side, 8 May 1942. This is probably the "great explosion" from the detonation of torpedo warheads stowed in the starboard side of the hangar, aft, that took place just after the ship's Commanding Officer, Captain Frederick C. Sherman, left Lexington. At left is the bow of Hammann (DD-412), which was backing away with a load of the carrier's survivors on board.

Battle of the Coral Sea, May 1942. A "mushroom cloud" rises after a heavy explosion on board Lexington (CV-2), 8 May 1942. This is probably the "great explosion" from the detonation of torpedo warheads stowed in the starboard side of the hangar, aft, that followed an explosion amidships at 1727 hrs. Note Yorktown (CV-5) on the horizon in the left center, and destroyer Hammann (DD-412) at the extreme left.

The U.S. Navy aircraft carrier Lexington (CV-2), burning and sinking after her crew abandoned ship during the Battle of Coral Sea, 8 May 1942. Note planes parked aft, where fires have not yet reached.

Survivors of USS Lexington (CV-2) are pulled aboard a cruiser - probably USS Minneapolis (CA-36) - after the carrier was abandoned on the afternoon of 8 May 1942 during the Battle of the Coral Sea. Note the man in the lower part of the photo who is using the cruiser's armor belt as a hand hold.

Confirmed direct hits sustained by Lexington during Battle of the Coral Sea

Lieutenant (Junior Grade) William E. Hall was awarded the Medal of Honor for "extreme courage and conspicuous heroism" while serving as a Pilot of a Scouting Plane in action against Japanese forces in the Battle of the Coral Sea, 7 and 8 May 1942. Contributing to the destruction of the Japanese aircraft carrier Shoho on 7 May, he waged counterattacks the next day on a superior number of enemy planes, shooting down three enemy aircraft. Although Hall was seriously wounded during this mission, he remained in flight and safely landed his plane.

Japanese propaganda postcard of the sinking of Lexington (CV-2).

CAPT Frederick Carl ("Ted") Sherman, USNA 1910, Commanding Officer, USS Lexington (CV-2, 13 June 1940–8 May 1942.

World War 2 In Review

USS Lexington (CV-2): American Aircraft Carrier

No comments:

Post a Comment
